Template Class used to house colors for ramCanvas objects. More...
#include <MRcolorTpl.hpp>
Classes | |
| class | cs2dFltPalArg |
| Compute a color for a point in \(\mathbb{R}^2\) using a continuous color scheme for the phase angle. More... | |
| class | cs2dIdxPalArg |
| Compute a color for a point in \(\mathbb{R}^2\) using a discrete color scheme for the phase angle. More... | |
| class | cs2dRichardson |
| Compute a color from Richardson's 2D complex number coloring scheme. More... | |
| class | cs2dThaller_tpl |
| Template for Thaller 2D color schemes. More... | |
| class | csBin_tpl |
| Binary color scheme. More... | |
| class | csCB_tpl |
| Template for Color Brewer 2 variable sized pallets. More... | |
| class | csCC_tpl |
| Template providing RGB color cube gradiant color schemes. More... | |
| class | csCubeHelix_tpl |
| Compute a color from Dave Green's cubehelix scheme. More... | |
| class | csFP_tpl |
| Template for fixed size pallets. More... | |
| class | csHSLh_tpl |
| Template for HSL color schemes. More... | |
| class | csPLY_tpl |
| Compute a color from a polynomial space curve in the RGB color space. More... | |
| class | csVarToFixed_tpl |
| Wrapper for Color Brewer 2 variable sized pallet template to produce a simple fixed color scheme with a numC member. More... | |
| class | csWS_tpl |
| Template for web safe 216 pallets. More... | |
Public Enums Constants | |
| enum class | cornerColorEnum { BLACK , RED , GREEN , BLUE , YELLOW , CYAN , MAGENTA , WHITE } |
| Colors at the corners of the RGB color cube. More... | |
| enum class | colorSpaceEnum { RGB , HSL , HSV , LAB , XYZ , LCH , NONE } |
| Color spaces. More... | |
| enum class | cmfInterpolationEnum { FLOOR , CEILING , NEAREST , LINEAR , BUMP } |
| Interpolation methods for emperical color matching functions. More... | |
Public type related types – meta-types? ;) | |
| typedef colorTpl | colorType |
| This object type. | |
| typedef colorType * | colorPtrType |
| Pointer to colorTpl. | |
| typedef colorType & | colorRefType |
| Reference to colorTpl) | |
| typedef colorType const & | colorCRefType |
| Reference to const colorTpl. | |
| typedef clrChanT | channelType |
| Type for the channels (clrChanT) | |
Public types for std::tuple & std::vector containing clrChanT values | |
| typedef std::tuple< clrChanT, clrChanT, clrChanT, clrChanT > | clrChanTup6 |
| typedef std::tuple< clrChanT, clrChanT, clrChanT, clrChanT > | clrChanTup5 |
| typedef std::tuple< clrChanT, clrChanT, clrChanT, clrChanT > | clrChanTup4 |
| typedef std::tuple< clrChanT, clrChanT, clrChanT > | clrChanTup3 |
| typedef std::tuple< clrChanT, clrChanT > | clrChanTup2 |
| typedef std::tuple< clrChanT > | clrChanTup1 |
| typedef std::vector< clrChanT > | clrChanVec |
Public types for for packed integers. | |
| typedef uint32_t | packed4Cint |
| Used for passing & returning integers with packed 8-bit channels. | |
Public color types related to colorT. | |
These types are used for things like color space computations and sources for setting channels, etc... | |
| typedef colorTpl< double, 3 > | colConDbl3 |
| Used for color space computations. Type identical to colConRGBdbl, but might not be RGB. | |
| typedef colorTpl< double, 3 > | colConRGBdbl |
| RGB with double channels. | |
| typedef colorTpl< double, 4 > | colConRGBAdbl |
| RGBA with double channels. | |
| typedef colorTpl< uint8_t, 3 > | colConRGBbyte |
| RGB with uint8_t channels. | |
| typedef colorTpl< uint8_t, 4 > | colConRGBAbyte |
| RGBA with uint8_t channels. | |
| typedef colorTpl< double, numChan > | colConALLdbl |
| Color with the same number of challens as colorT, but with double channels. | |
| typedef colorTpl< uint8_t, numChan > | colConALLbyte |
| Color with the same number of challens as colorT, but with uint8_t channels. | |
Public type for argument passing | |
| typedef std::conditional< ptrIsSmaller, colorCRefType, colorType >::type | colorArgType |
| A type for passing colorTpl objects to functions. | |
2D Color Schemes | |
| template<double cutDepth, double argCuts, double absCuts, bool logAbs> | |
| using | cs2dThallerHSL = cs2dThaller_tpl<1, 0, cutDepth, argCuts, absCuts, logAbs> |
| Compute a color from Bernd Thaller's 2D complex number coloring scheme with HSL. | |
| template<double cutDepth, double argCuts, double absCuts, bool logAbs> | |
| using | cs2dThallerHSVm = cs2dThaller_tpl<0, 1, cutDepth, argCuts, absCuts, logAbs> |
| Compute a color from Bernd Thaller's 2D complex number coloring scheme with HSV and maximum value. | |
| template<double cutDepth, double argCuts, double absCuts, bool logAbs> | |
| using | cs2dThallerHSV = cs2dThaller_tpl<0, 0, cutDepth, argCuts, absCuts, logAbs> |
| Compute a color from Bernd Thaller's 2D complex number coloring scheme with HSV and dynamic value. | |
| template<class csT , class csAT > | |

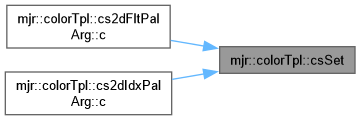

| colorTpl & | csSet (csAT csArg) |
| template<class csT , class csAT > | |
| colorTpl & | csSet (csAT csArg1, csAT csArg2) |
Private Object Data | ||
| union { | ||
| maskType theInt | ||
| clrChanT thePartsA [numChan] | ||
| } | theColor | |
| Holds the color channel data. | ||
Public Constants Related to RGBA channels | |
| static constexpr int | noRGBchanIdx = (redChanIdx < 0) && (greenChanIdx < 0) && (blueChanIdx < 0) && (alphaChanIdx < 0) |
| static constexpr int | redChan = (noRGBchanIdx && numChan > 0 ? 0 : redChanIdx) |
| static constexpr int | greenChan = (noRGBchanIdx && numChan > 1 ? 1 : greenChanIdx) |
| static constexpr int | blueChan = (noRGBchanIdx && numChan > 2 ? 2 : blueChanIdx) |
| static constexpr int | alphaChan = (noRGBchanIdx && numChan > 3 ? 3 : alphaChanIdx) |
Public Constants Related to template paramaters | |
| static constexpr int | bitsPerChan = (int)(sizeof(clrChanT)*CHAR_BIT) |
| Number of bits in clrChanT. | |
| static constexpr int | bitsPerPixel = numChan*bitsPerChan |
| Number of color data bits. | |
| static constexpr bool | chanIsInt = std::is_integral<clrChanT>::value |
| clrChanT is an integral type | |
| static constexpr bool | chanIsFloat = std::is_floating_point<clrChanT>::value |
| clrChanT is a floating pint type | |
| static constexpr bool | chanIsUnsigned = std::is_unsigned<clrChanT>::value |
| clrChanT is an unsigned integral type | |
| static constexpr bool | chanIsByte = std::is_same<clrChanT, uint8_t>::value |
| is clrChanT an 8-bit unsigned int? | |
| static constexpr bool | chanIsDouble = std::is_same<clrChanT, double>::value |
| is clrChanT a double? | |
| static constexpr bool | goodMask = (sizeof(maskType) >= sizeof(clrChanT)*numChan) |
| maskType is big enough | |
| static constexpr bool | perfectMask = (sizeof(maskType) == sizeof(clrChanT)*numChan) |
| maskType is perfectly sized | |
| static constexpr bool | goodArithD = (chanIsFloat || (sizeof(channelArithDType) >= sizeof(clrChanT)*2)) |
| channelArithDType is big enough | |
| static constexpr bool | goodArithSP = (chanIsFloat || (sizeof(channelArithSPType) >= sizeof(clrChanT)*2)) |
| channelArithSPType is big enough | |
| static constexpr bool | goodArithSDP = (chanIsFloat || (sizeof(channelArithSDPType) >= sizeof(clrChanT)*4)) |
| channelArithSDPType is big enough | |
| static constexpr bool | goodArithFlt = (chanIsFloat || (sizeof(channelArithFltType) > sizeof(clrChanT))) |
| channelArithFltType is big enough | |
| static constexpr bool | goodArithLog = (sizeof(channelArithLogType) == sizeof(clrChanT)) |
| channelArithLogType is the right size | |
| static constexpr int | sizeOfColor = (int)(goodMask ? sizeof(maskType) : sizeof(clrChanT)*numChan) |
| Size of this object. | |
| static constexpr bool | ptrIsSmaller = sizeOfColor > (int)sizeof(colorPtrType) |
| This object smaller than a pointer. | |
| static constexpr clrChanT | maxChanVal = (chanIsInt ? std::numeric_limits<clrChanT>::max() : 1) |
| maximum value for a channel | |
| static constexpr clrChanT | minChanVal = (chanIsInt ? std::numeric_limits<clrChanT>::min() : 0) |
| maximum value for a channel | |
| static constexpr clrChanT | meanChanVal = (maxChanVal-minChanVal)/2 |
| middle value for a channel | |
| static constexpr maskType | maskAllOne = ~(static_cast<maskType>(0)) |
| mask value all ones | |
| static constexpr maskType | maskAllZero = static_cast<maskType>(0) |
| mask value all zeros | |
| static constexpr int | channelCount = numChan |
| Number of channels. | |
Color Scheme Constants | |
| static constexpr csIntType | chanStepMax = (chanIsInt ? static_cast<csIntType>(maxChanVal) : std::numeric_limits<uint32_t>::max()) |
| Finite "steps" for a color scheme: [0, chanStepMax]. | |
| static constexpr int | minWavelength = 360 |
| Minimum wavelength for wavelength conversion. | |
| static constexpr int | maxWavelength = 830 |
| Maximum wavelength for wavelength conversion. | |
Default RGB Luminescence Weights | |
| static constexpr double | RGBluminanceWeightR = 0.2126 |
| static constexpr double | RGBluminanceWeightG = 0.7152 |
| static constexpr double | RGBluminanceWeightB = 0.0722 |
Private utility functions | |
| double | hslHelperVal (double n1, double n2, double hue) |
| This is a helper function for setRGBfromColorSpace. | |
| void | setChansToMean () |
| Set all channels to meanChanVal. | |
| void | setChansToMin () |
| Set all channels to minChanVal. | |
| void | setChansToMax () |
| Set all channels to maxChanVal. | |
| colorTpl & | setColorFromString (std::string colorString) |
| Sets the current color based upon the contents of the given std::string. | |
| clrChanT | convertByteToChan (uint8_t cVal) const |
| Convert a uint8_t to a clrChanT (for integral clrChanT) | |
| clrChanT | convertByteToChan (uint8_t cVal) const |
| Convert a uint8_t to a clrChanT (for floating point clrChanT) | |
| clrChanT | convertHexStringToChan (std::string hexString) const |
| Convert hex CString to clrChanT (for integral clrChanT) | |
| clrChanT | convertHexStringToChan (std::string hexString) const |
| Convert hex CString to clrChanT (for floating point clrChanT) | |
| uint8_t | convertChanToByte (clrChanT cVal) const |
| Convert a clrChanT to a uint8_t (for floating point clrChanT) | |
| uint8_t | convertChanToByte (clrChanT cVal) const |
| Convert a clrChanT to a uint8_t (for integral clrChanT) | |
| clrChanT | convertDoubleToChan (double cVal) const |
| Convert a double to a clrChanT. | |
| double | convertChanToDouble (clrChanT cVal) const |
| Convert a clrChanT to a double. | |
| maskType | getMaskNC () const |
| Return the mask value. | |
| void | setMaskNC (maskType aMask) |
| Set the mask value. | |
Constructors: C++ Utility | |
| colorTpl () | |
| The no arg constructor is a noop so we don't needlessly initialize millions of pixels – compiler warnings are expected. | |
| colorTpl (const colorType &aColor) | |
| Copy constructor (heavily used for assignment in the ramCanvas library). | |
| colorTpl (std::initializer_list< clrChanT > cVals) | |
| Initializer list. | |
Constructors: RGB | |
These all use setChansRGB or setChansRGBA internally; however, these constructors will set any unspecified channels to min. | |
| colorTpl (clrChanT r, clrChanT g, clrChanT b, clrChanT a) | |
| colorTpl (clrChanT r, clrChanT g, clrChanT b) | |
Constructors: Conversions | |
These are all guarnteed to set all channels of the object. | |
| colorTpl (clrChanT cVal) | |
| Uses setChans() to set all channels to the given value. | |
| colorTpl (cornerColorEnum cornerColor) | |

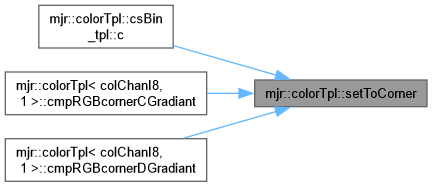

| Uses the setToCorner() method to set the initialize the object. | |
| colorTpl (std::string colorString) | |
| Uses the setColorFromString() method to set the initialize the object. | |
| colorTpl (const char *colorCString) | |
| Uses the setColorFromString() method to set the initialize the object. | |
Destructor | |
| ~colorTpl () | |
| The destructor for this class is a no-op. | |
Utility Methods | |
| colorTpl & | copy (colorArgType aCol) |
| Copy the contents of the given color object into the current object. | |
Named Channel Access | |
Provides access to the specified color channel value with compile time index check.
| |

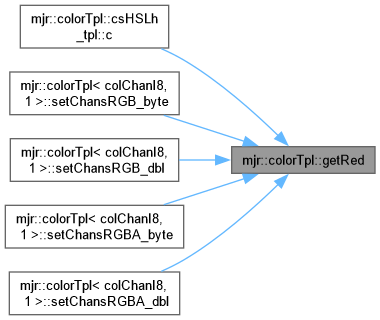

| clrChanT | getRed () const |

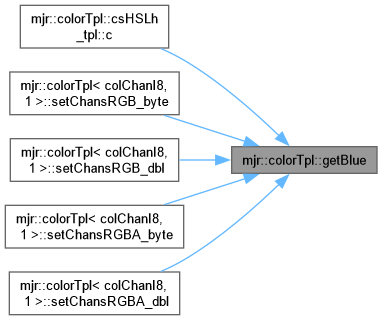

| clrChanT | getBlue () const |
| clrChanT | getGreen () const |

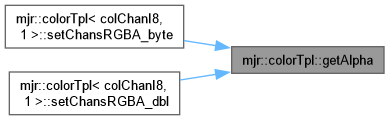

| clrChanT | getAlpha () const |
| double | getRed_dbl () const |
| double | getGreen_dbl () const |
| double | getBlue_dbl () const |
| double | getAlpha_dbl () const |
| uint8_t | getRed_byte () const |
| uint8_t | getGreen_byte () const |
| uint8_t | getBlue_byte () const |
| uint8_t | getAlpha_byte () const |
| clrChanT | getC0 () const |

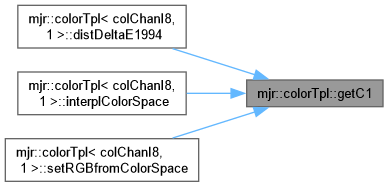

| clrChanT | getC1 () const |
| clrChanT | getC2 () const |
| clrChanT | getC3 () const |
| double | getC0_dbl () const |
| double | getC1_dbl () const |
| double | getC2_dbl () const |
| double | getC3_dbl () const |
| uint8_t | getC0_byte () const |
| uint8_t | getC1_byte () const |
| uint8_t | getC2_byte () const |
| uint8_t | getC3_byte () const |
Indexed Channel Access | |
Provides access to an indexed color channel value with run time index check. The channels are 0 indexed.
| |

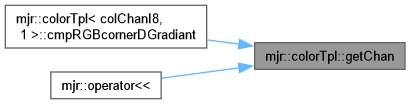

| clrChanT | getChan (int chan) const |
| double | getChan_dbl (int chan) const |
| uint8_t | getChan_byte (int chan) const |
Set Named Channel Value | |
Provides access to the specified color channel value with compile time index check.
| |
| colorTpl & | setC0 (clrChanT cVal) |
| colorTpl & | setC1 (clrChanT cVal) |
| colorTpl & | setC2 (clrChanT cVal) |
| colorTpl & | setC3 (clrChanT cVal) |
| colorTpl & | setC0_dbl (double cVal) |
| colorTpl & | setC1_dbl (double cVal) |
| colorTpl & | setC2_dbl (double cVal) |
| colorTpl & | setC3_dbl (double cVal) |
| colorTpl & | setC0_byte (uint8_t cVal) |
| colorTpl & | setC1_byte (uint8_t cVal) |
| colorTpl & | setC2_byte (uint8_t cVal) |
| colorTpl & | setC3_byte (uint8_t cVal) |
| colorTpl & | setRed (clrChanT cVal) |
| colorTpl & | setBlue (clrChanT cVal) |
| colorTpl & | setGreen (clrChanT cVal) |
| colorTpl & | setAlpha (clrChanT cVal) |
| colorTpl & | setRed_dbl (double cVal) |
| colorTpl & | setGreen_dbl (double cVal) |
| colorTpl & | setBlue_dbl (double cVal) |
| colorTpl & | setAlpha_dbl (double cVal) |
| colorTpl & | setRed_byte (uint8_t cVal) |
| colorTpl & | setGreen_byte (uint8_t cVal) |
| colorTpl & | setBlue_byte (uint8_t cVal) |
| colorTpl & | setAlpha_byte (uint8_t cVal) |
| colorTpl & | setChansRGBA (clrChanT r, clrChanT g, clrChanT b, clrChanT a) |
| colorTpl & | setChansRGB (clrChanT r, clrChanT g, clrChanT b) |
| colorTpl & | setChansRGBA_dbl (double r, double g, double b, double a) |

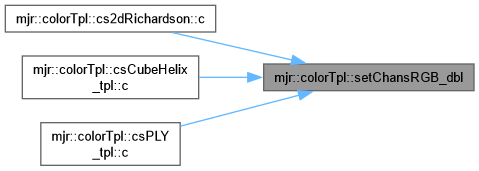

| colorTpl & | setChansRGB_dbl (double r, double g, double b) |
| colorTpl & | setChansRGBA_byte (uint8_t r, uint8_t g, uint8_t b, uint8_t a) |
| colorTpl & | setChansRGB_byte (uint8_t r, uint8_t g, uint8_t b) |
| colorTpl & | setChansRGBA (clrChanTup4 chanValues) |
| colorTpl & | setChansRGB (clrChanTup3 chanValues) |
Canonical Color Types. | |
Provide conversions to/from canonical color types. | |
| colorTpl & | setChans_dbl (colConALLdbl dblColor) |
| colorTpl & | setChans_byte (colConALLbyte byteColor) |
| colorTpl & | setChansRGBA_dbl (colConRGBAdbl dblColor) |
| colorTpl & | setChansRGB_dbl (colConRGBdbl dblColor) |
| colorTpl & | setChansRGBA_byte (colConRGBAbyte byteColor) |
| colorTpl & | setChansRGB_byte (colConRGBbyte byteColor) |
| colConALLdbl | getColCon_dbl () |
| colConALLbyte | getColCon_byte () |
| colConRGBAdbl | getColConRGBA_dbl () |
| colConRGBdbl | getColConRGB_dbl () |
| colConRGBAbyte | getColConRGBA_byte () |
| colConRGBbyte | getColConRGB_byte () |
Best guess for named channel index. | |
These are used when we wish to get the named channel index, but the current color might not have specified an approprate value. | |
| int | bestRedChan () |
| int | bestGreenChan () |
| int | bestBlueChan () |
| int | bestAlphaChan () |
Setting a single Channel by Index | |
Provides access to an indexed color channel value with run time index check. The channels are 0 indexed.
| |
| colorTpl & | setChanToMax (int chan) |
| colorTpl & | setChanToMin (int chan) |
| colorTpl & | setChan (int chan, clrChanT cVal) |
| colorTpl & | setChan_dbl (int chan, double cVal) |
| colorTpl & | setChan_byte (int chan, uint8_t cVal) |
Set/Get Single Channel values with no index checks. | |
| |

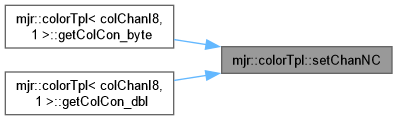

| colorTpl & | setChanNC (int chan, clrChanT cVal) |
| Sets the specified color channel value with no index check. | |

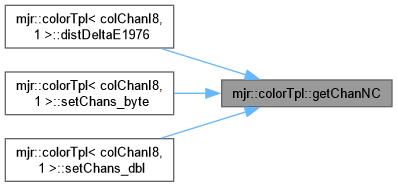

| clrChanT | getChanNC (int chan) const |
| Provides access to an specified color channel value with no index check. | |
Set All Channel Values To One Value | |
Sets all components of the current object from to cVal.
| |
| colorTpl & | setChans (clrChanT cVal) |
| colorTpl & | setChans_dbl (double cVal) |
| colorTpl & | setChans_byte (uint8_t cVal) |
Set Channel Value(s) with clrChanT values | |
| colorTpl & | setChans (clrChanTup4 chanValues) |
| Sets the first four channels current object. | |
| colorTpl & | setChans (clrChanTup3 chanValues) |
| Sets the first three channels current object. | |
| colorTpl & | setChans (clrChanVec &chanValues) |
| This function sets color channels from the data in a std::vector. | |
| colorTpl & | setChans (std::string colorHexString, bool clearUndefinedChannels=false) |
| Sets the current color based upon the contents of the given color hex string. | |
Set To Special Colors (RGB Corners) | |
While the assumed color model is RGB, these functions are generalized beyond RGB in that non-RGB channels are uniformly, and usefully, manipulated. For example, setToBlack and setToWhite functions set all channels to minimum and maximum respectively – both reasonable definitions for "black" and "white" in many situations. The "primary" colors (red, blue, and green) set all non-RGB channels to minimum, and the "secondary" colors (cyan, yellow, and magenta) set all non-RGB channels to max. The reason for this difference in behavior on non-RGB channels between primary and secondary colors is two fold: 1) It allows the setTo*() functions to complete their work using no more than two assignment statements for channel objects with integer channels and good masks. 2) It makes each secondary an inverse (a logical NOT for integer colors) color from a primary across all channels. Note that the other functions in this group end with a call to one of the setTo*() functions. | |
| colorTpl & | setToBlack () |
| colorTpl & | setToWhite () |
| colorTpl & | setToRed () |
| colorTpl & | setToBlue () |
| colorTpl & | setToGreen () |
| colorTpl & | setToCyan () |
| colorTpl & | setToYellow () |
| colorTpl & | setToMagenta () |
| colorTpl & | setToHalf () |
| colorTpl & | setToCorner (char cornerColor) |
| Set the current color based upon the single character given – 0==black, R, G, B, M, C, Y, W/1==white). | |
| colorTpl & | setToCorner (cornerColorEnum cornerColor) |
| Set the color to the given corner color. | |
| colorTpl & | setToCorner (std::string cornerColor) |
| Set the color to the named corner color. | |
Color Setting Methods via Logically Packed Integers. | |
By "logically" we mean as if the integers were written on paper left to right with MSB on the left – the same way they are "written" in C++ source code. ex: 0x11223344u has 11 as the most significant byte, but it might be placed in memory differently. These functions are very usefully for unpacking integers derived from integer literals in C++ code. setRGBfromLogPackIntARGB() is heavily used for color schemes. | |
| colorTpl & | setRGBAfromLogPackIntGen (packed4Cint anInt, uint8_t rIdx, uint8_t gIdx, uint8_t bIdx, uint8_t aIdx) |
| Set the color based upon the bytes of the given integer ordered from LSB to MSB. | |
| colorTpl & | setRGBfromLogPackIntGen (packed4Cint anInt, uint8_t rIdx, uint8_t gIdx, uint8_t bIdx) |
| Just like setRGBAfromLogPackIntGen, but no A. | |
| colorTpl & | setRGBAfromLogPackIntARGB (packed4Cint anInt) |
| colorTpl & | setRGBfromLogPackIntARGB (packed4Cint anInt) |
| colorTpl & | setRGBAfromLogPackIntRGBA (packed4Cint anInt) |
| colorTpl & | setRGBfromLogPackIntRGBA (packed4Cint anInt) |
| colorTpl & | setRGBAfromLogPackIntABGR (packed4Cint anInt) |
| colorTpl & | setRGBfromLogPackIntABGR (packed4Cint anInt) |
| colorTpl & | setRGBAfromLogPackIntBGRA (packed4Cint anInt) |
| colorTpl & | setRGBfromLogPackIntBGRA (packed4Cint anInt) |
| colorTpl & | setRGBAfromLogPackIntABRG (packed4Cint anInt) |
| colorTpl & | setRGBfromLogPackIntABRG (packed4Cint anInt) |
TGA Height Maps for POVray | |
| colorTpl & | setRGBcmpGreyTGA16bit (uint32_t tga16val) |
| Computes a 24-bit truecolor value intended for use in producing 16-bit greyscale TGA. | |
| colorTpl & | setRGBcmpGreyTGA24bit (uint32_t tga24val) |
| Computes a 24-bit truecolor value intended for use in producing 24-bit greyscale TGA. | |
Color Setting Methods via Physically Packed Integers. | |
By "physically" we mean as the bytes are physically ordered in RAM – which may differ from how we write them on paper or in C++ code. | |
| colorTpl & | setRGBAfromPackIntGen (packed4Cint anInt, uint8_t rIdx, uint8_t gIdx, uint8_t bIdx, uint8_t aIdx) |
| Set the color based upon the bytes of the given integer ordered as in RAM. | |
| colorTpl & | setRGBfromPackIntGen (packed4Cint anInt, uint8_t rIdx, uint8_t gIdx, uint8_t bIdx) |
| Just like setRGBAfromPackIntGen, but no A. | |
Setting Colors Based Upon Other Color Spaces | |
Other Colorspaces. The most common use case is to think of the image as holding RGB color data, and these functions are designed with that idea in mind. Note that alternate colorspaces computations all take place with double floating point values. Various other tools are also available for manipulating colors in other colorspaces (see: interplColorSpace() and rgb2colorSpace() for example).. See the colorSpaceEnum for details regarding supported colorspaces. | |
| colorTpl & | setRGBfromUnitHSV (double H, double S, double V) |
| Set the color indicated by the given HSV values. | |
| colorTpl & | setRGBfromUnitHSL (double H, double S, double L) |
| Set the color indicated by the given HSL values. | |
| colorTpl & | setRGBfromColorSpace (colorSpaceEnum space, double inCh1, double inCh2, double inCh3) |
| Set the color indicated by the color space and values. | |
| colorTpl & | setRGBfromColorSpace (colorSpaceEnum space, colConDbl3 inColor) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
Setting Colors Based Upon Spectral Color | |
| colorTpl & | setRGBfromWavelengthCM (double wavelength, cmfInterpolationEnum interpMethod=cmfInterpolationEnum::LINEAR) |
| Set the color indicated by the given wavelength. | |
| colorTpl & | setRGBfromWavelengthLA (double wavelength) |
| Set the color indicated by the given wavelength. | |
Color Ramps, Gradients, Interpolation, Binary Thresholds. | |
Members in this section form the computational foundation for many of the named color schemes found in this class. | |
| colorTpl & | cmpGradiant (csFltType csX, std::vector< csFltType > const &anchors, std::vector< colorType > const &colors) |
| Convert a double to a color value based upon a color ramp passing through the given sequence of corner colors at the given anchor points. | |
| colorTpl & | cmpGradiant (csFltType csX, std::vector< colorType > const &colors) |
| Identical to the other cmpGradiant() function except that equidistant anchors are automatically generated on [0, 1] for the given colors array. | |
| colorTpl & | cmpGradiant (csFltType csX, csIntType numColors, const packed4Cint *colors) |
| Identical to the other equidistant cmpGradiant() function except that this one works on just the RGB channels and takes an array of packed integers. | |
| colorTpl & | cmpRGBcornerCGradiant (csFltType csX, const char *cornerColors) |
| This is simply a version of cmpRGBcornerCGradiant() that computes the length of the final argument as a C-string. | |
| colorTpl & | cmpRGBcornerDGradiant (csIntType csIdx, const char *cornerColors) |
| This is simply a version of cmpRGBcornerDGradiant() that computes the length of the final argument as a C-string. | |
| template<typename ccT > | |
| colorTpl & | cmpRGBcornerDGradiant (csIntType csIdx, csIntType numColors, const ccT *cornerColors) |
| Color value based upon a color ramp passing through the given sequence of corner colors at equal intervals along [0, (mjr::colorTpl::chanStepMax * (numColors - 1) + 1)]. | |
| template<typename ccT > | |
| colorTpl & | cmpRGBcornerCGradiant (csFltType csX, csIntType numColors, const ccT *cornerColors) |
| Color value based upon a color ramp passing through the given sequence of corner colors at equal intervals along [0.0, 1.0]. | |
| colorTpl & | interplColorSpace (colorSpaceEnum space, double aDouble, colorArgType col1, colorArgType col2) |
| Set the current color to a value linearly interpolated between the two given colors. | |
| clrChanT | channelArithFlt2clrChan (channelArithFltType flt) |
| Convert a channelArithFltType value into a clrChanT value. | |
| colorTpl & | wMean (channelArithFltType w1, channelArithFltType w2, channelArithFltType w3, channelArithFltType w4, colorArgType col1, colorArgType col2, colorArgType col3, colorArgType col4) |
| Compute the weighted mean of the given colors. | |
| colorTpl & | wMean (channelArithFltType w1, channelArithFltType w2, channelArithFltType w3, colorArgType col1, colorArgType col2, colorArgType col3) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| colorTpl & | wMean (channelArithFltType w1, channelArithFltType w2, colorArgType col1, colorArgType col2) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| colorTpl & | uMean (channelArithFltType w1, channelArithFltType w2, channelArithFltType w3, colorArgType col1, colorArgType col2, colorArgType col3, colorArgType col4) |
| Compute the unit weighted mean of the given colors – like wMean(), but last weight is computed such that weights sum to 1.0. | |
| colorTpl & | uMean (channelArithFltType w1, channelArithFltType w2, colorArgType col1, colorArgType col2, colorArgType col3) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| colorTpl & | uMean (channelArithFltType w1, colorArgType col1, colorArgType col2) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| colorTpl & | linearInterpolate (double aDouble, colorArgType col1, colorArgType col2) |
| Set the current color to a value linearly interpolated between the two given colors. | |
| colorTpl & | linearInterpolateRGB (double aDouble, colorArgType col1, colorArgType col2) |
| Set the RGB channels of the current color to a value linearly interpolated between the two given colors. | |
Logical Operators | |
| colorTpl & | tfrmOr (colorArgType aCol) |
| Performs a logical OR with the current object and the given object and places the value in the current object. | |
| colorTpl & | tfrmOr (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmNor (colorArgType aCol) |
| Performs a logical NOR with the current object and the given object and places the value in the current object. | |
| colorTpl & | tfrmNor (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmAnd (colorArgType aCol) |
| Performs a logical AND with the current object and the given object and places the value in the current object. | |
| colorTpl & | tfrmAnd (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmNand (colorArgType aCol) |
| Performs a logical NAND with the current object and the given object and places the value in the current object. | |
| colorTpl & | tfrmNand (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmXor (colorArgType aCol) |
| Performs a logical EXCLUSIVE OR (XOR) with the current object and the given object and places the value in the current object. | |
| colorTpl & | tfrmXor (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmNxor (colorArgType aCol) |
| Performs a logical NOT EXCLUSIVE OR (NXOR) with the current object and the given object and places the value in the current object. | |
| colorTpl & | tfrmNxor (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmNot (void) |
| Performs logical (bit-wise) negation of current object. | |
| colorTpl & | tfrmNot (void) |
| Template specialization member function differing from the above function only in supported template conditions. | |
Arithmetic Operators | |
| colorTpl & | tfrmSqDiff (colorArgType aCol) |
| Computes the square of the difference for each channel between the given color and the current color object. | |
| colorTpl & | tfrmAbsDiff (colorArgType aCol) |
| Computes the absolute value of the difference for each channel between the given color and the current color object. | |
| colorTpl & | tfrmAdd (colorArgType aCol) |
| Computes the arithmetic sum of the given color and the current one. | |
| colorTpl & | tfrmDiv (colorArgType aCol) |
| Computes the arithmetic division of the current color by the given color. | |
| colorTpl & | tfrmDiv (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmMult (colorArgType aCol) |
| Computes the arithmetic product of the given color and the current one. | |
| colorTpl & | tfrmMultClamp (colorArgType aCol) |
| Computes the product of the given color and the current one. | |
| colorTpl & | tfrmSignDiff (colorArgType aCol) |
| Computes the component wise scaled sign of the difference between the current color and the given one. | |
| colorTpl & | tfrmDiffClamp (colorArgType aCol) |
| Computes the arithmetic difference of the given color from the current one. | |
| colorTpl & | tfrmNegDiffClamp (colorArgType aCol) |
| Computes the negative of the arithmetic difference of the given color from the current one. | |
| colorTpl & | tfrmAddClamp (colorArgType aCol) |
| Computes the arithmetic sum of the given color from the current one. | |
| colorTpl & | tfrmAddDivClamp (colorArgType aCol, colorArgType dCol) |
| Computes the arithmetic sum of the current color and aCol, then divids by dCol. | |
| colorTpl & | tfrmAddDivClamp (colorArgType aCol, colorArgType dCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmDiff (colorArgType aCol) |
| Computes the arithmetic difference of the given color from the current one. | |
| colorTpl & | tfrmMod (colorArgType aCol) |
| Computes the arithmetic modulus of the current by the given one. | |
| colorTpl & | tfrmMod (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmInvert () |
| Transforms the color: r=maxChanVal-r, g=maxChanVal-r, and b=maxChanVal-b. | |
Named Operators | |
| colorTpl & | tfrmPow (double p) |
| Power: c=maxChanVal*(c/maxChanVal)^p. | |
| colorTpl & | tfrmLn1 () |
| Adds 1.0 and takes the natural logarithm of each channel. | |
| colorTpl & | tfrmLn1 () |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmLn (double scale) |
| Computes ln(c)*scale for each channel value c. | |
| colorTpl & | tfrmLn (double scale) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmMix (double aDouble, colorArgType tooCol) |
| Linearly interpolate between the current color and the given color (at a point scaled the unit interval). | |
| colorTpl & | tfrmCopy (colorArgType aCol) |
| Copies the given argument into the current color object. | |
| colorTpl & | tfrmMaxI (colorArgType aCol) |
| Makes the current color the maximum of the current color or the given color. | |
| colorTpl & | tfrmMinI (colorArgType aCol) |
| Makes the current color the minimum of the current color or the given color. | |
| colorTpl & | tfrmMax (colorArgType aCol) |
| Makes each component of the current color the maximum of that component and the corresponding component of the given color. | |
| colorTpl & | tfrmMin (colorArgType aCol) |
| Makes each component of the current color the minimum of that component and the corresponding component of the given color. | |
| colorTpl & | tfrmShiftL (colorArgType aCol) |
| The Shift Left Transform modifies the current color. | |
| colorTpl & | tfrmShiftL (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmShiftR (colorArgType aCol) |
| The Shift Right Transform modifies the current color. | |
| colorTpl & | tfrmShiftR (colorArgType aCol) |
| Template specialization member function differing from the above function only in supported template conditions. | |
| colorTpl & | tfrmSaw (colorArgType lowCol, colorArgType highCol) |
| The Saw Transform modifies the current color: C_i = ifelse(ra<=C_i<=rb, C_i, 0) | |
| colorTpl & | tfrmStep (colorArgType lowCol, colorArgType highCol) |
| The Saw Transform modifies the current color: C_i = ifelse(ra<=C_i<=rb, maxChanVal, 0) | |
| colorTpl & | tfrmDiracTot (colorArgType aCol) |
| The DiracTot (total) Transform modifies the current color: Set current color to white if it equals aCol, and black otherwise. | |
| colorTpl & | tfrmDirac (colorArgType aCol) |
| The Dirac Transform modifies the current color: C_i = ifelse(C_i==aCol.C_i, maxChanVal, 0) | |
| colorTpl & | tfrmFuzzyDirac (colorArgType ctrCol, colorArgType radCol) |
| The Fuzzy Dirac Transform modifies the current color: C_i=ifelse(|R-ctrCol.R|<=radCol.R), maxChanVal, 0) | |
| colorTpl & | tfrmMean (colorArgType aCol) |
| Computes the arithmetic mean of the given color and the current one. | |
| colorTpl & | tfrmGmean (colorArgType aCol) |
| Computes the geometric mean of the given color and the current one. | |
| colorTpl & | tfrmGreyScaleRGB (void) |
| Transform the current color by rendering it into a true grey via the same method used by the luminanceRGB() function. | |
Color Reduction Transformations | |
| colorTpl & | tfrmWebSafeRGB () |
| The 216 Palate Web Safe Transform modifies the current color into the closest web safe color from the 216 color web safe pallet. | |
Alternate Color Space Stuff | |
| colConDbl3 | rgb2colorSpace (colorSpaceEnum space) const |
| Compute channels for given color space coordinates for the current color. | |
| std::string | colorSpaceToString (colorSpaceEnum space) |
| Compute channels for given color space coordinates for the current color. | |
Color Transformation Functions | |
| colorTpl & | tfrmLinearGreyLevelScale (double c, double b) |
| The Linear Grey Level Scale transform modifies the current color such that: C_n=c*C_n+b. | |
| colorTpl & | tfrmLinearGreyLevelScaleRGB (double rc, double rb, double gc, double gb, double bc, double bb) |
| The Linear Grey Level Scale transform modifies the current color such that: R=rc*R+rb, G=gc*G+gb, B=bc*B+bb. | |

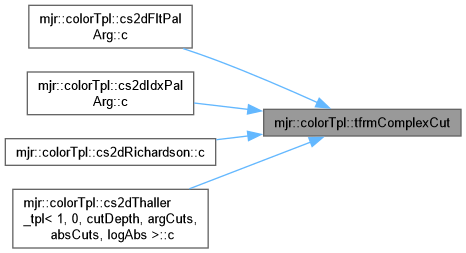

| colorTpl & | tfrmComplexCut (std::complex< double > z, double cutDepth, double argCuts, double absCuts, bool logAbs=true) |
| Perform a tfrmLinearGreyLevelScale based on a complex number. | |
| colorTpl & | tfrmStdPow (double p) |
| The Standard Power Transform modifies the current color such that: C_i = maxChanVal*(C_i / maxChanVal)**p. | |
| colorTpl & | tfrmStdPowRGB (double rp, double gp, double bp) |
| The Standard Power Transform modifies the current color such that: R=maxChanVal*(R/maxChanVal)**rp, B=maxChanVal*(B/maxChanVal)**gp, B=maxChanVal*(B/maxChanVal)**bp. | |
| colorTpl & | tfrmStdPowSqr (void) |
| The Standard Power Transform with p=2. | |
| colorTpl & | tfrmStdPowSqrt (void) |
| The Standard Power Transform with p=1/2. | |
Mathematical Operations On Color(s) | |
Members in this section produce non-color results. i.e. They consume the current, and possibly other colors and arguments, to produce a non-color result. | |
| channelArithFltType | rgb2GreyDotProd (channelArithFltType redWt=RGBluminanceWeightR, channelArithFltType greenWt=RGBluminanceWeightG, channelArithFltType blueWt=RGBluminanceWeightB) const |
| Use the R, G, & B channels to compute a floating point value representing a grey scale. | |
| channelArithFltType | luminanceRGB (void) const |
| Compute the luminance of the current color via the definition given in the ITU-R Recommendation BT.709. | |
| channelArithSPType | intensityRGB (void) const |
| Compute the unscaled intensity (sum of the R, G, & B components) of the current color. | |
| channelArithSPType | intensity () const |
| Compute the sum of the components. | |
| channelArithFltType | intensityScaledRGB () const |
| Compute the scaled intensity (sum of the first three components divided by the maximum intensity possible) of the current color. | |
| channelArithFltType | intensityScaled () const |
| Compute the scaled intensity (sum of the components divided by the maximum intensity possible) of the current color. | |
| clrChanT | getMaxC () const |
| Returns the value of the largest component. | |
| clrChanT | getMinC () const |
| Returns the value of the smallest component. | |
| clrChanT | getMaxRGB () const |
| Returns the value of the largest component from R, G, and B. | |
| clrChanT | getMinRGB () const |
| Returns the value of the smallest component from R, G, and B. | |
| channelArithFltType | dotProd (colorArgType aColor) const |
| Compute the dot product between the current color and the given color. | |
| channelArithFltType | distHypot (colorArgType aColor) const |
| Distance between current color and given one (sum squares of channel differences – Euclidean distance squared). | |
| channelArithSPType | distSumAbs (colorArgType aColor) const |
| Distance between current color and given one (sum of absolute channel differences). | |
| channelArithSPType | distMaxAbs (colorArgType aColor) const |
| Distance between current color and given one (maximum of absolute value of channel differences). | |
| double | distDeltaE1976 (colorArgType aColor) const |
| LAB Delta E* distance between current color and given one. | |
| double | distDeltaE1994 (colorArgType aColor) const |
| LAB Delta E* 1994 (graphic arts) distance between current color and given one. | |
| bool | isClose (colorArgType aColor, clrChanT epsilon) const |
| Returns non-zero if the current color is close to aColor (the maximum delta between any two channels is less than or equal to epsilon). | |
| bool | isCloseRGB (colorArgType aColor, clrChanT epsilon) const |
| Like isClose(), but only checks the R, G, & B channels. | |
| bool | isEqual (colorArgType aColor) const |
| Returns non-zero if the current color is precicely equal to aColor. | |
| bool | isEqualRGB (colorArgType aColor) const |
| Like isEqual(), but only checks the R, G, & B channels. | |
| bool | isNotEqual (colorArgType aColor) const |
| Returns non-zero if the given color is logically NOT the same as the current color. | |
| bool | isBlack () |
| Returns non-zero if the given color is black (all componnets are zero) | |
| bool | isBlackRGB () const |
| LIke isBlack(), but only checks the R, G, & B channels. | |
Channel Clipping Functions | |
| template<typename iT > requires (std::same_as<iT, clrChanT> || std::same_as<iT, channelArithDType> || std::same_as<iT, channelArithSPType> || std::same_as<iT, channelArithSDPType> || std::same_as<iT, channelArithLogType>) | |
| clrChanT | clampTop (iT arithValue) |
| Clamp a value to (infinity, maxChanVal]. | |
| template<typename iT > requires (std::same_as<iT, clrChanT> || std::same_as<iT, channelArithDType> || std::same_as<iT, channelArithSPType> || std::same_as<iT, channelArithSDPType> || std::same_as<iT, channelArithLogType>) | |
| clrChanT | clampBot (iT arithValue) |
| Clamp a value to [minChanVal, infinity). | |
| template<typename iT > requires (std::same_as<iT, clrChanT> || std::same_as<iT, channelArithDType> || std::same_as<iT, channelArithSPType> || std::same_as<iT, channelArithSDPType> || std::same_as<iT, channelArithLogType>) | |
| clrChanT | clampAll (iT arithValue) |
| Clamp a value to [minChanVal, maxChanVal]. | |
Detailed Description
requires ((numChan>0) && // Must have at least 1 chan (std::is_unsigned<clrChanT>::value || std::is_floating_point<clrChanT>::value) && // unsigned integral or floating point (std::is_floating_point<clrChanT>::value || (sizeof(clrChanT) >= 1)) && // If clrChanT int, then must be >= 1 char size (redChanIdx < numChan) && (blueChanIdx < numChan) && (greenChanIdx < numChan) && (alphaChanIdx < numChan) && (((blueChanIdx < 0) && (redChanIdx < 0) && (greenChanIdx < 0)) || ((blueChanIdx >= 0) && (redChanIdx >= 0) && (greenChanIdx >= 0))) && // R, G, & B all non-negative or all negative ((alphaChanIdx < 0) || (redChanIdx >= 0)) && // If A is non-negative, then all non-negative ((redChanIdx < 0) || ((redChanIdx != greenChanIdx) && (redChanIdx != blueChanIdx) && (redChanIdx != alphaChanIdx) && (greenChanIdx != blueChanIdx) && (greenChanIdx != alphaChanIdx) && (blueChanIdx != alphaChanIdx))))
class mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >
Template Class used to house colors for ramCanvas objects.
This template provides a rich API for color management, and may be used to store colors with a wide range of channel depth and count. This class is intended to be a "small concrete" class (as defined by Bjarne Stroustrup in "The C++ Programming Language"). That is to say, it is intended for use as a "fundamental" type for tools requiring a space efficient and high performance set of concrete objects representing colors. The canonical example is representing an image as a very large, rectangular array of colors.
- Size efficiency
While this class supports large channel counts and very deep channels, it is best optimized for colors that take require no more RAM space than the largest hardware supported integer. This is because the library uses an integer to cover color channel array in RAM to make memory operations faster. With a compiler supporting ISO C++, this object should take no more than the maximum of sizeof(clrChanT)*numChan or the mask used to cover the data. More detail on the "mask" is provided later in the section "Memory Layout and Performance".
- Passing colors as function arguments
The most common use cases are 24-bit RGB, 32-bit RGBA, and greyscale up to 64-bits deep. All of these types are smaller than a 64-bit pointer, so it is almost always better to pass these values around by value. That said, some types are quite large – an RGBA image with 64-bit floating point channels requires 256 bits of RAM. For these larger color objects, it is more efficient to pass them by reference. Within the library, some care is taken to adapt to the size of the color object, and pass objects to functions by the most efficient means (value or const reference). The class provides a type the end user can employ to use this same strategy: colorArgType.
- Memory Layout and Performance
Within this object an integer mask and an array of numChan clrCompT are placed into a union – and thus are stacked upon each other in memory. When an integer type exists that can cover the entire channel array without wasting too much space, we can achieve serious performance gains. The trick is finding an integer big enough, but not so big it wastes space. Big enough means it is at least sizeof(clrChanT)*numChan chars long. The "not too big" constraint is more flexible, and I have elected to make a covering mask only if we waste no more than 1/4 of the RAM for the mask value. Examples:
- An RGBA color with 8-bit channels (32-bits total) is covered by a uint32_t with no lost space.
- An RGB color with 8-bit canonical (24-bits total) is also covered with a single uint32_t. One byte per pixel is wasted – i.e. 25% of the space.
- A 5 channel color with 8-bit channels (40-bits total) is NOT covered by a uint64_t as it would lead to almost 50% wasted space.
- A 6 channel color with 8-bit channels (48-bits total) is would be covered by a uint64_t – a 25% waste of space.
When we can't cover the channel array, the mask type will be set to a uint8_t to avoid any alignment issues with the union.
Some common diagrams of common cases might help:
2222222222222222 Cover: 16-bits 11111111 1x8 Waste 1/2 => No Cover 1111111122222222 2x8 Waste 0/2 => Cover with 16-bits 44444444444444444444444444444444 Cover: 32-bits 111111112222222233333333 3x8 Waste 1/4 => Cover with 32-bits 11111111222222223333333344444444 4x8 Waste 0/4 => Cover with 32-bits 8888888888888888888888888888888888888888888888888888888888888888 1111111122222222333333334444444455555555 5x8 Waste 3/8 => No cover 111111112222222233333333444444445555555566666666 6x8 Waste 2/8 => Cover with 64-bits 111111111111111122222222222222223333333333333333 3x16 Waste 2/8 => Cover with 64-bits FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF 1111111122222222333333334444444455555555666666667777777788888888999999990000000011111111 11x8 Waste 5/16 => No Cover 111111112222222233333333444444445555555566666666777777778888888899999999000000001111111122222222 12x8 Waste 4/16 => Cover with uint128_t 11111111111111112222222222222222333333333333333344444444444444445555555555555555 5x16 Waste 6/16 == No Cover 111111111111111122222222222222223333333333333333444444444444444455555555555555556666666666666666 6x16 Waste 4/16 => Cover with uint128_t 111111111111111111111111111111112222222222222222222222222222222233333333333333333333333333333333 3x32 Waste 4/16 => Cover with uint128_t
- Usage
Several methods are provided that access and modify the internal color represented by a color object. In most cases, methods that modify the color object state return a reference to the object after the change. This provides the ability to use the value returned by such a function in the expression in which it appears. So, for example, it is not necessary to use two statements to change a color object's value and then use it in a drawing function. As another example, this provides the ability to do "method chaining" like so: aColor.setToRed().setToBlack() – which will lead to aColor being black. The obvious potential performance impact of returning unused references is generally optimized away by modern compilers.
Several methods are provided that transform the color object as a whole. For example, methods are provided to compute component-wise linear histogram transformations. Note that transformation methods are not provided to transform just one component of an object or a range of components. The philosophy is that the class provides methods that treat the color object as a whole and not methods that operate on single components. Just as we don't have a function to add the second half of two integers together – integers are one "thingy" and so are colors. :)
- Construction
Several constructors are provided. All in all, the goal is to make it easy to construct color objects with a specified color.
|--------------------------------+---------------------+----------------------------------------|
| Type | Member Helper | Cast Application |
|--------------------------------+---------------------+----------------------------------------|
| colorT | copy | |
| four clrChanT | setChans | |
| three clrChanT | setChans | |
| two clrChanT | setChans | |
| one clrChanT | setChans | drawPoint(x, y, 128); |
| Named Corner Colors via string | setColorFromString | drawPoint(x, y, "Red"); |
| Web hex string | setColorFromString | drawPoint(x, y, "#FF0000"); |
| Extended web hex string | setColorFromString | drawPoint(x, y, "##FFFF00000000"); |
| Single character string | setColorFromString | drawPoint(x, y, "R"); |
| Named Corner Colors via ENUM | setToCorner | drawPoint(x, y, cornerColorEnum::RED); |
|--------------------------------+---------------------+----------------------------------------|
- Template Parameters
-
clrChanT Type to contain the channel information. This type should be a unsigned integral type, a float, or double. numChan The number of channels this color will have. Common choices are 1 for greyscale, 3 for RGB, and 4 for RGBA. redChanIdx Index for the Red channel. -1 indicates no Red chan. blueChanIdx Index for the Blue channel. -1 indicates no Red channel. greenChanIdx Index for the Green channel. -1 indicates no Red channel. alphaChanIdx Index for the Alpha channel. -1 indicates no Red channel. If redChanIdx, blueChanIdx, greenChanIdx, & alphaChanIdx are all -1, then they will be assigned to channels 0, 1, 2, & 3 when numChan is >= 4. If they are all negative and numChan == 3, then alphaChanIdx won't be assigned, but red, blue, and green will be.
Definition at line 209 of file MRcolorTpl.hpp.
Member Typedef Documentation
◆ colorType
| colorTpl mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colorType |
This object type.
Definition at line 217 of file MRcolorTpl.hpp.
◆ colorPtrType
| colorType* mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colorPtrType |
Pointer to colorTpl.
Definition at line 219 of file MRcolorTpl.hpp.
◆ colorRefType
| colorType& mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colorRefType |
Reference to colorTpl)
Definition at line 221 of file MRcolorTpl.hpp.
◆ colorCRefType
| colorType const& mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colorCRefType |
Reference to const colorTpl.
Definition at line 223 of file MRcolorTpl.hpp.
◆ channelType
| clrChanT mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::channelType |
Type for the channels (clrChanT)
Definition at line 225 of file MRcolorTpl.hpp.
◆ clrChanTup6
| std::tuple<clrChanT, clrChanT, clrChanT, clrChanT> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::clrChanTup6 |
Definition at line 231 of file MRcolorTpl.hpp.
◆ clrChanTup5
| std::tuple<clrChanT, clrChanT, clrChanT, clrChanT> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::clrChanTup5 |
Definition at line 232 of file MRcolorTpl.hpp.
◆ clrChanTup4
| std::tuple<clrChanT, clrChanT, clrChanT, clrChanT> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::clrChanTup4 |
Definition at line 233 of file MRcolorTpl.hpp.
◆ clrChanTup3
| std::tuple<clrChanT, clrChanT, clrChanT> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::clrChanTup3 |
Definition at line 234 of file MRcolorTpl.hpp.
◆ clrChanTup2
| std::tuple<clrChanT, clrChanT> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::clrChanTup2 |
Definition at line 235 of file MRcolorTpl.hpp.
◆ clrChanTup1
| std::tuple<clrChanT> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::clrChanTup1 |
Definition at line 236 of file MRcolorTpl.hpp.
◆ clrChanVec
| std::vector<clrChanT> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::clrChanVec |
Definition at line 238 of file MRcolorTpl.hpp.
◆ packed4Cint
| uint32_t mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::packed4Cint |
Used for passing & returning integers with packed 8-bit channels.
Definition at line 244 of file MRcolorTpl.hpp.
◆ colConDbl3
| colorTpl<double, 3> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colConDbl3 |
Used for color space computations. Type identical to colConRGBdbl, but might not be RGB.
Definition at line 251 of file MRcolorTpl.hpp.
◆ colConRGBdbl
| colorTpl<double, 3> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colConRGBdbl |
RGB with double channels.
Definition at line 252 of file MRcolorTpl.hpp.
◆ colConRGBAdbl
| colorTpl<double, 4> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colConRGBAdbl |
RGBA with double channels.
Definition at line 253 of file MRcolorTpl.hpp.
◆ colConRGBbyte
| colorTpl<uint8_t, 3> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colConRGBbyte |
RGB with uint8_t channels.
Definition at line 254 of file MRcolorTpl.hpp.
◆ colConRGBAbyte
| colorTpl<uint8_t, 4> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colConRGBAbyte |
RGBA with uint8_t channels.
Definition at line 255 of file MRcolorTpl.hpp.
◆ colConALLdbl
| colorTpl<double, numChan> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colConALLdbl |
Color with the same number of challens as colorT, but with double channels.
Definition at line 256 of file MRcolorTpl.hpp.
◆ colConALLbyte
| colorTpl<uint8_t, numChan> mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colConALLbyte |
Color with the same number of challens as colorT, but with uint8_t channels.
Definition at line 257 of file MRcolorTpl.hpp.
◆ colorArgType
| std::conditional<ptrIsSmaller,colorCRefType,colorType>::type mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colorArgType |
A type for passing colorTpl objects to functions.
WHen the size of a colorTpl object is smaller than a pointer, this type is colorTpl – resulting in pass by value. Otherwise, this type is colorType const& – resulting in pass by refrence.
Definition at line 557 of file MRcolorTpl.hpp.
◆ cs2dThallerHSL
| using mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dThallerHSL = cs2dThaller_tpl<1, 0, cutDepth, argCuts, absCuts, logAbs> |
Compute a color from Bernd Thaller's 2D complex number coloring scheme with HSL.
See: Bernd Thaller (2000); Visual Quantum Mechanics; pp 2-8 This is a continuous, 2D color scheme!
- Template Parameters
-
cutDepth See: tfrmComplexCut() argCuts See: tfrmComplexCut() absCuts See: tfrmComplexCut() logAbs See: tfrmComplexCut()
Definition at line 5163 of file MRcolorTpl.hpp.
◆ cs2dThallerHSVm
| using mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dThallerHSVm = cs2dThaller_tpl<0, 1, cutDepth, argCuts, absCuts, logAbs> |
Compute a color from Bernd Thaller's 2D complex number coloring scheme with HSV and maximum value.
See: Bernd Thaller (2000); Visual Quantum Mechanics; pp 2-8 This is a continuous, 2D color scheme!
- Template Parameters
-
cutDepth See: tfrmComplexCut() argCuts See: tfrmComplexCut() absCuts See: tfrmComplexCut() logAbs See: tfrmComplexCut()
Definition at line 5173 of file MRcolorTpl.hpp.
◆ cs2dThallerHSV
| using mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dThallerHSV = cs2dThaller_tpl<0, 0, cutDepth, argCuts, absCuts, logAbs> |
Compute a color from Bernd Thaller's 2D complex number coloring scheme with HSV and dynamic value.
See: Bernd Thaller (2000); Visual Quantum Mechanics; pp 2-8 This is a continuous, 2D color scheme!
- Template Parameters
-
cutDepth See: tfrmComplexCut() argCuts See: tfrmComplexCut() absCuts See: tfrmComplexCut() logAbs See: tfrmComplexCut()
Definition at line 5183 of file MRcolorTpl.hpp.
Member Enumeration Documentation
◆ cornerColorEnum
|
strong |
Colors at the corners of the RGB color cube.
Definition at line 600 of file MRcolorTpl.hpp.
◆ colorSpaceEnum
|
strong |
Color spaces.
This ENUM is used by setRGBfromColorSpace(), interplColorSpace(), and rgb2colorSpace(). In this context these color spaces use double values for each channel. Angles (the H of HSV, HSL, & LCH) are in degrees, and will always be normalized to [0, 360).
Definition at line 612 of file MRcolorTpl.hpp.
◆ cmfInterpolationEnum
|
strong |
Interpolation methods for emperical color matching functions.
| Enumerator | |
|---|---|
| FLOOR | closest lower |
| CEILING | closest upper |
| NEAREST | closest |
| LINEAR | linear interpolation |
| BUMP | exponential bump map interpolation |
Definition at line 621 of file MRcolorTpl.hpp.
Constructor & Destructor Documentation
◆ colorTpl() [1/9]
|
inline |
The no arg constructor is a noop so we don't needlessly initialize millions of pixels – compiler warnings are expected.
Definition at line 635 of file MRcolorTpl.hpp.
◆ colorTpl() [2/9]
|
inline |
Copy constructor (heavily used for assignment in the ramCanvas library).
Definition at line 638 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getMaskNC(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::theColor, and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::thePartsA.
◆ colorTpl() [3/9]
|
inline |
Initializer list.
Unspecified channels are set ot minChanVal, and extra channel values are ignored.
Definition at line 648 of file MRcolorTpl.hpp.
◆ colorTpl() [4/9]
|
inline |
Definition at line 665 of file MRcolorTpl.hpp.
◆ colorTpl() [5/9]
|
inline |
Definition at line 670 of file MRcolorTpl.hpp.
◆ colorTpl() [6/9]
|
inline |
Uses setChans() to set all channels to the given value.
- Parameters
-
cVal The value to set the channels to
Definition at line 684 of file MRcolorTpl.hpp.
◆ colorTpl() [7/9]
|
inline |
Uses the setToCorner() method to set the initialize the object.
Note that no constructor exists taking a character to provide to setToCorner(). Why? Because character literals are integers in C++, and they might be the same as clrChanT – rendering ambiguous overload cases.
Definition at line 689 of file MRcolorTpl.hpp.
◆ colorTpl() [8/9]
|
inline |
Uses the setColorFromString() method to set the initialize the object.
Definition at line 692 of file MRcolorTpl.hpp.
◆ colorTpl() [9/9]
|
inline |
Uses the setColorFromString() method to set the initialize the object.
Definition at line 695 of file MRcolorTpl.hpp.
◆ ~colorTpl()
|
inline |
The destructor for this class is a no-op.
Definition at line 702 of file MRcolorTpl.hpp.
Member Function Documentation
◆ hslHelperVal()
|
inlineprivate |
This is a helper function for setRGBfromColorSpace.
Definition at line 382 of file MRcolorTpl.hpp.
◆ setChansToMean()
|
inlineprivate |
Set all channels to meanChanVal.
Definition at line 395 of file MRcolorTpl.hpp.
◆ setChansToMin()
|
inlineprivate |
Set all channels to minChanVal.
Definition at line 398 of file MRcolorTpl.hpp.
◆ setChansToMax()
|
inlineprivate |
Set all channels to maxChanVal.
Definition at line 406 of file MRcolorTpl.hpp.
◆ setColorFromString()
|
inlineprivate |
Sets the current color based upon the contents of the given std::string.
This is the guts of the magic constructor taking a string. If colorString starts with a "#", then setChans() will be used. Otherwise setToCorner() will be used
Definition at line 416 of file MRcolorTpl.hpp.
◆ convertByteToChan() [1/2]
|
inlineprivate |
Convert a uint8_t to a clrChanT (for integral clrChanT)
Definition at line 435 of file MRcolorTpl.hpp.
◆ convertByteToChan() [2/2]
|
inlineprivate |
Convert a uint8_t to a clrChanT (for floating point clrChanT)
Definition at line 443 of file MRcolorTpl.hpp.
◆ convertHexStringToChan() [1/2]
|
inlineprivate |
Convert hex CString to clrChanT (for integral clrChanT)
Definition at line 448 of file MRcolorTpl.hpp.
◆ convertHexStringToChan() [2/2]
|
inlineprivate |
Convert hex CString to clrChanT (for floating point clrChanT)
Definition at line 456 of file MRcolorTpl.hpp.
◆ convertChanToByte() [1/2]
|
inlineprivate |
Convert a clrChanT to a uint8_t (for floating point clrChanT)
Definition at line 464 of file MRcolorTpl.hpp.
◆ convertChanToByte() [2/2]
|
inlineprivate |
Convert a clrChanT to a uint8_t (for integral clrChanT)
Definition at line 469 of file MRcolorTpl.hpp.
◆ convertDoubleToChan()
|
inlineprivate |
Convert a double to a clrChanT.
Definition at line 479 of file MRcolorTpl.hpp.
◆ convertChanToDouble()
|
inlineprivate |
Convert a clrChanT to a double.
Definition at line 488 of file MRcolorTpl.hpp.
◆ getMaskNC()
|
inlineprivate |
Return the mask value.
Definition at line 496 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colorTpl().
◆ setMaskNC()
|
inlineprivate |
Set the mask value.
Definition at line 508 of file MRcolorTpl.hpp.
◆ copy()
|
inline |
Copy the contents of the given color object into the current object.
When sizeof(colorTpl)<=sizeof(maskType), this function consists of a single assignment statement. Otherwise it is O(numChan).
- Returns
- Returns a reference to the current color object.
Definition at line 711 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >::c().
◆ getRed()
|
inline |
Definition at line 728 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csHSLh_tpl< corner >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGB_byte(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGB_dbl(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_byte(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_dbl().
◆ getBlue()
|
inline |
Definition at line 729 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csHSLh_tpl< corner >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGB_byte(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGB_dbl(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_byte(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_dbl().
◆ getGreen()
|
inline |
Definition at line 730 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csHSLh_tpl< corner >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGB_byte(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGB_dbl(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_byte(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_dbl().
◆ getAlpha()
|
inline |
Definition at line 731 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_byte(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChansRGBA_dbl().
◆ getRed_dbl()
|
inline |
Definition at line 733 of file MRcolorTpl.hpp.
◆ getGreen_dbl()
|
inline |
Definition at line 734 of file MRcolorTpl.hpp.
◆ getBlue_dbl()
|
inline |
Definition at line 735 of file MRcolorTpl.hpp.
◆ getAlpha_dbl()
|
inline |
Definition at line 736 of file MRcolorTpl.hpp.
◆ getRed_byte()
|
inline |
Definition at line 738 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >::c().
◆ getGreen_byte()
|
inline |
Definition at line 739 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >::c().
◆ getBlue_byte()
|
inline |
Definition at line 740 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >::c().
◆ getAlpha_byte()
|
inline |
Definition at line 741 of file MRcolorTpl.hpp.
◆ getC0()
|
inline |
Definition at line 743 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::distDeltaE1994(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::interplColorSpace(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setRGBfromColorSpace().
◆ getC1()
|
inline |
Definition at line 744 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::distDeltaE1994(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::interplColorSpace(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setRGBfromColorSpace().
◆ getC2()
|
inline |
Definition at line 745 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::distDeltaE1994(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::interplColorSpace(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setRGBfromColorSpace().
◆ getC3()
|
inline |
Definition at line 746 of file MRcolorTpl.hpp.
◆ getC0_dbl()
|
inline |
Definition at line 748 of file MRcolorTpl.hpp.
◆ getC1_dbl()
|
inline |
Definition at line 749 of file MRcolorTpl.hpp.
◆ getC2_dbl()
|
inline |
Definition at line 750 of file MRcolorTpl.hpp.
◆ getC3_dbl()
|
inline |
Definition at line 751 of file MRcolorTpl.hpp.
◆ getC0_byte()
|
inline |
Definition at line 753 of file MRcolorTpl.hpp.
◆ getC1_byte()
|
inline |
Definition at line 754 of file MRcolorTpl.hpp.
◆ getC2_byte()
|
inline |
Definition at line 755 of file MRcolorTpl.hpp.
◆ getC3_byte()
|
inline |
Definition at line 756 of file MRcolorTpl.hpp.
◆ getChan()
|
inline |
Definition at line 766 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cmpRGBcornerDGradiant(), and mjr::operator<<().
◆ getChan_dbl()
|
inline |
Definition at line 773 of file MRcolorTpl.hpp.
◆ getChan_byte()
|
inline |
Definition at line 780 of file MRcolorTpl.hpp.
◆ setC0()
|
inline |
Definition at line 799 of file MRcolorTpl.hpp.
◆ setC1()
|
inline |
Definition at line 800 of file MRcolorTpl.hpp.
◆ setC2()
|
inline |
Definition at line 801 of file MRcolorTpl.hpp.
◆ setC3()
|
inline |
Definition at line 802 of file MRcolorTpl.hpp.
◆ setC0_dbl()
|
inline |
Definition at line 804 of file MRcolorTpl.hpp.
◆ setC1_dbl()
|
inline |
Definition at line 805 of file MRcolorTpl.hpp.
◆ setC2_dbl()
|
inline |
Definition at line 806 of file MRcolorTpl.hpp.
◆ setC3_dbl()
|
inline |
Definition at line 807 of file MRcolorTpl.hpp.
◆ setC0_byte()
|
inline |
Definition at line 809 of file MRcolorTpl.hpp.
◆ setC1_byte()
|
inline |
Definition at line 810 of file MRcolorTpl.hpp.
◆ setC2_byte()
|
inline |
Definition at line 811 of file MRcolorTpl.hpp.
◆ setC3_byte()
|
inline |
Definition at line 812 of file MRcolorTpl.hpp.
◆ setRed()
|
inline |
Definition at line 814 of file MRcolorTpl.hpp.
◆ setBlue()
|
inline |
Definition at line 815 of file MRcolorTpl.hpp.
◆ setGreen()
|
inline |
Definition at line 816 of file MRcolorTpl.hpp.
◆ setAlpha()
|
inline |
Definition at line 817 of file MRcolorTpl.hpp.
◆ setRed_dbl()
|
inline |
Definition at line 819 of file MRcolorTpl.hpp.
◆ setGreen_dbl()
|
inline |
Definition at line 820 of file MRcolorTpl.hpp.
◆ setBlue_dbl()
|
inline |
Definition at line 821 of file MRcolorTpl.hpp.
◆ setAlpha_dbl()
|
inline |
Definition at line 822 of file MRcolorTpl.hpp.
◆ setRed_byte()
|
inline |
Definition at line 824 of file MRcolorTpl.hpp.
◆ setGreen_byte()
|
inline |
Definition at line 825 of file MRcolorTpl.hpp.
◆ setBlue_byte()
|
inline |
Definition at line 826 of file MRcolorTpl.hpp.
◆ setAlpha_byte()
|
inline |
Definition at line 827 of file MRcolorTpl.hpp.
◆ setChansRGBA() [1/2]
|
inline |
Definition at line 829 of file MRcolorTpl.hpp.
◆ setChansRGB() [1/2]
|
inline |
Definition at line 830 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csHSLh_tpl< corner >::c().
◆ setChansRGBA_dbl() [1/2]
|
inline |
Definition at line 832 of file MRcolorTpl.hpp.
◆ setChansRGB_dbl() [1/2]
|
inline |
Definition at line 833 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dRichardson< cutDepth, argCuts, absCuts, logAbs >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csCubeHelix_tpl< start, rots, hue, gamma >::c(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csPLY_tpl< coefs >::c().
◆ setChansRGBA_byte() [1/2]
|
inline |
Definition at line 835 of file MRcolorTpl.hpp.
◆ setChansRGB_byte() [1/2]
|
inline |
Definition at line 836 of file MRcolorTpl.hpp.
◆ setChansRGBA() [2/2]
|
inline |
Definition at line 838 of file MRcolorTpl.hpp.
◆ setChansRGB() [2/2]
|
inline |
Definition at line 839 of file MRcolorTpl.hpp.
◆ setChans_dbl() [1/2]
|
inline |
Definition at line 846 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getChanNC().
◆ setChans_byte() [1/2]
|
inline |
Definition at line 847 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getChanNC().
◆ setChansRGBA_dbl() [2/2]
|
inline |
Definition at line 848 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getAlpha(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getBlue(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getGreen(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getRed().
◆ setChansRGB_dbl() [2/2]
|
inline |
Definition at line 849 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getBlue(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getGreen(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getRed().
◆ setChansRGBA_byte() [2/2]
|
inline |
Definition at line 850 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getAlpha(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getBlue(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getGreen(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getRed().
◆ setChansRGB_byte() [2/2]
|
inline |
Definition at line 851 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getBlue(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getGreen(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getRed().
◆ getColCon_dbl()
|
inline |
Definition at line 853 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChanNC().
◆ getColCon_byte()
|
inline |
Definition at line 854 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChanNC().
◆ getColConRGBA_dbl()
|
inline |
Definition at line 855 of file MRcolorTpl.hpp.
◆ getColConRGB_dbl()
|
inline |
Definition at line 856 of file MRcolorTpl.hpp.
◆ getColConRGBA_byte()
|
inline |
Definition at line 857 of file MRcolorTpl.hpp.
◆ getColConRGB_byte()
|
inline |
Definition at line 858 of file MRcolorTpl.hpp.
◆ bestRedChan()
|
inline |
Definition at line 866 of file MRcolorTpl.hpp.
◆ bestGreenChan()
|
inline |
Definition at line 874 of file MRcolorTpl.hpp.
◆ bestBlueChan()
|
inline |
Definition at line 884 of file MRcolorTpl.hpp.
◆ bestAlphaChan()
|
inline |
Definition at line 896 of file MRcolorTpl.hpp.
◆ setChanToMax()
|
inline |
Definition at line 913 of file MRcolorTpl.hpp.
◆ setChanToMin()
|
inline |
Definition at line 919 of file MRcolorTpl.hpp.
◆ setChan()
|
inline |
Definition at line 925 of file MRcolorTpl.hpp.
◆ setChan_dbl()
|
inline |
Definition at line 931 of file MRcolorTpl.hpp.
◆ setChan_byte()
|
inline |
Definition at line 936 of file MRcolorTpl.hpp.
◆ setChanNC()
|
inline |
Sets the specified color channel value with no index check.
Definition at line 949 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::thePartsA.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getColCon_byte(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getColCon_dbl().
◆ getChanNC()
|
inline |
Provides access to an specified color channel value with no index check.
Definition at line 952 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::distDeltaE1976(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChans_byte(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setChans_dbl().
◆ setChans() [1/5]
|
inline |
Definition at line 971 of file MRcolorTpl.hpp.
◆ setChans_dbl() [2/2]
|
inline |
Definition at line 977 of file MRcolorTpl.hpp.
◆ setChans_byte() [2/2]
|
inline |
Definition at line 978 of file MRcolorTpl.hpp.
◆ setChans() [2/5]
|
inline |
Sets the first four channels current object.
- Parameters
-
chanValues The values for the components
- Returns
- Returns a reference to the current color object.
Definition at line 988 of file MRcolorTpl.hpp.
◆ setChans() [3/5]
|
inline |
Sets the first three channels current object.
- Parameters
-
chanValues The values for the components
- Returns
- Returns a reference to the current color object.
Definition at line 998 of file MRcolorTpl.hpp.
◆ setChans() [4/5]
|
inline |
This function sets color channels from the data in a std::vector.
- Warning
- input vector must have at least channelCount elements! This is not checked!
- Parameters
-
chanValues A std::vector containing the color channels.
- Returns
- Returns a reference to the current color object.
Definition at line 1009 of file MRcolorTpl.hpp.
◆ setChans() [5/5]
|
inline |
Sets the current color based upon the contents of the given color hex string.
A color hex string is similar to the hash hex strings used in HTML, but extended to larger depths and higher channel counts.
#FF0000 -- Red for an RGB color with 8-bit per channels
#FFFF00000000 -- Red for an RGB color with 16-bit per channels
#FF0000EE -- Red for an RGBA color with 8-bit per channels (with alpha set to EE)
#FFFFFFFFFF -- White for a 5 channel color with 8-bit per channels
Fewer channel specifiers may be provided than channels in the current color, then the value of clearUndefinedChannels defines the behavior: NOOP or set them to minChanVal. If the colorHexString is somehow invalid, then all channels are considered undefined, and the action is defined by the value of clearUndefinedChannels.
- Parameters
-
colorHexString Hex string specifying a color. clearUndefinedChannels Specify error action and what to do with unspecified channels.
- Returns
- Returns a reference to the current color object.
Definition at line 1028 of file MRcolorTpl.hpp.
◆ setToBlack()
|
inline |
Definition at line 1070 of file MRcolorTpl.hpp.
◆ setToWhite()
|
inline |
Definition at line 1071 of file MRcolorTpl.hpp.
◆ setToRed()
|
inline |
Definition at line 1072 of file MRcolorTpl.hpp.
◆ setToBlue()
|
inline |
Definition at line 1073 of file MRcolorTpl.hpp.
◆ setToGreen()
|
inline |
Definition at line 1074 of file MRcolorTpl.hpp.
◆ setToCyan()
|
inline |
Definition at line 1075 of file MRcolorTpl.hpp.
◆ setToYellow()
|
inline |
Definition at line 1076 of file MRcolorTpl.hpp.
◆ setToMagenta()
|
inline |
Definition at line 1077 of file MRcolorTpl.hpp.
◆ setToHalf()
|
inline |
Definition at line 1078 of file MRcolorTpl.hpp.
◆ setToCorner() [1/3]
|
inline |
Set the current color based upon the single character given – 0==black, R, G, B, M, C, Y, W/1==white).
The color is acutally set using one of the setTo*() functions. If cornerColor is invalid, then setToBlack().
- Parameters
-
cornerColor Character specifying the color
- Returns
- Returns a reference to the current color object.
Definition at line 1084 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csBin_tpl< a, b >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cmpRGBcornerCGradiant(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cmpRGBcornerDGradiant().
◆ setToCorner() [2/3]
|
inline |
Set the color to the given corner color.
The color is acutally set using one of the setTo*() functions. If cornerColor is invalid, then setToBlack().
- Parameters
-
cornerColor Enum value specifying the color
- Returns
- Returns a reference to the current color object.
Definition at line 1111 of file MRcolorTpl.hpp.
◆ setToCorner() [3/3]
|
inline |
Set the color to the named corner color.
If cornerColor is one character long, then the call is equivalent to setToCorner(cornerColor[0]). Otherwise a valid corner color name string is expected: red, blue, green, cyan, yellow, magenta, black, or white. If cornerColor is invalid, then setToBlack(). The color is actually set using one of the setTo*() functions.
- Parameters
-
cornerColor String value specifying the color
- Returns
- Returns a reference to the current color object.
Definition at line 1133 of file MRcolorTpl.hpp.
◆ setRGBAfromLogPackIntGen()
|
inline |
Set the color based upon the bytes of the given integer ordered from LSB to MSB.
The *Idx arguments select which byte of the int is used for each channel – with LSB equal to index 0 and MSB equal to index 3. The extracted bytes are interpreted as by setChans_byte. Any channels beyond four are left untouched.
- Parameters
-
anInt The integer from which to extract bytes to set color rIdx Location of red byte in anInt gIdx Location of green byte in anInt bIdx Location of blue byte in anInt aIdx Location of alpha byte in anInt
- Returns
- Returns a reference to the current color object.
Definition at line 1165 of file MRcolorTpl.hpp.
◆ setRGBfromLogPackIntGen()
|
inline |
Just like setRGBAfromLogPackIntGen, but no A.
Definition at line 1180 of file MRcolorTpl.hpp.
◆ setRGBAfromLogPackIntARGB()
|
inline |
Definition at line 1195 of file MRcolorTpl.hpp.
◆ setRGBfromLogPackIntARGB()
|
inline |
Definition at line 1196 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >::c(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cmpGradiant().
◆ setRGBAfromLogPackIntRGBA()
|
inline |
Definition at line 1197 of file MRcolorTpl.hpp.
◆ setRGBfromLogPackIntRGBA()
|
inline |
Definition at line 1198 of file MRcolorTpl.hpp.
◆ setRGBAfromLogPackIntABGR()
|
inline |
Definition at line 1199 of file MRcolorTpl.hpp.
◆ setRGBfromLogPackIntABGR()
|
inline |
Definition at line 1200 of file MRcolorTpl.hpp.
◆ setRGBAfromLogPackIntBGRA()
|
inline |
Definition at line 1201 of file MRcolorTpl.hpp.
◆ setRGBfromLogPackIntBGRA()
|
inline |
Definition at line 1202 of file MRcolorTpl.hpp.
◆ setRGBAfromLogPackIntABRG()
|
inline |
Definition at line 1204 of file MRcolorTpl.hpp.
◆ setRGBfromLogPackIntABRG()
|
inline |
Definition at line 1205 of file MRcolorTpl.hpp.
◆ setRGBcmpGreyTGA16bit()
|
inline |
Computes a 24-bit truecolor value intended for use in producing 16-bit greyscale TGA.
This is the color scheme that should be used for POVray 16-bit height files
- Parameters
-
tga16val An integer
- Returns
- Returns a reference to the current color object.
Definition at line 1216 of file MRcolorTpl.hpp.
◆ setRGBcmpGreyTGA24bit()
|
inline |
Computes a 24-bit truecolor value intended for use in producing 24-bit greyscale TGA.
- Parameters
-
tga24val An integer
- Returns
- Returns a reference to the current color object.
Definition at line 1229 of file MRcolorTpl.hpp.
◆ setRGBAfromPackIntGen()
|
inline |
Set the color based upon the bytes of the given integer ordered as in RAM.
The *Idx arguments select which byte of the int is used for each channel – with byte[0] being the first in RAM. The extracted bytes are interpreted as by setChans_byte. Any channels beyond four are left untouched.
- Parameters
-
anInt The integer from which to extract bytes to set color rIdx Location of red byte in anInt gIdx Location of green byte in anInt bIdx Location of blue byte in anInt aIdx Location of alpha byte in anInt
- Returns
- Returns a reference to the current color object.
Definition at line 1254 of file MRcolorTpl.hpp.
◆ setRGBfromPackIntGen()
|
inline |
Just like setRGBAfromPackIntGen, but no A.
Definition at line 1265 of file MRcolorTpl.hpp.
◆ setRGBfromUnitHSV()
|
inline |
Set the color indicated by the given HSV values.
The 'unit' in the name indicates that the values for h, s, and v are the unit interval, [0,1].
- Parameters
-
H The Hue. S The Saturation. V The Value
- Returns
- Returns a reference to the current color object.
Definition at line 1289 of file MRcolorTpl.hpp.
◆ setRGBfromUnitHSL()
|
inline |
Set the color indicated by the given HSL values.
The 'unit' in the name indicates that The ranges for h, s, and v are the the unit interval – i.e. [0,1].
- Parameters
-
H The Hue. S The Saturation. L The Lightness or Luminescence
- Returns
- Returns a reference to the current color object.
Definition at line 1297 of file MRcolorTpl.hpp.
◆ setRGBfromColorSpace() [1/2]
|
inline |
Set the color indicated by the color space and values.
- Parameters
-
space The colorspace inCh1 Channel one value for given colorspace inCh2 Channel two value for given colorspace inCh3 Channel three value for given colorspace
- Returns
- Returns a reference to the current color object.
Definition at line 1305 of file MRcolorTpl.hpp.
◆ setRGBfromColorSpace() [2/2]
|
inline |
This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Definition at line 1384 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC0(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC1(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC2().
◆ setRGBfromWavelengthCM()
|
inline |
Set the color indicated by the given wavelength.
This function uses an algorithm based upon the color matching functions as tabulated in table 3 from Stockman and Sharpe (2000) – I believe they are taken from Stiles and Burch 10-degree (1959). Four of the algorithms are based upon simple linear interpolation, while one is based upon exponential bump functions closely matching the color matching functions. The method of interpolation may be specified via the final argument.
- Warning
- If you are looking for a wavelength color scheme, then see the csRainbowCM class: http://richmit.github.io/mraster/ColorSchemes.html
- Parameters
-
wavelength The wavelength to convert into RGB interpMethod Specify the interpolation method (see: cmfInterpolationEnum)
- Returns
- Returns a reference to the current color object.
Definition at line 1405 of file MRcolorTpl.hpp.
◆ setRGBfromWavelengthLA()
|
inline |
Set the color indicated by the given wavelength.
This function uses an algorithm based upon linear approximations to the color match functions. I believe the original algorithm is due to Dan Bruton, and his FORTRAN version is available (at least as of 1997) at http://www.physics.sfasu.edu/astro/color.html
- Warning
- If you are looking for a wavelength color scheme, then see the csRainbowLA class: http://richmit.github.io/mraster/ColorSchemes.html
- Parameters
-
wavelength to convert
- Returns
- Returns a reference to the current color object.
Definition at line 1524 of file MRcolorTpl.hpp.
◆ cmpGradiant() [1/3]
|
inline |
Convert a double to a color value based upon a color ramp passing through the given sequence of corner colors at the given anchor points.
The value of this function at aDouble equal to anchor[i] will be colors[i]. This is an extremely general function that is capable of replicating many of the more precise color ramp sequence functions in this library. The only defects are the lack of bit level precision and the poor performance – both due to the use of floating point arithmetic. Note this function operates correctly with any channel type and with an arbitrary number of channels – it is NOT limited to RGB colors or RGB color corners for anchors.
- Warning
- In many cases it is better to use csFP_tpl, csCC_tpl, or csHSLh_tpl to define a continuous gradient color scheme than to use this function directly. In fact, the first step might be to see if a suitable gradient color scheme is already are predefined: http://richmit.github.io/mraster/ColorSchemes.html
- Parameters
-
csX The value to convert anchors Doubles for which color equals the corresponding corner. colors A vector of colors to use
- Returns
- A reference to this object
Definition at line 1597 of file MRcolorTpl.hpp.
◆ cmpGradiant() [2/3]
|
inline |
Identical to the other cmpGradiant() function except that equidistant anchors are automatically generated on [0, 1] for the given colors array.
Definition at line 1612 of file MRcolorTpl.hpp.
◆ cmpGradiant() [3/3]
|
inline |
Identical to the other equidistant cmpGradiant() function except that this one works on just the RGB channels and takes an array of packed integers.
Definition at line 1627 of file MRcolorTpl.hpp.
◆ cmpRGBcornerCGradiant() [1/2]
|
inline |
This is simply a version of cmpRGBcornerCGradiant() that computes the length of the final argument as a C-string.
Unlike the version of cmpRGBcornerDGradiant() specifying numColors, this one requires the final argument to be a real C-string – i.e. it must have a terminating NULL. Note this function uses RGB corner colors as anchors, and is thus designed to work with RGB colors.
- Warning
- Many gradient color schemes are predefined: http://richmit.github.io/mraster/ColorSchemes.html
- Parameters
-
csX The value to convert cornerColors Characters specifying color (as used by setColor)
- Returns
- A reference to this object
Definition at line 1653 of file MRcolorTpl.hpp.
◆ cmpRGBcornerDGradiant() [1/2]
|
inline |
This is simply a version of cmpRGBcornerDGradiant() that computes the length of the final argument as a C-string.
Unlike the version of cmpRGBcornerDGradiant() specifying numColors, this one requires the final argument to be a real C-string – i.e. it must have a terminating NULL. Note this function uses RGB corner colors as anchors, and is thus designed to work with RGB colors.
- Warning
- Many gradient color schemes are predefined: http://richmit.github.io/mraster/ColorSchemes.html
- Parameters
-
csIdx The value to convert cornerColors Characters specifying color (as used by setColor)
- Returns
- A reference to this object
Definition at line 1666 of file MRcolorTpl.hpp.
◆ cmpRGBcornerDGradiant() [2/2]
|
inline |
Color value based upon a color ramp passing through the given sequence of corner colors at equal intervals along [0, (mjr::colorTpl::chanStepMax * (numColors - 1) + 1)].
At 0, the color will be the first specified color. At (mjr::colorTpl::chanStepMax * ( numColors - 1) + 1) it will be the last color specified color. This function uses precise integer arithmetic. cornerColors need not be a real C-string – i.e. no need for an terminating NULL. Note this function uses RGB corner colors as anchors, and is thus designed to work with RGB colors.
- Warning
- Many gradient color schemes are predefined: http://richmit.github.io/mraster/ColorSchemes.html
- Parameters
-
csIdx The value to convert numColors The number of colors cornerColors An array of things that can be passed to setToCorner() – usually char or cornerColorEnum
- Returns
- A reference to this object
Definition at line 1682 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getChan(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setToCorner().
◆ cmpRGBcornerCGradiant() [2/2]
|
inline |
Color value based upon a color ramp passing through the given sequence of corner colors at equal intervals along [0.0, 1.0].
At 0, the color will be the first specified color. At 1.0 it will be the last color specified color. CornerColors need not be a real C-string – i.e. no need for an terminating NULL. Note this function uses RGB corner colors as anchors, and is thus designed to work with RGB colors.
- Warning
- Many gradient color schemes are predefined: http://richmit.github.io/mraster/ColorSchemes.html
- Parameters
-
csX The value to convert numColors The number of colors cornerColors An array of things that can be passed to setToCorner() – usually char or cornerColorEnum
- Returns
- A reference to this object
Definition at line 1723 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::setToCorner().
◆ interplColorSpace()
|
inline |
Set the current color to a value linearly interpolated between the two given colors.
When aDouble is 0, the color is col1. When aDouble is 1 the new value is col2. The interpolation is done in HSL space – i.e. the given colors are converted to HSL, the interpolation is done, and the result is converted back to RGB and the current color is set. Unlike linearInterpolate, this function will NOT interpolate every channel. Rather, as this function deals specifically with RGB and HSL space, only the RGB channels will be interpolated.
- Parameters
-
space The color space to use aDouble The distance from col1 col1 The starting color col2 The ending color
- Returns
- Returns a reference to the current color object.
Definition at line 1751 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC0(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC1(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC2(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::rgb2colorSpace().
◆ channelArithFlt2clrChan()
|
inline |
Convert a channelArithFltType value into a clrChanT value.
This function works hard to return the nearest clrChanT value to a channelArithFltType value, but it is quite slow.
- Parameters
-
flt Value to convert
Definition at line 1783 of file MRcolorTpl.hpp.
◆ wMean() [1/3]
|
inline |
Compute the weighted mean of the given colors.
- Warning
- In order to keep the result in range, w1,w2,w3,s4 must be in [0,1] and w1+w2+w3_w5=1. See uMean() for a way to do that automatically.
- Floating point arithmetic results vary with hardware, compiler, and even compiler options. These small differences can have an impact on casts from floating point values to integers when the floating point result is near an whole number. For example, suppose we have a floating point computation for which the "theoretical" value is exactly 5. If that computation results in 4.999999, then the a cast will result in 4. OTOH if the computation resulted in 5.000001, then the cast results in 5. In short we expect the result of this function to vary by as much as 1. Yes we could "do it right", but this function is intended to be fast. We are more than happy to have a little slop in the results in exchange for speed.
- Parameters
-
w1 The first weight w2 The second weight w3 The third weight w4 The fourth weight col1 The first color col2 The second color col3 The third color col4 The fourth color
- Returns
- Returns a reference to the current color object.
Definition at line 1806 of file MRcolorTpl.hpp.
◆ wMean() [2/3]
|
inline |
This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Definition at line 1818 of file MRcolorTpl.hpp.
◆ wMean() [3/3]
|
inline |
This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Definition at line 1829 of file MRcolorTpl.hpp.
◆ uMean() [1/3]
|
inline |
Compute the unit weighted mean of the given colors – like wMean(), but last weight is computed such that weights sum to 1.0.
- Parameters
-
w1 The first weight in the range [0, 1) – the range not checked! w2 The second weight in the range [0, 1) – the range not checked! w3 The third weight in the range [0, 1) – the range not checked! col1 The first color col2 The second color col3 The third color col4 The fourth color
- Returns
- Returns a reference to the current color object.
Definition at line 1845 of file MRcolorTpl.hpp.
◆ uMean() [2/3]
|
inline |
This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Definition at line 1851 of file MRcolorTpl.hpp.
◆ uMean() [3/3]
|
inline |
This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Definition at line 1856 of file MRcolorTpl.hpp.
◆ linearInterpolate()
|
inline |
Set the current color to a value linearly interpolated between the two given colors.
When aDouble is 0, the color is col1. When aDouble is 1 the new value is col2. This method interpolates all channels without any color space conversions and as few type conversions as possible.
- Parameters
-
aDouble The distance from col1 col1 The starting color col2 The ending color
- Returns
- Returns a reference to the current color object.
Definition at line 1867 of file MRcolorTpl.hpp.
◆ linearInterpolateRGB()
|
inline |
Set the RGB channels of the current color to a value linearly interpolated between the two given colors.
When aDouble is 0, the color is col1. When aDouble is 1 the new value is col2. This method interpolates all channels without any color space conversions and as few type conversions as possible.
- Parameters
-
aDouble The distance from col1 col1 The starting color col2 The ending color
- Returns
- Returns a reference to the current color object.
Definition at line 1881 of file MRcolorTpl.hpp.
◆ tfrmOr() [1/2]
|
inline |
Performs a logical OR with the current object and the given object and places the value in the current object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 1896 of file MRcolorTpl.hpp.
◆ tfrmOr() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 1907 of file MRcolorTpl.hpp.
◆ tfrmNor() [1/2]
|
inline |
Performs a logical NOR with the current object and the given object and places the value in the current object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 1921 of file MRcolorTpl.hpp.
◆ tfrmNor() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 1932 of file MRcolorTpl.hpp.
◆ tfrmAnd() [1/2]
|
inline |
Performs a logical AND with the current object and the given object and places the value in the current object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 1945 of file MRcolorTpl.hpp.
◆ tfrmAnd() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 1956 of file MRcolorTpl.hpp.
◆ tfrmNand() [1/2]
|
inline |
Performs a logical NAND with the current object and the given object and places the value in the current object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 1969 of file MRcolorTpl.hpp.
◆ tfrmNand() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 1980 of file MRcolorTpl.hpp.
◆ tfrmXor() [1/2]
|
inline |
Performs a logical EXCLUSIVE OR (XOR) with the current object and the given object and places the value in the current object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 1993 of file MRcolorTpl.hpp.
◆ tfrmXor() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2004 of file MRcolorTpl.hpp.
◆ tfrmNxor() [1/2]
|
inline |
Performs a logical NOT EXCLUSIVE OR (NXOR) with the current object and the given object and places the value in the current object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2017 of file MRcolorTpl.hpp.
◆ tfrmNxor() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2028 of file MRcolorTpl.hpp.
◆ tfrmNot() [1/2]
|
inline |
Performs logical (bit-wise) negation of current object.
- Returns
- Returns a reference to the current color object.
Definition at line 2040 of file MRcolorTpl.hpp.
◆ tfrmNot() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2051 of file MRcolorTpl.hpp.
◆ tfrmSqDiff()
|
inline |
Computes the square of the difference for each channel between the given color and the current color object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2069 of file MRcolorTpl.hpp.
◆ tfrmAbsDiff()
|
inline |
Computes the absolute value of the difference for each channel between the given color and the current color object.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns the absolute value of the difference for each channel.
Definition at line 2079 of file MRcolorTpl.hpp.
◆ tfrmAdd()
|
inline |
Computes the arithmetic sum of the given color and the current one.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2088 of file MRcolorTpl.hpp.
◆ tfrmDiv() [1/2]
|
inline |
Computes the arithmetic division of the current color by the given color.
If a channel of aCol is zero, then the corresponding channel of the current color object will be left untouched.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2098 of file MRcolorTpl.hpp.
◆ tfrmDiv() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2106 of file MRcolorTpl.hpp.
◆ tfrmMult()
|
inline |
Computes the arithmetic product of the given color and the current one.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2116 of file MRcolorTpl.hpp.
◆ tfrmMultClamp()
|
inline |
Computes the product of the given color and the current one.
If the result of a multiplication is too large, it will be set to the maximum component value.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2126 of file MRcolorTpl.hpp.
◆ tfrmSignDiff()
|
inline |
Computes the component wise scaled sign of the difference between the current color and the given one.
As an example of the computation, the red component of the current color is computed like this:
- R=minChanVal iff(R<color.R)
- R=meanChanVal iff(R==color.R)
- R=maxChanVal iff(R>color.R)
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2139 of file MRcolorTpl.hpp.
◆ tfrmDiffClamp()
|
inline |
Computes the arithmetic difference of the given color from the current one.
If the result a differences is negative, then that component will be set to zero.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2156 of file MRcolorTpl.hpp.
◆ tfrmNegDiffClamp()
|
inline |
Computes the negative of the arithmetic difference of the given color from the current one.
This is the same as the arithmetic difference of the current color from the given color. If the result a differences is negative, then that component will be set to zero.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2167 of file MRcolorTpl.hpp.
◆ tfrmAddClamp()
|
inline |
Computes the arithmetic sum of the given color from the current one.
If the result of a sum is greater than the maximum value, then that component will be set to the maximum value.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2177 of file MRcolorTpl.hpp.
◆ tfrmAddDivClamp() [1/2]
|
inline |
Computes the arithmetic sum of the current color and aCol, then divids by dCol.
If the result is greater than the maximum value, then that component will be set to the maximum value. If a channel of dCol is zero, then the corresponding channel of the current color object will be left untouched.
- Parameters
-
aCol The color to use for initial add. dCol The color to use for final division.
- Returns
- Returns a reference to the current color object.
Definition at line 2189 of file MRcolorTpl.hpp.
◆ tfrmAddDivClamp() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2198 of file MRcolorTpl.hpp.
◆ tfrmDiff()
|
inline |
Computes the arithmetic difference of the given color from the current one.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2209 of file MRcolorTpl.hpp.
◆ tfrmMod() [1/2]
|
inline |
Computes the arithmetic modulus of the current by the given one.
If a channel of aCol is zero, then the corresponding channel of the current object is left untouched.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2219 of file MRcolorTpl.hpp.
◆ tfrmMod() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2227 of file MRcolorTpl.hpp.
◆ tfrmInvert()
|
inline |
Transforms the color: r=maxChanVal-r, g=maxChanVal-r, and b=maxChanVal-b.
- Returns
- Returns a reference to the current color object.
Definition at line 2236 of file MRcolorTpl.hpp.
◆ tfrmPow()
|
inline |
Power: c=maxChanVal*(c/maxChanVal)^p.
Floating point Numbers are used for intermediate values and the result cast to a colorT at the end. Take care when negative values for p – this can cause undefined behavior!!
- Returns
- Returns a reference to the current color object.
Definition at line 2253 of file MRcolorTpl.hpp.
◆ tfrmLn1() [1/2]
|
inline |
Adds 1.0 and takes the natural logarithm of each channel.
Floating point Numbers are used for intermediate values and the result cast to a colorT at the end. If a channel value would result in an undefined result, then the value is left untouched.
- Returns
- Returns a reference to the current color object.
Definition at line 2263 of file MRcolorTpl.hpp.
◆ tfrmLn1() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2271 of file MRcolorTpl.hpp.
◆ tfrmLn() [1/2]
|
inline |
Computes ln(c)*scale for each channel value c.
If c==0, then the value is left undisturbed. Floating point Numbers are used for intermediate values and the result cast to a colorT at the end. If a channel value would result in an undefined result, then the value is left untouched.
- Parameters
-
scale The scale value to multiply by the final result.
- Returns
- Returns a reference to the current color object.
Definition at line 2286 of file MRcolorTpl.hpp.
◆ tfrmLn() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2297 of file MRcolorTpl.hpp.
◆ tfrmMix()
|
inline |
Linearly interpolate between the current color and the given color (at a point scaled the unit interval).
If aDouble is 0, then the current color will not change. If aDouble is 1, then the current color will be tooCol.
- Parameters
-
aDouble Distance from the current color (on a unit interval) tooCol The color we are interpolating with.
- Returns
- Returns a reference to the current color object.
Definition at line 2312 of file MRcolorTpl.hpp.
◆ tfrmCopy()
|
inline |
Copies the given argument into the current color object.
Scan as copy() – just with a name more suited to transformation code.
- Returns
- Returns a reference to the current color object.
Definition at line 2322 of file MRcolorTpl.hpp.
◆ tfrmMaxI()
|
inline |
Makes the current color the maximum of the current color or the given color.
Colors are ordered by intensity (thus the 'I' in the name)
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2328 of file MRcolorTpl.hpp.
◆ tfrmMinI()
|
inline |
Makes the current color the minimum of the current color or the given color.
Colors are ordered by intensity (thus the 'I' in the name)
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2344 of file MRcolorTpl.hpp.
◆ tfrmMax()
|
inline |
Makes each component of the current color the maximum of that component and the corresponding component of the given color.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2360 of file MRcolorTpl.hpp.
◆ tfrmMin()
|
inline |
Makes each component of the current color the minimum of that component and the corresponding component of the given color.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2370 of file MRcolorTpl.hpp.
◆ tfrmShiftL() [1/2]
|
inline |
The Shift Left Transform modifies the current color.
- Parameters
-
aCol Number of bits to shift left
- Returns
- Returns a reference to the current color object.
Definition at line 2380 of file MRcolorTpl.hpp.
◆ tfrmShiftL() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2388 of file MRcolorTpl.hpp.
◆ tfrmShiftR() [1/2]
|
inline |
The Shift Right Transform modifies the current color.
- Parameters
-
aCol How many bits to shift.
- Returns
- Returns a reference to the current color object.
Definition at line 2399 of file MRcolorTpl.hpp.
◆ tfrmShiftR() [2/2]
|
inline |
Template specialization member function differing from the above function only in supported template conditions.
Definition at line 2407 of file MRcolorTpl.hpp.
◆ tfrmSaw()
|
inline |
The Saw Transform modifies the current color: C_i = ifelse(ra<=C_i<=rb, C_i, 0)
- Parameters
-
lowCol lower cutoff value highCol upper cutoff value
- Returns
- Returns a reference to the current color object.
Definition at line 2418 of file MRcolorTpl.hpp.
◆ tfrmStep()
|
inline |
The Saw Transform modifies the current color: C_i = ifelse(ra<=C_i<=rb, maxChanVal, 0)
- Parameters
-
lowCol lower cutoff value highCol upper cutoff value
- Returns
- Returns a reference to the current color object.
Definition at line 2428 of file MRcolorTpl.hpp.
◆ tfrmDiracTot()
|
inline |
The DiracTot (total) Transform modifies the current color: Set current color to white if it equals aCol, and black otherwise.
- Parameters
-
aCol Dirac trigger value
- Returns
- Returns a reference to the current color object.
Definition at line 2437 of file MRcolorTpl.hpp.
◆ tfrmDirac()
|
inline |
The Dirac Transform modifies the current color: C_i = ifelse(C_i==aCol.C_i, maxChanVal, 0)
- Parameters
-
aCol Dirac trigger value
- Returns
- Returns a reference to the current color object.
Definition at line 2447 of file MRcolorTpl.hpp.
◆ tfrmFuzzyDirac()
|
inline |
The Fuzzy Dirac Transform modifies the current color: C_i=ifelse(|R-ctrCol.R|<=radCol.R), maxChanVal, 0)
- Parameters
-
ctrCol Center Color radCol Radius Color
- Returns
- Returns a reference to the current color object.
Definition at line 2457 of file MRcolorTpl.hpp.
◆ tfrmMean()
|
inline |
Computes the arithmetic mean of the given color and the current one.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2466 of file MRcolorTpl.hpp.
◆ tfrmGmean()
|
inline |
Computes the geometric mean of the given color and the current one.
Floating point Numbers re used for intermediate values and the result cast to a colorT at the end.
- Parameters
-
aCol The color to use in the computation.
- Returns
- Returns a reference to the current color object.
Definition at line 2476 of file MRcolorTpl.hpp.
◆ tfrmGreyScaleRGB()
|
inline |
Transform the current color by rendering it into a true grey via the same method used by the luminanceRGB() function.
This function only sets the red, blue, and green channels – all other channels are left untouched.
- Returns
- Returns a reference to the current color object.
Definition at line 2485 of file MRcolorTpl.hpp.
◆ tfrmWebSafeRGB()
|
inline |
The 216 Palate Web Safe Transform modifies the current color into the closest web safe color from the 216 color web safe pallet.
This function only sets the red, blue, and green channels – all other channels are left untouched.
- Returns
- Returns a reference to the current color object.
Definition at line 2502 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >::c().
◆ rgb2colorSpace()
|
inline |
Compute channels for given color space coordinates for the current color.
Note RGB returns float RGB normalized to 1.0.
- Parameters
-
space The color space to convert to
- Returns
- An RGB color with double channels.
Definition at line 2528 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::distDeltaE1976(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::distDeltaE1994(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::interplColorSpace().
◆ colorSpaceToString()
|
inline |
Compute channels for given color space coordinates for the current color.
Note RGB returns float RGB normalized to 1.0.
- Parameters
-
space The color space to stringify
- Returns
- A string representing the color space.
Definition at line 2627 of file MRcolorTpl.hpp.
◆ tfrmLinearGreyLevelScale()
|
inline |
The Linear Grey Level Scale transform modifies the current color such that: C_n=c*C_n+b.
This function transforms all channels — not just RGBA.
- Parameters
-
c The "contrast" value b The "brightness" value
- Returns
- Returns a reference to the current color object.
Definition at line 2649 of file MRcolorTpl.hpp.
◆ tfrmLinearGreyLevelScaleRGB()
|
inline |
The Linear Grey Level Scale transform modifies the current color such that: R=rc*R+rb, G=gc*G+gb, B=bc*B+bb.
This function ONLY transforms the red, green, and blue channels.
- Parameters
-
rc The "contrast" value for red rb The "brightness" value for red gc The "contrast" value for green gb The "brightness" value for green bc The "contrast" value for blue bb The "brightness" value for blue
- Returns
- Returns a reference to the current color object.
Definition at line 2664 of file MRcolorTpl.hpp.
◆ tfrmComplexCut()
|
inline |
Perform a tfrmLinearGreyLevelScale based on a complex number.
- Parameters
-
z The complex number cutDepth Range: \([1, ~30]\) Smaller means more contrast on cuts. argCuts Number of grey cuts for arg absCuts Number of grey cuts for abs logAbs If true, then take the logorithm of abs for cuts.
Definition at line 2678 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dFltPalArg< colorScheme, argWrap, cutDepth, argCuts, absCuts, logAbs >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dIdxPalArg< colorScheme, argWrap, cutDepth, argCuts, absCuts, logAbs >::c(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dRichardson< cutDepth, argCuts, absCuts, logAbs >::c(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dThaller_tpl< useHSL, maxV, cutDepth, argCuts, absCuts, logAbs >::c().
◆ tfrmStdPow()
|
inline |
The Standard Power Transform modifies the current color such that: C_i = maxChanVal*(C_i / maxChanVal)**p.
- Returns
- Returns a reference to the current color object.
Definition at line 2698 of file MRcolorTpl.hpp.
◆ tfrmStdPowRGB()
|
inline |
The Standard Power Transform modifies the current color such that: R=maxChanVal*(R/maxChanVal)**rp, B=maxChanVal*(B/maxChanVal)**gp, B=maxChanVal*(B/maxChanVal)**bp.
- Returns
- Returns a reference to the current color object.
Definition at line 2707 of file MRcolorTpl.hpp.
◆ tfrmStdPowSqr()
|
inline |
The Standard Power Transform with p=2.
The new color will be: C_i = C_i * C_i / maxChanVal == (C_i/maxChanVal)^2*maxChanVal This computation is done with integer math if clrChanT is integral.
- Returns
- Returns a reference to the current color object.
Definition at line 2718 of file MRcolorTpl.hpp.
◆ tfrmStdPowSqrt()
|
inline |
The Standard Power Transform with p=1/2.
The new color will be: C_i = sqrt(C_i / maxChanVal) * maxChanVal
- Returns
- Returns a reference to the current color object.
Definition at line 2727 of file MRcolorTpl.hpp.
◆ rgb2GreyDotProd()
|
inline |
Use the R, G, & B channels to compute a floating point value representing a grey scale.
What is returned is the dot product of the given color and the three scalars: R*redWt+G*greenWt+B*blueWt.
- Parameters
-
redWt The red weight greenWt The green weight blueWt The blue weight
- Returns
- The integer representing grey value for the given color.
Definition at line 2746 of file MRcolorTpl.hpp.
◆ luminanceRGB()
|
inline |
Compute the luminance of the current color via the definition given in the ITU-R Recommendation BT.709.
The output value will be between 0 and 1, and is given by: (RGBluminanceWeightR*R+RGBluminanceWeightG*G+RGBluminanceWeightB*B)/maxChanVal.
- Returns
- The luminance for the current object.
Definition at line 2758 of file MRcolorTpl.hpp.
◆ intensityRGB()
|
inline |
Compute the unscaled intensity (sum of the R, G, & B components) of the current color.
- Returns
- The unscaled intensity for the current object.
Definition at line 2767 of file MRcolorTpl.hpp.
◆ intensity()
|
inline |
Compute the sum of the components.
- Returns
- Sum of components.
Definition at line 2776 of file MRcolorTpl.hpp.
◆ intensityScaledRGB()
|
inline |
Compute the scaled intensity (sum of the first three components divided by the maximum intensity possible) of the current color.
- Returns
- The scaled intensity for the current object.
Definition at line 2785 of file MRcolorTpl.hpp.
◆ intensityScaled()
|
inline |
Compute the scaled intensity (sum of the components divided by the maximum intensity possible) of the current color.
- Returns
- Sum of components.
Definition at line 2791 of file MRcolorTpl.hpp.
◆ getMaxC()
|
inline |
Returns the value of the largest component.
- Returns
- The value of the largest color component currently stored.
Definition at line 2797 of file MRcolorTpl.hpp.
◆ getMinC()
|
inline |
Returns the value of the smallest component.
- Returns
- The value of the smallest color component currently stored.
Definition at line 2820 of file MRcolorTpl.hpp.
◆ getMaxRGB()
|
inline |
Returns the value of the largest component from R, G, and B.
This function is highly optimized.
- Returns
- The value of the largest color component.
Definition at line 2840 of file MRcolorTpl.hpp.
◆ getMinRGB()
|
inline |
Returns the value of the smallest component from R, G, and B.
This function is highly optimized.
- Returns
- The value of the smallest color component.
Definition at line 2844 of file MRcolorTpl.hpp.
◆ dotProd()
|
inline |
Compute the dot product between the current color and the given color.
i.e. c1.r*c2.r+c1.g*c2.g+...
- Parameters
-
aColor the given color
- Returns
- Returns dot product.
Definition at line 2849 of file MRcolorTpl.hpp.
◆ distHypot()
|
inline |
Distance between current color and given one (sum squares of channel differences – Euclidean distance squared).
- Parameters
-
aColor The given color
- Returns
- Returns Distance
Definition at line 2859 of file MRcolorTpl.hpp.
◆ distSumAbs()
|
inline |
Distance between current color and given one (sum of absolute channel differences).
- Parameters
-
aColor the given color
- Returns
- Returns Distance
Definition at line 2870 of file MRcolorTpl.hpp.
◆ distMaxAbs()
|
inline |
Distance between current color and given one (maximum of absolute value of channel differences).
- Parameters
-
aColor the given color
- Returns
- Returns Distance
Definition at line 2880 of file MRcolorTpl.hpp.
◆ distDeltaE1976()
|
inline |
LAB Delta E* distance between current color and given one.
Note: The Delta E* 1976 distance measurement is inherently an RGB measurement in that the colors are converted to LAB* as part of the computation.
- Parameters
-
aColor the given color
- Returns
- Returns Distance – note return is a double not a channelArithFltType.
Definition at line 2894 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getChanNC(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::rgb2colorSpace().
◆ distDeltaE1994()
|
inline |
LAB Delta E* 1994 (graphic arts) distance between current color and given one.
Note: The Delta E* 1994 distance measurement is inherently an RGB measurement in that the colors are converted to LAB* as part of the computation. Note: The Delta E* 1994 distance measurement is NOT symetric – the 1976 one is!
- Parameters
-
aColor the given color
- Returns
- Returns Distance – note return is a double not a channelArithFltType.
Definition at line 2909 of file MRcolorTpl.hpp.
References mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC0(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC1(), mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::getC2(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::rgb2colorSpace().
◆ isClose()
|
inline |
Returns non-zero if the current color is close to aColor (the maximum delta between any two channels is less than or equal to epsilon).
Note the implications for floating point clrChanT.
- Returns
- non-zero if the given color is logically the same as the current color
Definition at line 2936 of file MRcolorTpl.hpp.
◆ isCloseRGB()
|
inline |
Like isClose(), but only checks the R, G, & B channels.
- Returns
- non-zero if the given RGB color is the same as the current color
Definition at line 2945 of file MRcolorTpl.hpp.
◆ isEqual()
|
inline |
Returns non-zero if the current color is precicely equal to aColor.
Note the implications for floating point clrChanT.
- Returns
- non-zero if the given color is logically the same as the current color
Definition at line 2955 of file MRcolorTpl.hpp.
◆ isEqualRGB()
|
inline |
Like isEqual(), but only checks the R, G, & B channels.
- Returns
- non-zero if the given RGB color is the same as the current color
Definition at line 2967 of file MRcolorTpl.hpp.
◆ isNotEqual()
|
inline |
Returns non-zero if the given color is logically NOT the same as the current color.
Note the implications for floating point clrChanT.
- Returns
- non-zero if the given color is logically the same as the current color
Definition at line 2977 of file MRcolorTpl.hpp.
Referenced by mjr::operator!=().
◆ isBlack()
|
inline |
Returns non-zero if the given color is black (all componnets are zero)
- Returns
- non-zero if the given color is black (all componnets are zero)
Definition at line 2981 of file MRcolorTpl.hpp.
◆ isBlackRGB()
|
inline |
LIke isBlack(), but only checks the R, G, & B channels.
- Returns
- non-zero if the given color is black (R, G, & B are are zero)
Definition at line 2993 of file MRcolorTpl.hpp.
◆ clampTop()
requires (std::same_as<iT, clrChanT> || std::same_as<iT, channelArithDType> || std::same_as<iT, channelArithSPType> || std::same_as<iT, channelArithSDPType> || std::same_as<iT, channelArithLogType>)
|
inline |
Clamp a value to (infinity, maxChanVal].
Input values larger than maxChanVal are mapped to maxChanVal. Values less than minChanVal are not changed.
- Parameters
-
arithValue The value to clamp
Definition at line 3005 of file MRcolorTpl.hpp.
◆ clampBot()
requires (std::same_as<iT, clrChanT> || std::same_as<iT, channelArithDType> || std::same_as<iT, channelArithSPType> || std::same_as<iT, channelArithSDPType> || std::same_as<iT, channelArithLogType>)
|
inline |
Clamp a value to [minChanVal, infinity).
- Parameters
-
arithValue The value to clamp
Definition at line 3016 of file MRcolorTpl.hpp.
◆ clampAll()
requires (std::same_as<iT, clrChanT> || std::same_as<iT, channelArithDType> || std::same_as<iT, channelArithSPType> || std::same_as<iT, channelArithSDPType> || std::same_as<iT, channelArithLogType>)
|
inline |
Clamp a value to [minChanVal, maxChanVal].
- Parameters
-
arithValue The value to clamp
Definition at line 3027 of file MRcolorTpl.hpp.
◆ csSet() [1/2]
|
inline |
Definition at line 5187 of file MRcolorTpl.hpp.
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dFltPalArg< colorScheme, argWrap, cutDepth, argCuts, absCuts, logAbs >::c(), and mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dIdxPalArg< colorScheme, argWrap, cutDepth, argCuts, absCuts, logAbs >::c().
◆ csSet() [2/2]
|
inline |
Definition at line 5188 of file MRcolorTpl.hpp.
Member Data Documentation
◆ theInt
| maskType mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::theInt |
Definition at line 372 of file MRcolorTpl.hpp.
◆ thePartsA
| clrChanT mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::thePartsA[numChan] |
◆ [union]
| union { ... } mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::theColor |
Holds the color channel data.
The union is used to overlay a mask integer leading to dramatic performance improvements for common color types.
Technically we are not allowed to use a union the way we do in colorTpl with modern C++; however, every compiler I use allows us to access "non-active" union members the same way we did with good old C. At some point C++ compilers will have bit_cast, and I can try doing this the "correct" way with modern C++; however, I'll need to do quite a bit of performance testing first...
Referenced by mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::colorTpl().
◆ noRGBchanIdx
|
staticconstexpr |
Definition at line 516 of file MRcolorTpl.hpp.
◆ redChan
|
staticconstexpr |
Definition at line 517 of file MRcolorTpl.hpp.
◆ greenChan
|
staticconstexpr |
Definition at line 518 of file MRcolorTpl.hpp.
◆ blueChan
|
staticconstexpr |
Definition at line 519 of file MRcolorTpl.hpp.
◆ alphaChan
|
staticconstexpr |
Definition at line 520 of file MRcolorTpl.hpp.
◆ bitsPerChan
|
staticconstexpr |
Number of bits in clrChanT.
Definition at line 526 of file MRcolorTpl.hpp.
◆ bitsPerPixel
|
staticconstexpr |
Number of color data bits.
Definition at line 527 of file MRcolorTpl.hpp.
◆ chanIsInt
|
staticconstexpr |
clrChanT is an integral type
Definition at line 528 of file MRcolorTpl.hpp.
◆ chanIsFloat
|
staticconstexpr |
clrChanT is a floating pint type
Definition at line 529 of file MRcolorTpl.hpp.
◆ chanIsUnsigned
|
staticconstexpr |
clrChanT is an unsigned integral type
Definition at line 530 of file MRcolorTpl.hpp.
◆ chanIsByte
|
staticconstexpr |
is clrChanT an 8-bit unsigned int?
Definition at line 531 of file MRcolorTpl.hpp.
◆ chanIsDouble
|
staticconstexpr |
is clrChanT a double?
Definition at line 532 of file MRcolorTpl.hpp.
◆ goodMask
|
staticconstexpr |
maskType is big enough
Definition at line 533 of file MRcolorTpl.hpp.
◆ perfectMask
|
staticconstexpr |
maskType is perfectly sized
Definition at line 534 of file MRcolorTpl.hpp.
◆ goodArithD
|
staticconstexpr |
channelArithDType is big enough
Definition at line 535 of file MRcolorTpl.hpp.
◆ goodArithSP
|
staticconstexpr |
channelArithSPType is big enough
Definition at line 536 of file MRcolorTpl.hpp.
◆ goodArithSDP
|
staticconstexpr |
channelArithSDPType is big enough
Definition at line 537 of file MRcolorTpl.hpp.
◆ goodArithFlt
|
staticconstexpr |
channelArithFltType is big enough
Definition at line 538 of file MRcolorTpl.hpp.
◆ goodArithLog
|
staticconstexpr |
channelArithLogType is the right size
Definition at line 539 of file MRcolorTpl.hpp.
◆ sizeOfColor
|
staticconstexpr |
Size of this object.
Definition at line 540 of file MRcolorTpl.hpp.
◆ ptrIsSmaller
|
staticconstexpr |
This object smaller than a pointer.
Definition at line 541 of file MRcolorTpl.hpp.
◆ maxChanVal
|
staticconstexpr |
maximum value for a channel
Definition at line 542 of file MRcolorTpl.hpp.
◆ minChanVal
|
staticconstexpr |
maximum value for a channel
Definition at line 543 of file MRcolorTpl.hpp.
◆ meanChanVal
|
staticconstexpr |
middle value for a channel
Definition at line 544 of file MRcolorTpl.hpp.
◆ maskAllOne
|
staticconstexpr |
mask value all ones
Definition at line 545 of file MRcolorTpl.hpp.
◆ maskAllZero
|
staticconstexpr |
mask value all zeros
Definition at line 546 of file MRcolorTpl.hpp.
◆ channelCount
|
staticconstexpr |
Number of channels.
Definition at line 547 of file MRcolorTpl.hpp.
◆ chanStepMax
|
staticconstexpr |
Finite "steps" for a color scheme: [0, chanStepMax].
Definition at line 584 of file MRcolorTpl.hpp.
◆ minWavelength
|
staticconstexpr |
Minimum wavelength for wavelength conversion.
Definition at line 585 of file MRcolorTpl.hpp.
◆ maxWavelength
|
staticconstexpr |
Maximum wavelength for wavelength conversion.
Definition at line 586 of file MRcolorTpl.hpp.
◆ RGBluminanceWeightR
|
staticconstexpr |
Definition at line 591 of file MRcolorTpl.hpp.
◆ RGBluminanceWeightG
|
staticconstexpr |
Definition at line 592 of file MRcolorTpl.hpp.
◆ RGBluminanceWeightB
|
staticconstexpr |
Definition at line 593 of file MRcolorTpl.hpp.
The documentation for this class was generated from the following file:
Generated by
1.12.0
