Header for the ramColor class. More...

#include "MRMathCPP.hpp"
#include <algorithm>
#include <array>
#include <bit>
#include <climits>
#include <cmath>
#include <complex>
#include <concepts>
#include <cstring>
#include <iomanip>
#include <iostream>
#include <limits>
#include <span>
#include <sstream>
#include <string>
#include <tuple>
#include <type_traits>
#include <utility>
#include <vector>

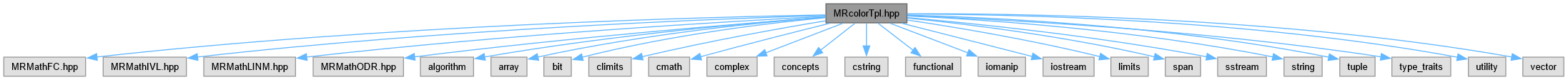

Include dependency graph for MRcolorTpl.hpp:

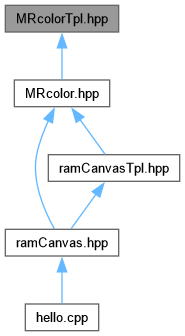

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >
	Template Class used to house colors for ramCanvas objects. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csPLY_tpl< coefs >
	Compute a color from a polynomial space curve in the RGB color space. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csCubeHelix_tpl< start, rots, hue, gamma >
	Compute a color from Dave Green's cubehelix scheme. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csHSLh_tpl< corner >
	Template for HSL color schemes. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csCC_tpl< corners >
	Template providing RGB color cube gradiant color schemes. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csBin_tpl< a, b >
	Binary color scheme. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csFP_tpl< colors >
	Template for fixed size pallets. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csCB_tpl< mx, colors >
	Template for Color Brewer 2 variable sized pallets. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csVarToFixed_tpl< varColorScheme, numClr >
	Wrapper for Color Brewer 2 variable sized pallet template to produce a simple fixed color scheme with a numC member. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::csWS_tpl< colors >
	Template for web safe 216 pallets. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dThaller_tpl< useHSL, maxV, cutDepth, argCuts, absCuts, logAbs >
	Template for Thaller 2D color schemes. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dRichardson< cutDepth, argCuts, absCuts, logAbs >
	Compute a color from Richardson's 2D complex number coloring scheme. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dIdxPalArg< colorScheme, argWrap, cutDepth, argCuts, absCuts, logAbs >
	Compute a color for a point in \(\mathbb{R}^2\) using a discrete color scheme for the phase angle. More...

class	mjr::colorTpl< clrChanT, numChan, redChanIdx, greenChanIdx, blueChanIdx, alphaChanIdx >::cs2dFltPalArg< colorScheme, argWrap, cutDepth, argCuts, absCuts, logAbs >
	Compute a color for a point in \(\mathbb{R}^2\) using a continuous color scheme for the phase angle. More...

Namespaces
namespace	mjr

Macros
#define	MJR_LOOK_FOR_128_BIT_TYPES MRASTER_OPT_128_INT
	Set to 1 to look for 128-bit integer types, and 0 to not look for them.

#define	MJR_INCLUDE_MRcolorTpl

Typedefs
typedef uint64_t	mjr_uintBiggest_t
	The largest unsigned integer supported on the platform.

typedef int64_t	mjr_intBiggest_t
	The largest signed integer supported on the platform.

Functions
template<class clrChanT , int numChan, int redChanIdx = -1, int blueChanIdx = -1, int greenChanIdx = -1, int alphaChanIdx = -1> requires ((numChan>0) && // Must have at least 1 chan (std::is_unsigned<clrChanT>::value \|\| std::is_floating_point<clrChanT>::value) && // unsigned integral or floating point (std::is_floating_point<clrChanT>::value \|\| (sizeof(clrChanT) >= 1)) && // If clrChanT int, then must be >= 1 char size (redChanIdx < numChan) && (blueChanIdx < numChan) && (greenChanIdx < numChan) && (alphaChanIdx < numChan) && (((blueChanIdx < 0) && (redChanIdx < 0) && (greenChanIdx < 0)) \|\| ((blueChanIdx >= 0) && (redChanIdx >= 0) && (greenChanIdx >= 0))) && // R, G, & B all non-negative or all negative ((alphaChanIdx < 0) \|\| (redChanIdx >= 0)) && // If A is non-negative, then all non-negative ((redChanIdx < 0) \|\| ((redChanIdx != greenChanIdx) && (redChanIdx != blueChanIdx) && (redChanIdx != alphaChanIdx) && (greenChanIdx != blueChanIdx) && (greenChanIdx != alphaChanIdx) && (blueChanIdx != alphaChanIdx))))
std::ostream &	mjr::operator<< (std::ostream &out, colorTpl< clrChanT, numChan > const &color)
	i/O stream output operator for colorTpl types.

template<class clrChanT , int numChan, int redChanIdx = -1, int blueChanIdx = -1, int greenChanIdx = -1, int alphaChanIdx = -1> requires ((numChan>0) && // Must have at least 1 chan (std::is_unsigned<clrChanT>::value \|\| std::is_floating_point<clrChanT>::value) && // unsigned integral or floating point (std::is_floating_point<clrChanT>::value \|\| (sizeof(clrChanT) >= 1)) && // If clrChanT int, then must be >= 1 char size (redChanIdx < numChan) && (blueChanIdx < numChan) && (greenChanIdx < numChan) && (alphaChanIdx < numChan) && (((blueChanIdx < 0) && (redChanIdx < 0) && (greenChanIdx < 0)) \|\| ((blueChanIdx >= 0) && (redChanIdx >= 0) && (greenChanIdx >= 0))) && // R, G, & B all non-negative or all negative ((alphaChanIdx < 0) \|\| (redChanIdx >= 0)) && // If A is non-negative, then all non-negative ((redChanIdx < 0) \|\| ((redChanIdx != greenChanIdx) && (redChanIdx != blueChanIdx) && (redChanIdx != alphaChanIdx) && (greenChanIdx != blueChanIdx) && (greenChanIdx != alphaChanIdx) && (blueChanIdx != alphaChanIdx))))
bool	mjr::operator!= (colorTpl< clrChanT, numChan > const &color1, colorTpl< clrChanT, numChan > const &color2)
	Inequality operator for colorTpl types.

Detailed Description

Header for the ramColor class.

Author: Mitch Richling https://www.mitchr.me

Copyright

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Definition in file MRcolorTpl.hpp.

Macro Definition Documentation

◆ MJR_LOOK_FOR_128_BIT_TYPES

#define MJR_LOOK_FOR_128_BIT_TYPES MRASTER_OPT_128_INT

Set to 1 to look for 128-bit integer types, and 0 to not look for them.

Right now this only works on GCC & Clang!

Definition at line 60 of file MRcolorTpl.hpp.

◆ MJR_INCLUDE_MRcolorTpl

#define MJR_INCLUDE_MRcolorTpl

Definition at line 5190 of file MRcolorTpl.hpp.

Typedef Documentation

◆ mjr_uintBiggest_t

typedef uint64_t mjr_uintBiggest_t

The largest unsigned integer supported on the platform.

Definition at line 81 of file MRcolorTpl.hpp.

◆ mjr_intBiggest_t

typedef int64_t mjr_intBiggest_t

The largest signed integer supported on the platform.

Definition at line 82 of file MRcolorTpl.hpp.
