1. Introduction

I first came across this strange attractor in Sprott's book "Elegant Automation" where it is the topic of chapter 43 starting on page 311. The simplified equations are:

$\begin{aligned} \frac{d x}{d t} & = y \\ \frac{d y}{d t} & = - x - y z \\ \frac{d z}{d t} & = y^{2} + b z - a \end{aligned}$

Traditional paramater values are: $\begin{aligned} a & = 4 \\ b & = \frac{1}{10} \end{aligned}$

Traditional initial conditions are: $\begin{aligned} x_{0} & = 0 \\ y_{0} & = 2 \\ z_{0} & = 1 \end{aligned}$

This attractor is an attractive one (pun intended):

What inspired me to code up this thing was an illustration on page 315 of Sprott's book showing the intersection of the attractor and the $z = 0$ plain.

2. Algorithms

We can solve this system numerically in much the same way we solved the lorenz system; however, in order to render the intersection of the attractor with the coordinate axis plains we need to tightly control the step size. I have taken a super simple, and slow approach: At each step I expand $Δ t$ until the step is too big, then I shrink it till it is small enough. The code runs fast enough that I have not investigated how optimal this scheme is. ;) Here is what the code looks like:

#include "ramCanvas.hpp"

int main(void) {
  std::chrono::time_point<std::chrono::system_clock> startTime = std::chrono::system_clock::now();
  const int XSIZ = 7680/1;
  const int YSIZ = 4320/1;
  mjr::ramCanvas3c8b theRamCanvasX0(XSIZ, YSIZ, -10, 10, -10, 10);
  mjr::ramCanvas3c8b theRamCanvasY0(XSIZ, YSIZ, -10, 10, -10, 10);
  mjr::ramCanvas3c8b theRamCanvasZ0(XSIZ, YSIZ, -10, 10, -10, 10);
  mjr::ramCanvas3c8b theRamCanvasXY(XSIZ, YSIZ, -10, 10, -10, 10);
  mjr::ramCanvas3c8b theRamCanvasXZ(XSIZ, YSIZ, -10, 10, -10, 10);
  mjr::ramCanvas3c8b theRamCanvasYZ(XSIZ, YSIZ, -10, 10, -10, 10);

  double isectDistToGo = 1e8; /* How long should the curve be for Z0 ? */
  double curveDistToGo = 1e4; /* How long should the curve be for XY, XZ, & YZ? */

  double a = 4.0; /* Equation paramaters */
  double b = 0.1; /* Equation paramaters */
  double x = 0.0; /* Initial  conditions */
  double y = 2.0; /* Initial  conditions */
  double z = 1.0; /* Initial  conditions */

  double targetDist    = 0.025; /* Size of each step on curve */
  int maxNumUpBisect   = 5;     /* Max times we double tDelta to get > targetDist. */
  int maxNumDownBisect = 10;    /* Max times we half tDelta to get < targetDist. */

  /*  Solve the equations..... */
  double tDelta = 1.0;
  double dist = 0.0;
  double xOld = x;
  double yOld = y;
  double zOld = z;
  double Xdelta, Ydelta, Zdelta, movDist;
  while (dist < isectDistToGo) {
    /*  Find tDelta that gets us bigger than targetDist */
    int numUpBisect = 0;
    do {
      tDelta += (2 * tDelta);
      Xdelta = (y) * tDelta;
      Ydelta = (-x-z*y) * tDelta;
      Zdelta = (y*y-a+b*z) * tDelta;
      movDist = sqrt (fabs (Xdelta * Xdelta + Ydelta * Ydelta + Zdelta * Zdelta));
      numUpBisect++;
    } while ((numUpBisect < maxNumUpBisect) && (movDist < targetDist));

    /* Find tDelta that gets us a jump of <targetDist. */
    int numDownBisect = 0;
    do {
      tDelta = tDelta / 2;
      Xdelta = (y) * tDelta;
      Ydelta = (-x-z*y) * tDelta;
      Zdelta = (y*y-a+b*z) * tDelta;
      movDist = sqrt (fabs (Xdelta * Xdelta + Ydelta * Ydelta + Zdelta * Zdelta));
      numDownBisect++;
    } while ((numDownBisect < maxNumDownBisect) && (movDist > targetDist));

    /* Update and draw */
    dist += movDist;
    x = x + Xdelta;
    y = y + Ydelta;
    z = z + Zdelta;
    if (dist < curveDistToGo) {
      theRamCanvasXY.drawPoint(x, y, mjr::ramCanvas3c8b::colorType::cornerColorEnum::WHITE);
      theRamCanvasXZ.drawPoint(x, z, mjr::ramCanvas3c8b::colorType::cornerColorEnum::WHITE);
      theRamCanvasYZ.drawPoint(y, z, mjr::ramCanvas3c8b::colorType::cornerColorEnum::WHITE);
    }
    if(z*zOld<=0.0) {
      if (z < 0) {
        theRamCanvasZ0.drawPoint((x+xOld)/2.0, (y+yOld)/2.0, theRamCanvasZ0.getPxColor((x+xOld)/2.0, (y+yOld)/2.0).setC0(255));
      } else {
        theRamCanvasZ0.drawPoint((x+xOld)/2.0, (y+yOld)/2.0, theRamCanvasZ0.getPxColor((x+xOld)/2.0, (y+yOld)/2.0).setC2(255));
      }
      theRamCanvasZ0.drawPoint((x+xOld)/2.0, (y+yOld)/2.0, theRamCanvasZ0.getPxColor((x+xOld)/2.0, (y+yOld)/2.0).setC1(255));
    }
    if(x*xOld<=0.0) {
      if (x < 0) {
        theRamCanvasX0.drawPoint((y+yOld)/2.0, (z+zOld)/2.0, theRamCanvasX0.getPxColor((y+yOld)/2.0, (z+zOld)/2.0).setC0(255));
      } else {
        theRamCanvasX0.drawPoint((x+xOld)/2.0, (y+yOld)/2.0, theRamCanvasX0.getPxColor((y+yOld)/2.0, (z+zOld)/2.0).setC2(255));
      }
      theRamCanvasX0.drawPoint((y+yOld)/2.0, (z+zOld)/2.0, theRamCanvasX0.getPxColor((y+yOld)/2.0, (z+zOld)/2.0).setC1(255));
    }
    if(y*yOld<=0.0) {
      if (y < 0) {
        theRamCanvasY0.drawPoint((x+xOld)/2.0, (z+zOld)/2.0, theRamCanvasY0.getPxColor((x+xOld)/2.0, (z+zOld)/2.0).setC0(255));
      } else {
        theRamCanvasY0.drawPoint((x+xOld)/2.0, (y+yOld)/2.0, theRamCanvasY0.getPxColor((x+xOld)/2.0, (z+zOld)/2.0).setC2(255));
      }
      theRamCanvasY0.drawPoint((x+xOld)/2.0, (z+zOld)/2.0, theRamCanvasY0.getPxColor((x+xOld)/2.0, (z+zOld)/2.0).setC1(255));
    }
    xOld = x;
    yOld = y;
    zOld = z;
  }

  theRamCanvasXY.writeTIFFfile("attracting_torus_shadowXY.tiff");
  theRamCanvasXZ.writeTIFFfile("attracting_torus_shadowXZ.tiff");
  theRamCanvasYZ.writeTIFFfile("attracting_torus_shadowYZ.tiff");
  theRamCanvasZ0.writeTIFFfile("attracting_torus_shadowZ0.tiff");
  theRamCanvasX0.writeTIFFfile("attracting_torus_shadowX0.tiff");
  theRamCanvasY0.writeTIFFfile("attracting_torus_shadowY0.tiff");

  std::chrono::duration<double> runTime = std::chrono::system_clock::now() - startTime;
  std::cout << "Total Runtime " << runTime.count() << " sec" << std::endl;

  return 0;
}

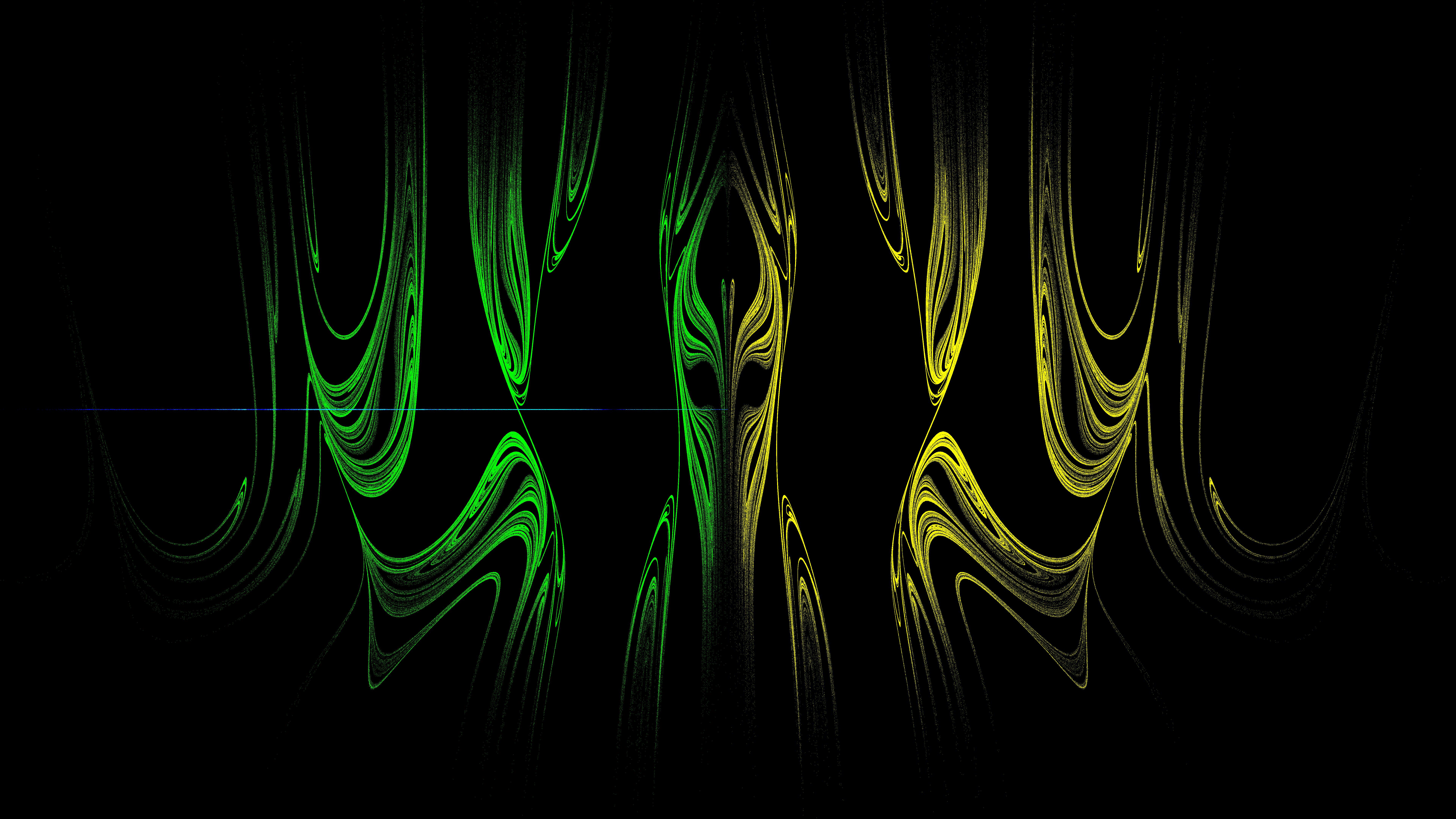

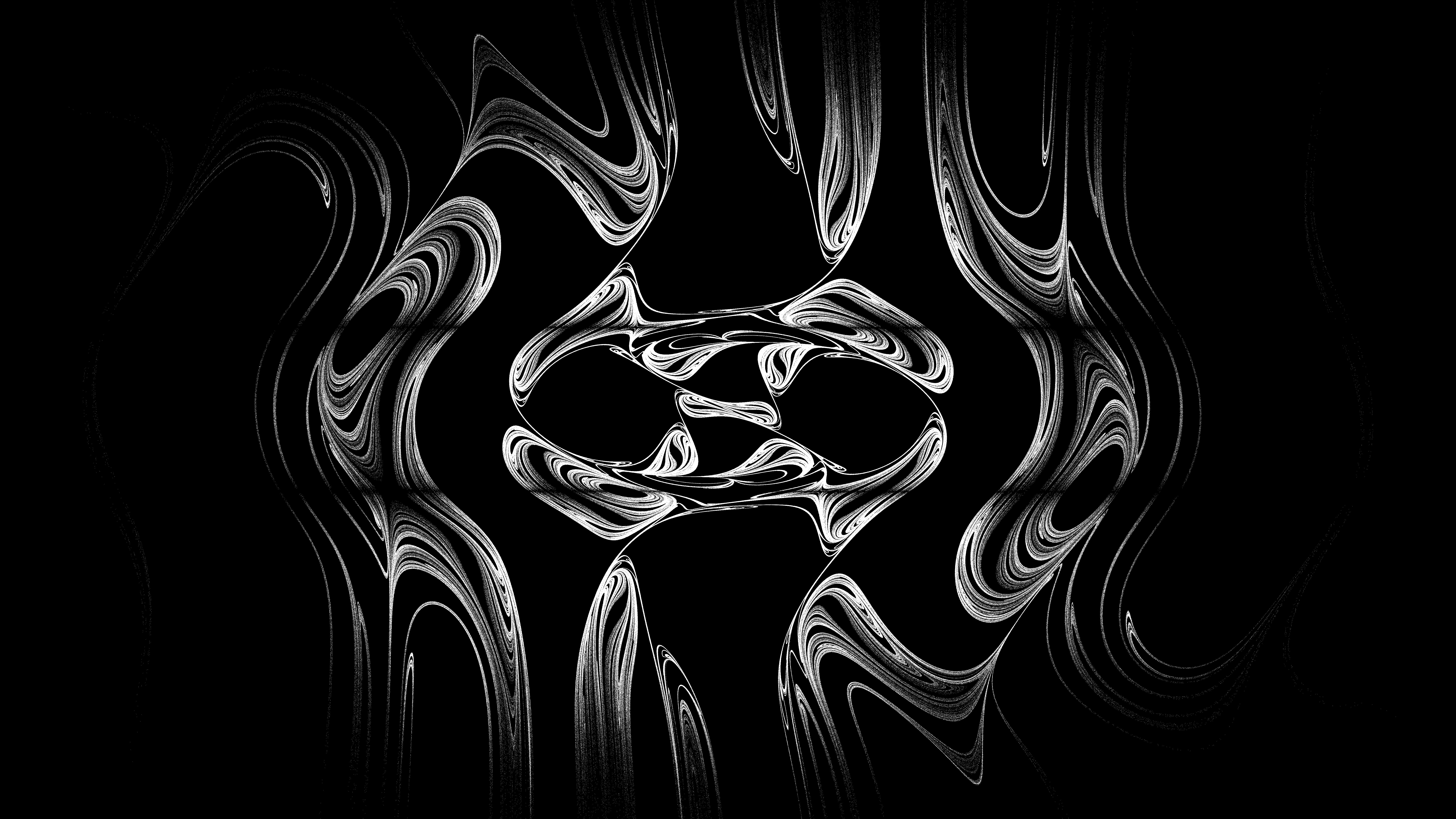

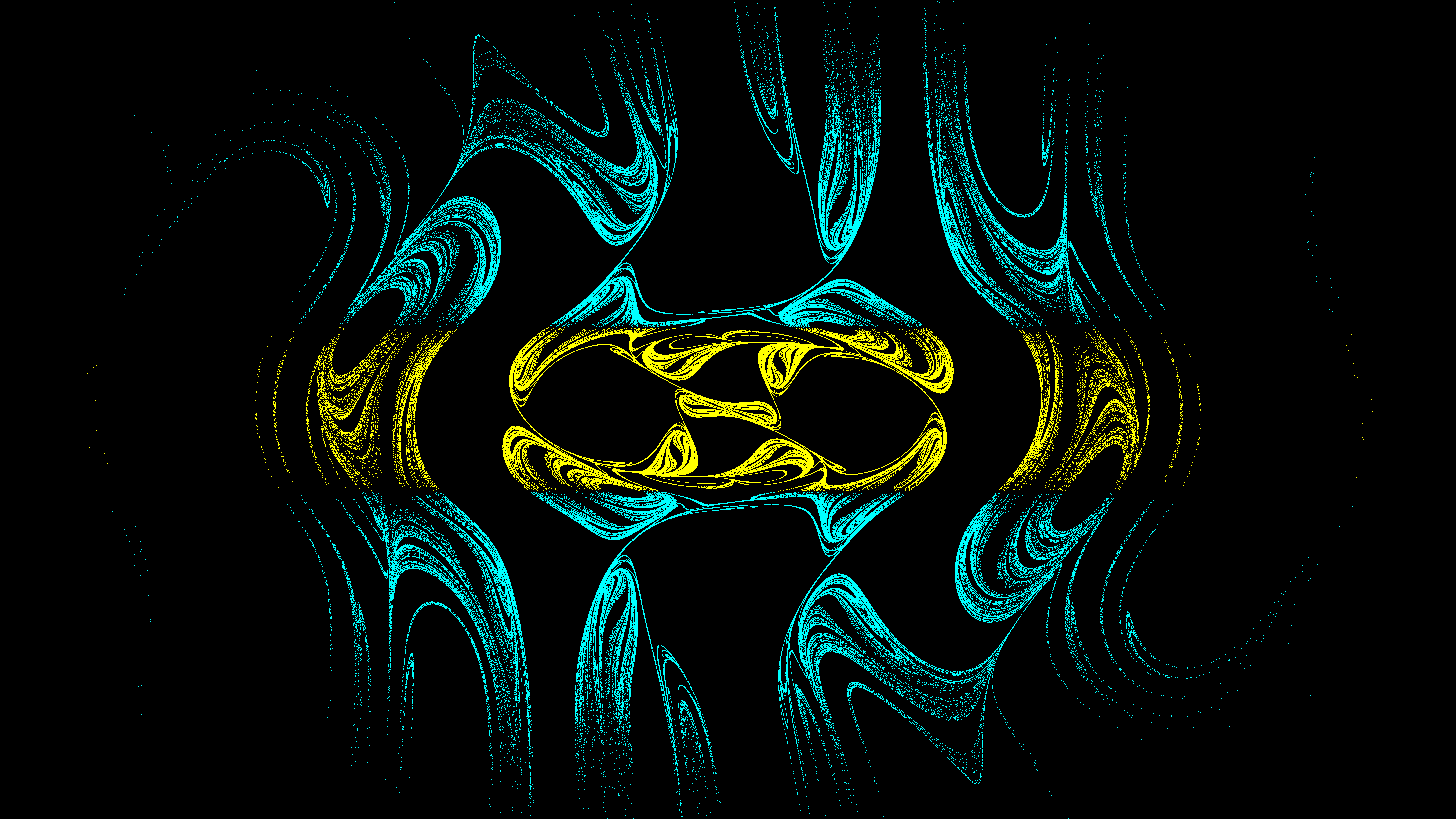

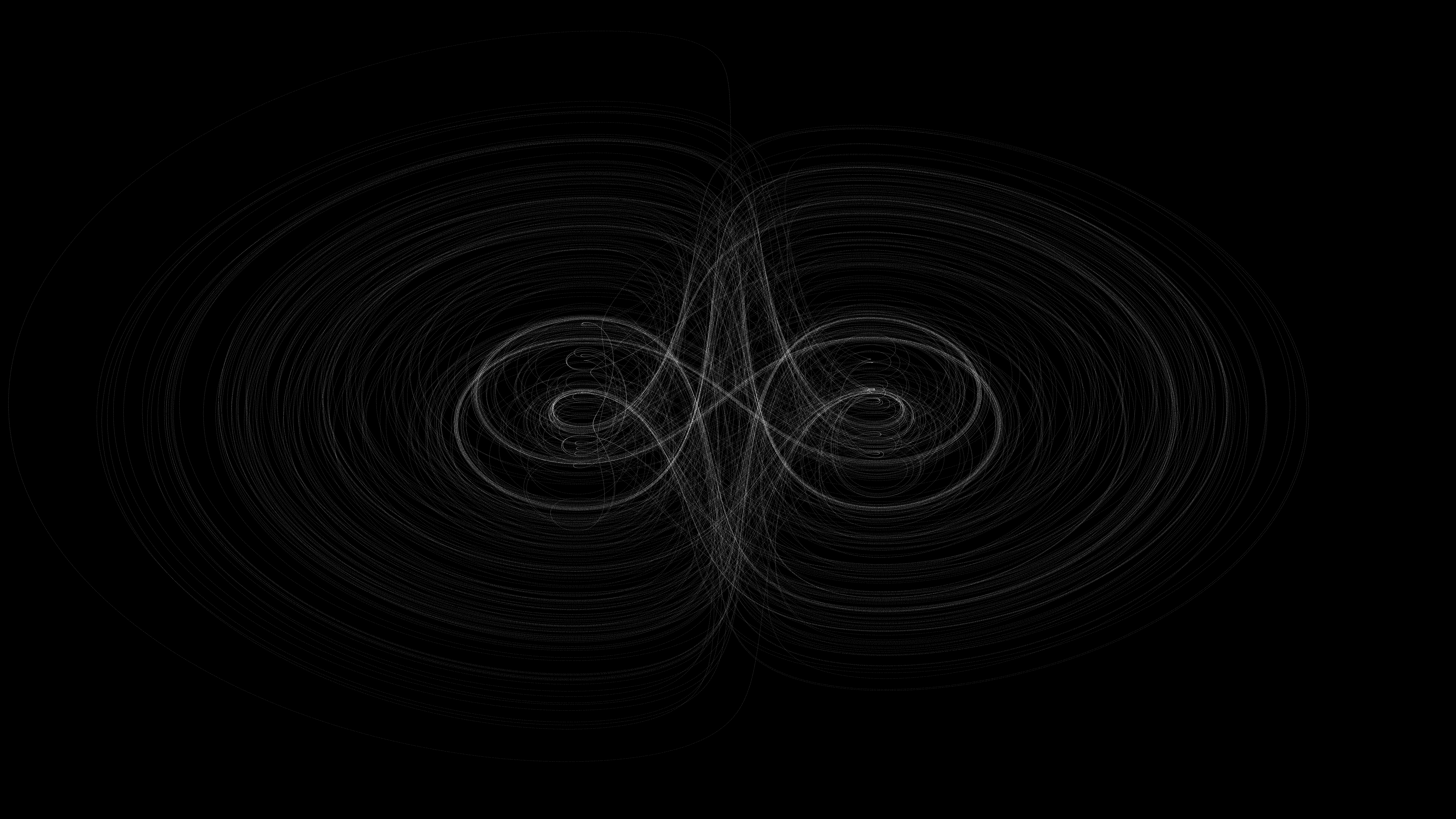

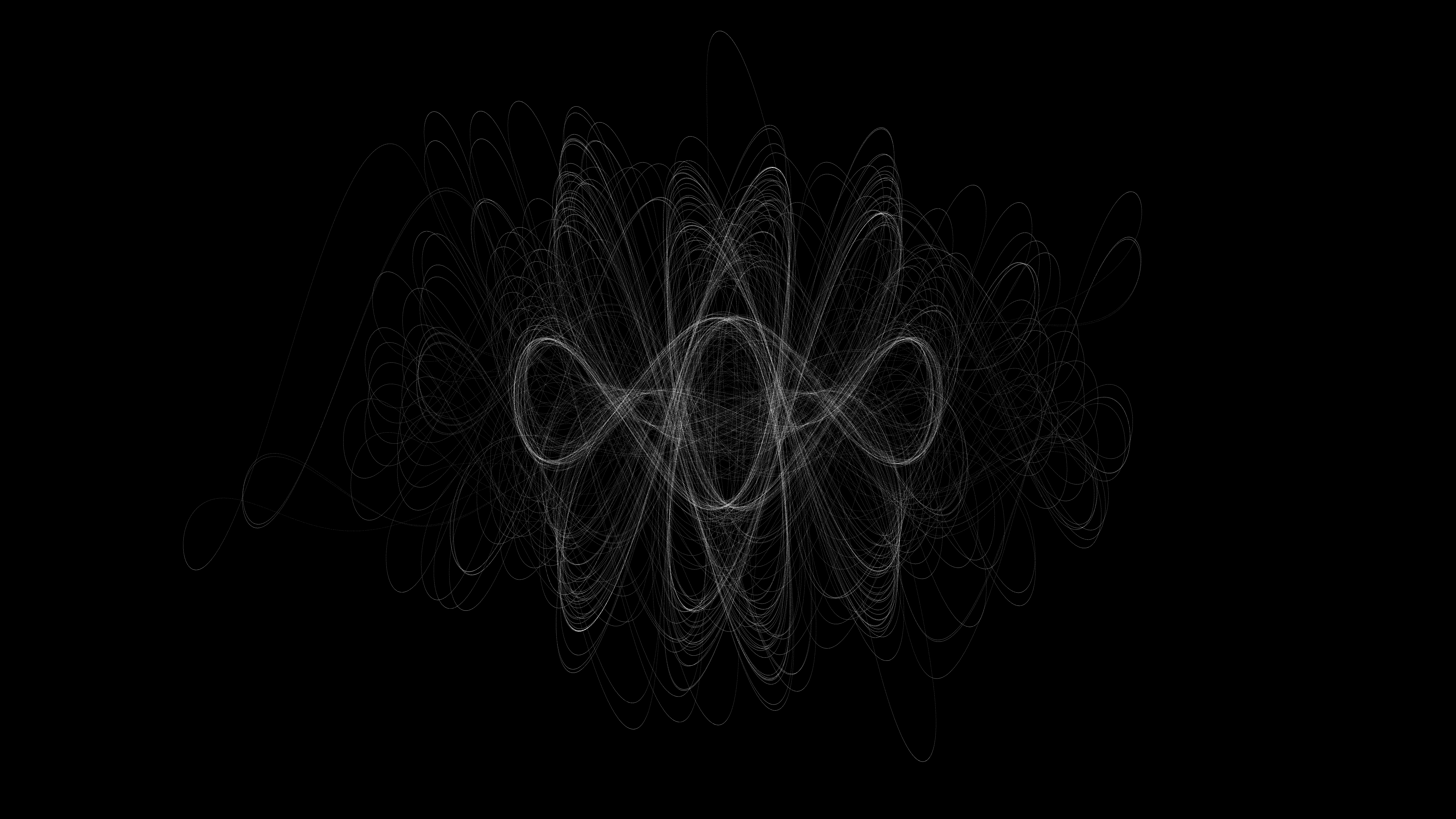

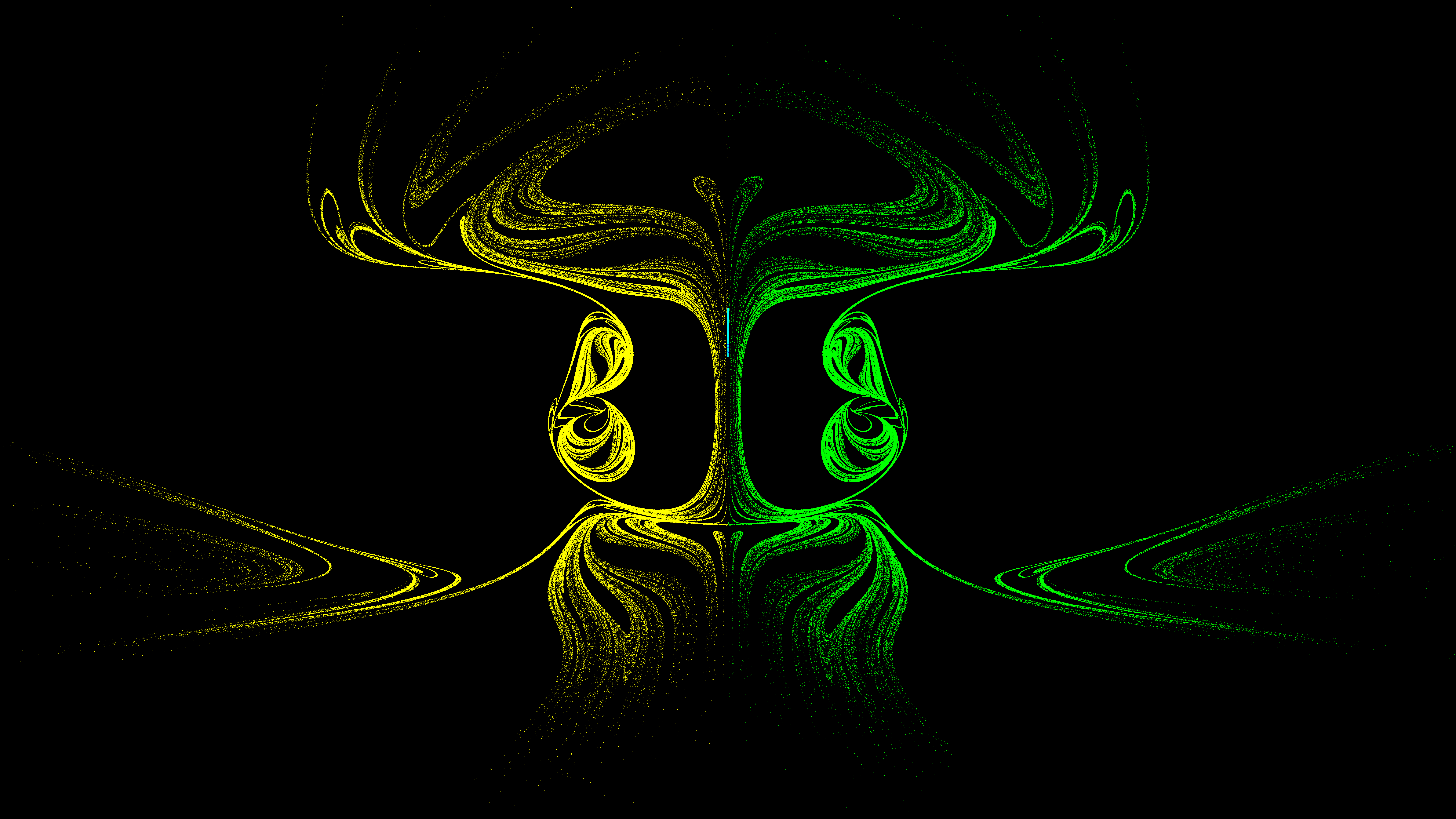

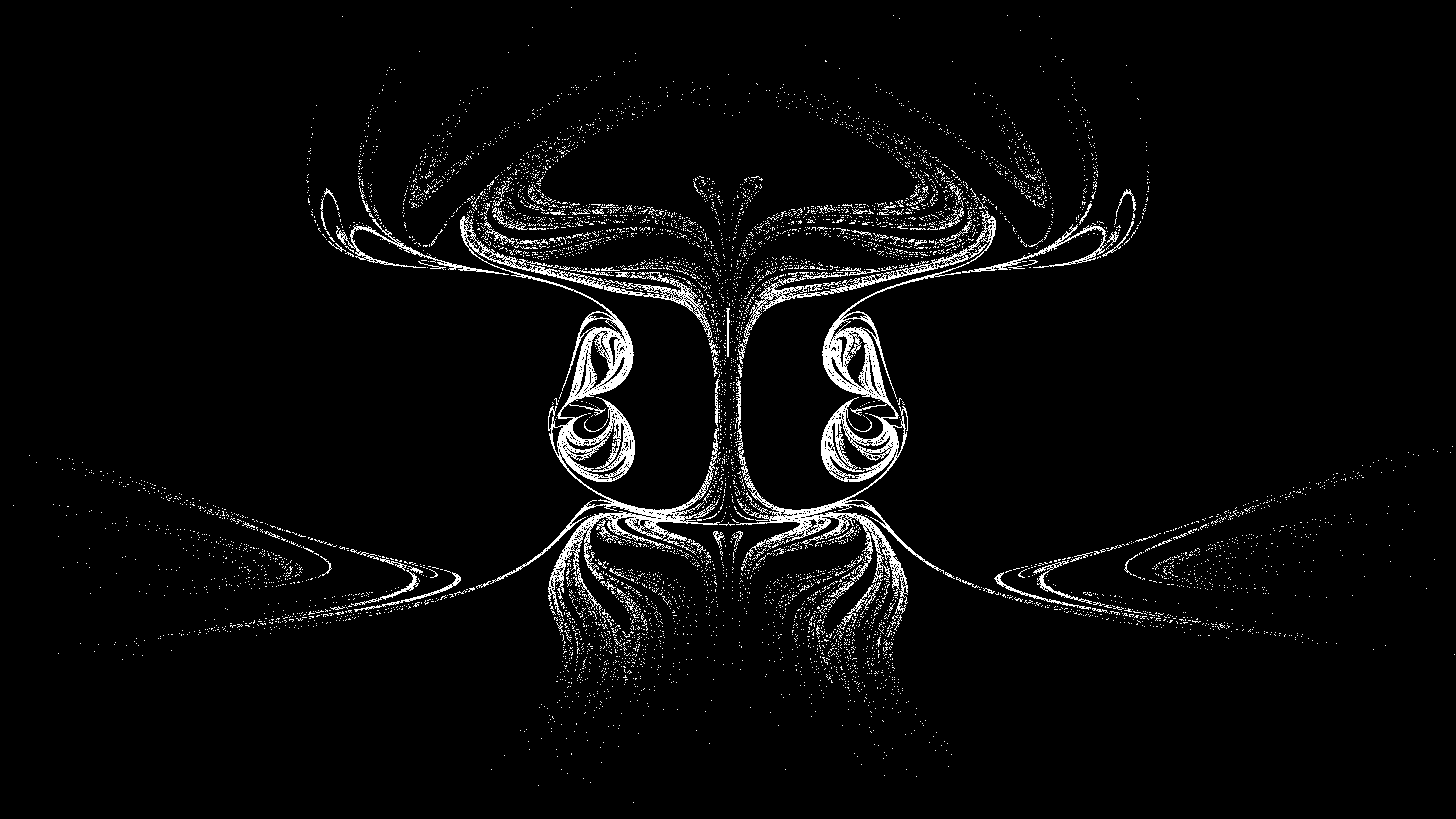

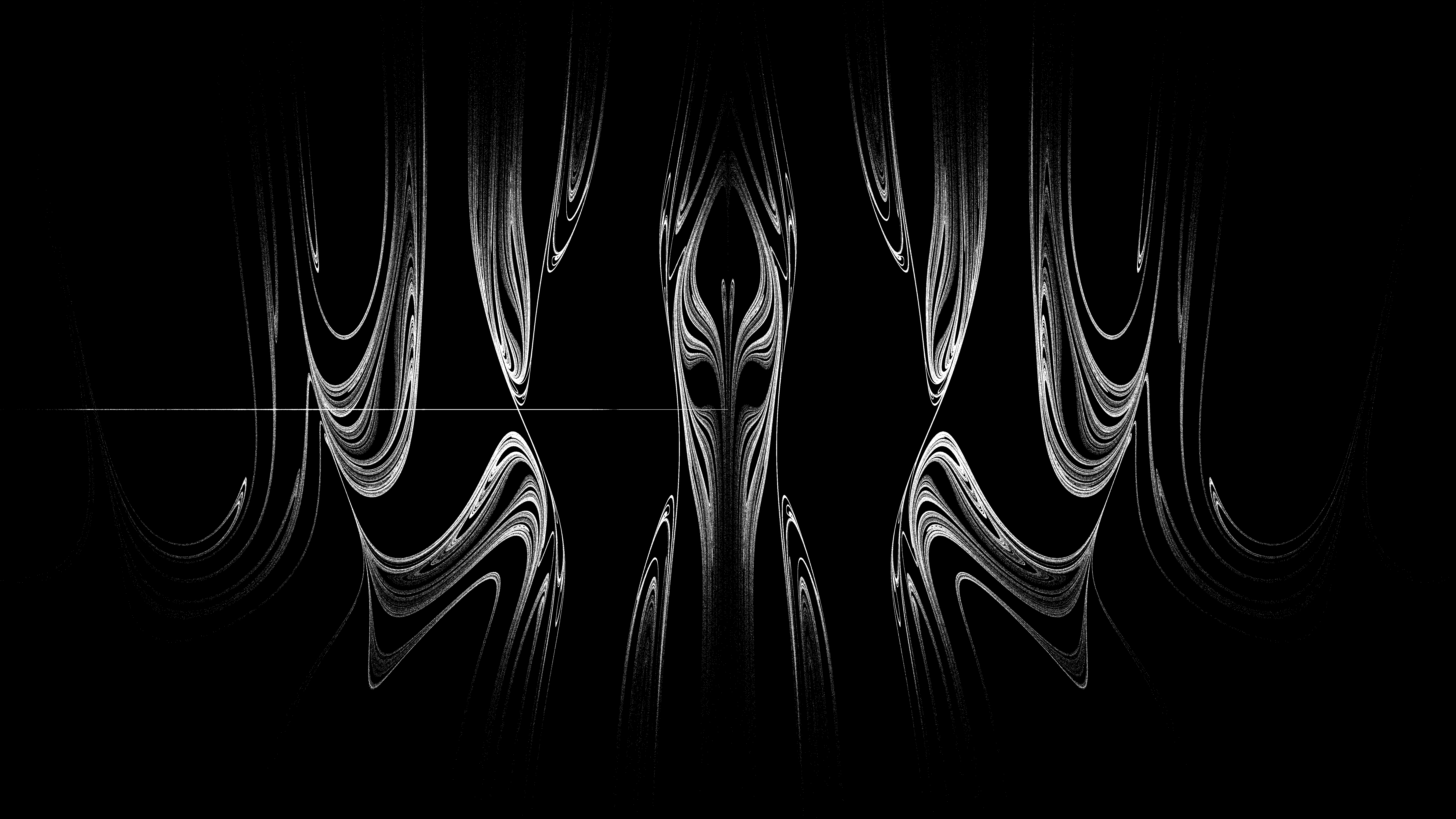

The above program will generate the following pictures:

3. A Movie

Now that we can see what the intersection looks like for $z = 0$ , how about a movie of the intersection of a plane moving up and down parallel to that plain? Here is the code:

#include "ramCanvas.hpp"

int main(void) {
  std::chrono::time_point<std::chrono::system_clock> startTime = std::chrono::system_clock::now();
  const int XSIZ = 7680/4;
  const int YSIZ = 4320/4;

  const int    NUMFRM = 120; /* Number of movie frames */

  const double zLevStart = -4.0;
  const double zLevEnd   =  4.0;

  const double isectDistToGo = 5e7; /* How long should the curve be for Z0 ? */

  const double a = 4.0; /* Equation paramaters */
  const double b = 0.1; /* Equation paramaters */

  const double x0 = 0.0; /* Initial  conditions */
  const double y0 = 2.0; /* Initial  conditions */
  const double z0 = 1.0; /* Initial  conditions */

  const double targetDist    = 0.025; /* Size of each step on curve */
  const int maxNumUpBisect   = 5;     /* Max times we double tDelta to get > targetDist. */
  const int maxNumDownBisect = 10;    /* Max times we half tDelta to get < targetDist. */

# pragma omp parallel for schedule(static,1)
  for(int frame=0; frame<NUMFRM; frame++) {
    std::chrono::time_point<std::chrono::system_clock> frameStartTime = std::chrono::system_clock::now();
    mjr::ramCanvas3c8b theRamCanvas(XSIZ, YSIZ, -10, 10, -10, 10);
    double zLev = zLevStart + frame*(zLevEnd-zLevStart)/(NUMFRM-1);

    /*  Solve the equations..... */
    double x = x0;
    double y = y0;
    double z = z0;
    double tDelta = 1.0;
    double dist = 0.0;
    double xOld = x;
    double yOld = y;
    double zOld = z;
    double Xdelta, Ydelta, Zdelta, movDist;
    while (dist < isectDistToGo) {
      /*  Find tDelta that gets us bigger than targetDist */
      int numUpBisect = 0;
      do {
        tDelta += (2 * tDelta);
        Xdelta = (y) * tDelta;
        Ydelta = (-x-z*y) * tDelta;
        Zdelta = (y*y-a+b*z) * tDelta;
        movDist = sqrt (fabs (Xdelta * Xdelta + Ydelta * Ydelta + Zdelta * Zdelta));
        numUpBisect++;
      } while ((numUpBisect < maxNumUpBisect) && (movDist < targetDist));

      /* Find tDelta that gets us a jump of <targetDist. */
      int numDownBisect = 0;
      do {
        tDelta = tDelta / 2;
        Xdelta = (y) * tDelta;
        Ydelta = (-x-z*y) * tDelta;
        Zdelta = (y*y-a+b*z) * tDelta;
        movDist = sqrt (fabs (Xdelta * Xdelta + Ydelta * Ydelta + Zdelta * Zdelta));
        numDownBisect++;
      } while ((numDownBisect < maxNumDownBisect) && (movDist > targetDist));

      /* Update and draw */
      dist += movDist;
      x = x + Xdelta;
      y = y + Ydelta;
      z = z + Zdelta;
      if((z-zLev)*(zOld-zLev)<=0.0)
        theRamCanvas.drawPoint((x+xOld)/2.0, (y+yOld)/2.0, mjr::ramCanvas3c8b::colorType::cornerColorEnum::WHITE);
      xOld = x;
      yOld = y;
      zOld = z;
    }

    theRamCanvas.writeTIFFfile("attracting_torus_shadowM_" + mjr::fmtInt(frame, 3, '0') + ".tiff");
    std::chrono::duration<double> frameRunTime = std::chrono::system_clock::now() - frameStartTime;
#   pragma omp critical
    std::cout << "Frame " << frame << " of " << NUMFRM << " Runtime " << frameRunTime.count() << " sec" << std::endl;
  }

  std::chrono::duration<double> runTime = std::chrono::system_clock::now() - startTime;
  std::cout << "Total Runtime " << runTime.count() << " sec" << std::endl;

  return 0;
}

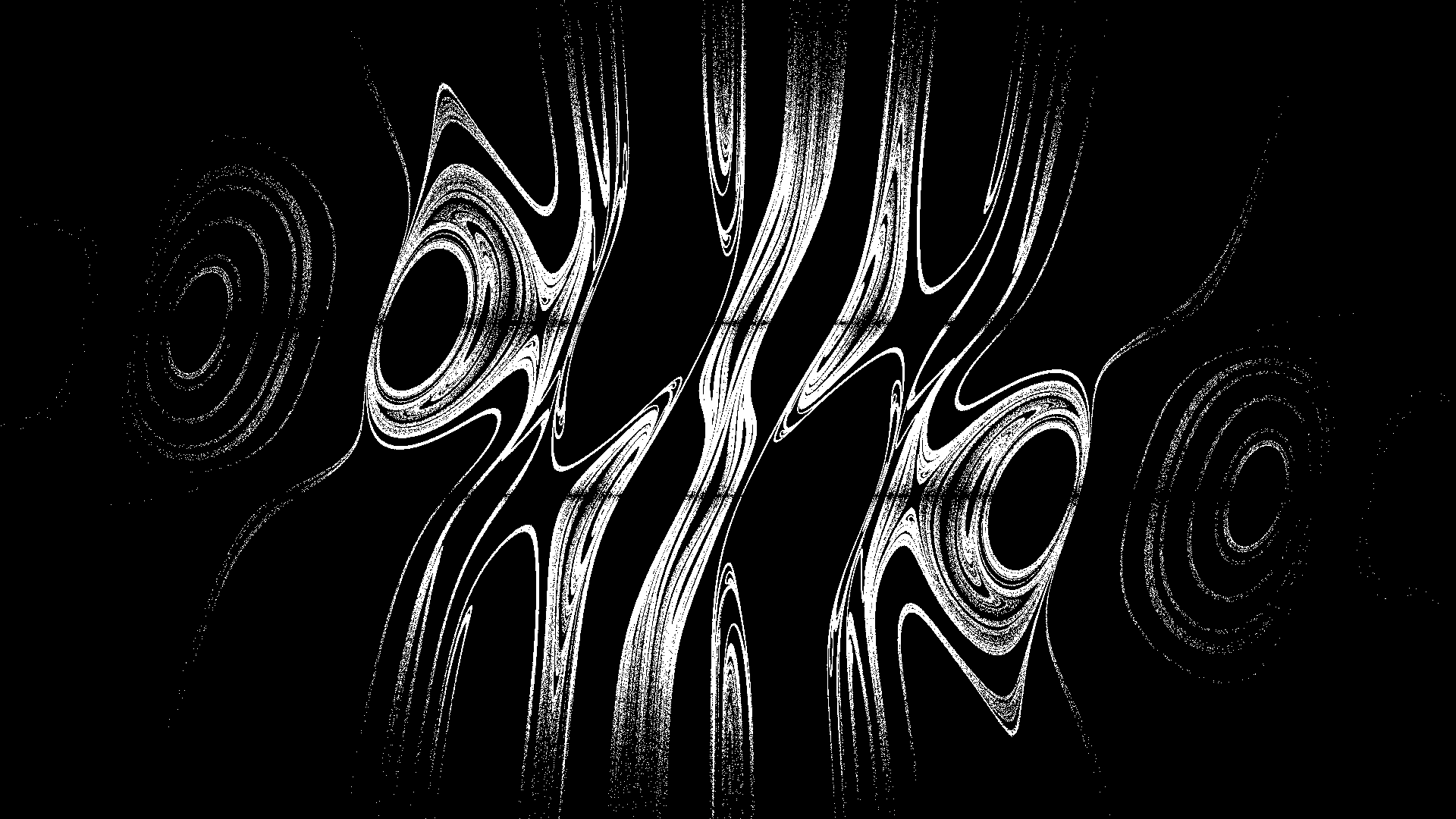

And the result

4. References

Check out the fractals section of my reading list.

All the code used to generate everything on this page may be found on github.
