Provides a TVM solver with functionality similar to modern financial calculators. More...

Functions/Subroutines
subroutine, public	tvm12_solve (n, i, pv, pmt, fv, pmt_time, unknown, status)
	Solve TVM Equation.

subroutine, public	tvm12_print (n, i, pv, pmt, fv, pmt_time, print_out)
	Print TVM Problem (variables and/or table)

Variables
integer(kind=ik), parameter, public	pmt_at_beginning = 1

integer(kind=ik), parameter, public	pmt_at_end = 0

Detailed Description

Provides a TVM solver with functionality similar to modern financial calculators.

Most financial calculators use the following relationship to implement TVM functionality:

\[ 0=PV+(1+i\cdot b)\cdot\frac{PMT}{i}\cdot\left(1-\frac{1}{(1+i)^n}\right)+\frac{FV}{(1+i)^n} \]

This single equation defines several relationships, and can be used to solve a great many different kinds of TVM problems.

The modular approach taken in tvm.f90 and cashflows.f90 is a far more flexible to and powerful way to solve TVM problems; however, the simplicity and familiarity of the classical calculator approach is sometimes more comfortable and direct.

Function/Subroutine Documentation

◆ tvm12_solve()

subroutine, public mrffl_tvm12::tvm12_solve	(	integer(kind=ik), intent(inout)	n,
		real(kind=rk), intent(inout)	i,
		real(kind=rk), intent(inout)	pv,
		real(kind=rk), intent(inout)	pmt,
		real(kind=rk), intent(inout)	fv,
		integer(kind=ik), intent(in)	pmt_time,
		integer(kind=ik), intent(in)	unknown,
		integer(kind=ik), intent(out)	status )

Solve TVM Equation.

Value returned in status:

0 - Everything worked
1 - ERROR(tvm_solve): n==0!
2 - ERROR(tvm_solve): n<0!
3 - ERROR(tvm_solve): Unsupported value for pmt_time (must be one of pmt_at_beginning or pmt_at_end)
4 - ERROR(tvm_solve): Unsupported value for action!
5 - ERROR(tvm_solve): Unable to solve for i
6 - ERROR(tvm_solve): Can not solve for n!
7 - ERROR(tvm_solve): i near -1!
8 - ERROR(tvm_solve): i near zero!
9 - Reserved

WARNING: Solving for i is not entirely reliable. Only values between -1 and 1 may be found. Additionally it is possible a solution in that range might not be found.

Parameters

n	Number of compounding periods
i	Interest as a fraction (not a percentage)
pv	Present Value
pmt	Payment
fv	Future Value
pmt_time	Payments at beginning or end of period. Allowed parameters: pmt_at_beginning or pmt_at_end
unknown	The unknown variable to solve for. Allowed parameters: var_pmt var_i, var_n, var_pv, or var_fv.
status	Returns status of computation. 0 if everything worked. Range: 0 & 3001-3032.

Definition at line 94 of file mrffl_tvm12.f90.

References i_slv_func(), mrffl_solver::multi_bisection(), pmt_at_beginning, pmt_at_end, mrffl_var_sets::var_fv, mrffl_var_sets::var_i, mrffl_var_sets::var_n, mrffl_var_sets::var_pmt, mrffl_var_sets::var_pv, and mrffl_config::zero_epsilon.

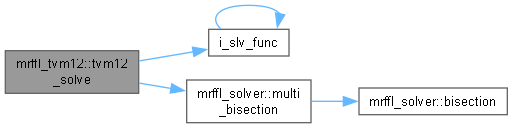

Here is the call graph for this function:

◆ tvm12_print()

subroutine, public mrffl_tvm12::tvm12_print	(	integer(kind=ik), intent(in)	n,
		real(kind=rk), intent(in)	i,
		real(kind=rk), intent(in)	pv,
		real(kind=rk), intent(in)	pmt,
		real(kind=rk), intent(in)	fv,
		integer(kind=ik), intent(in)	pmt_time,
		integer(kind=ik), intent(in)	print_out )

Print TVM Problem (variables and/or table)

Parameters

n	Number of compounding periods
i	Interest as a fraction (not a percentage)
pv	Present Value
pmt	Payment
fv	Future Value
pmt_time	Payments at beginning or end of period. Allowed parameters: pmt_at_beginning or pmt_at_end
print_out	Set made from the following constants: prt_param, prt_table, prt_title
