*MJRCALC* -- Mitch's LISP Mathematical Library

Table Of Contents

What is it?

I have developed a great affinity for using LISP as an interactive mathematical problem solving tool and general algorithm development environment. This has resulted in the accumulation of a good deal of mathematically oriented LISP code over the years, and sharing that code is what this page is all about. So, if you are a mathematically inclined LISPer looking for a particular mathematical routine, then you may well be in the right place -- assuming you have a high tolerance for ugly/buggy LISP and can forgive my unapologetic, raging case of NIH Syndrome!

How do I use it?

First and foremost, I keep a REPL up and running all the time with this code loaded -- makes for a great alternative to those silly GUI calculator applications! Please note the code really is designed for interactive use inside of a smart REPL. I use SLIME+SBCL inside of GNU Emacs.

*MJRCALC* is in no way a replacement for tools like Maple or Mathematica -- I use them both. Instead of trying to do everything with a single, powerful tool, I find my problem solving efficiency is much higher when I use a suite of specialized tools for tasks each is particularly good at, and this is where *MJRCALC* comes into play. I think of it as a bit of glue allowing me to more effectively weave such tools together. In fact, I frequently have several mathematical tools running in the same Emacs session with *MJRCALC*: Octave, Maxima, GAP, Macaulay2, and R. Speaking of weaving systems together, *MJRCALC* can drive GNUPlot through a pipe for simple, immediate visualization. For more sophisticated, interactive visualization, *MJRCALC* can produce VTK files for tools like VisIt and Paraview -- I really love VisIT. For less immediate visualization needs, *MJRCALC* can also generate files for POV-Ray.

What can all of this LISP code do? That's a hard question to answer directly, so I'll just list some of the things I have used it for over the years:

  • Desktop calculator replacement. ;)
  • Development and prototyping of deeply algorithmic and/or mathematical software
  • Numerical analysis
    • linear algebra
    • integration
    • ODEs
    • PDEs
    • Optimization
    • Root finding
  • Dynamical systems modeling and simulation (ODEs, PDEs, and algebraic equations)
    • Efficient solutions to Kepler's equation
    • High speed orbital dynamics (modeling the motion of thousands of solar system bodies)
    • High accuracy integration of planetary systems
    • Large scale particle simulation (Galactic dynamics, fungal growth, fountains, ...)
    • Diffusion simulations
    • Mathematical Population dynamics
  • Symbolic algebra
    • Computational commutative algebra (solving polynomial systems, Grobner basis, etc...)
    • Non-numeric root localization
    • Rational and integer roots and critical points
    • Combined symbolic and numerical algorithms
    • Factorization of polynomials over the integers and prime order fields
    • Symbolic differentiation of LISP forms
    • Analytical solution of differential equations
  • Combinatorial enumeration and counting algorithms
    • Most of the 12-fold way
    • Several combinatorial functions
    • Generation of combinatorial objects (sets, cross products, permutations, combinations)
  • Computational group theory
    • Electron orbital mechanics
    • Crystal lattice formation
  • Probabilistic modeling and simulation (complex systems or statistical tests)
  • Sophisticated data visualization problems
  • Project Euler problems

Gallery

Instead of providing a few boring snips of code (for that see the example code in the download section), here are some pretty pictures generated by this code base in conjunction with tools like GNUPlot, VisIt, and POV-Ray.


Theoretical Cloud/Grid/Cluster Computing (Rendered via VisIt)

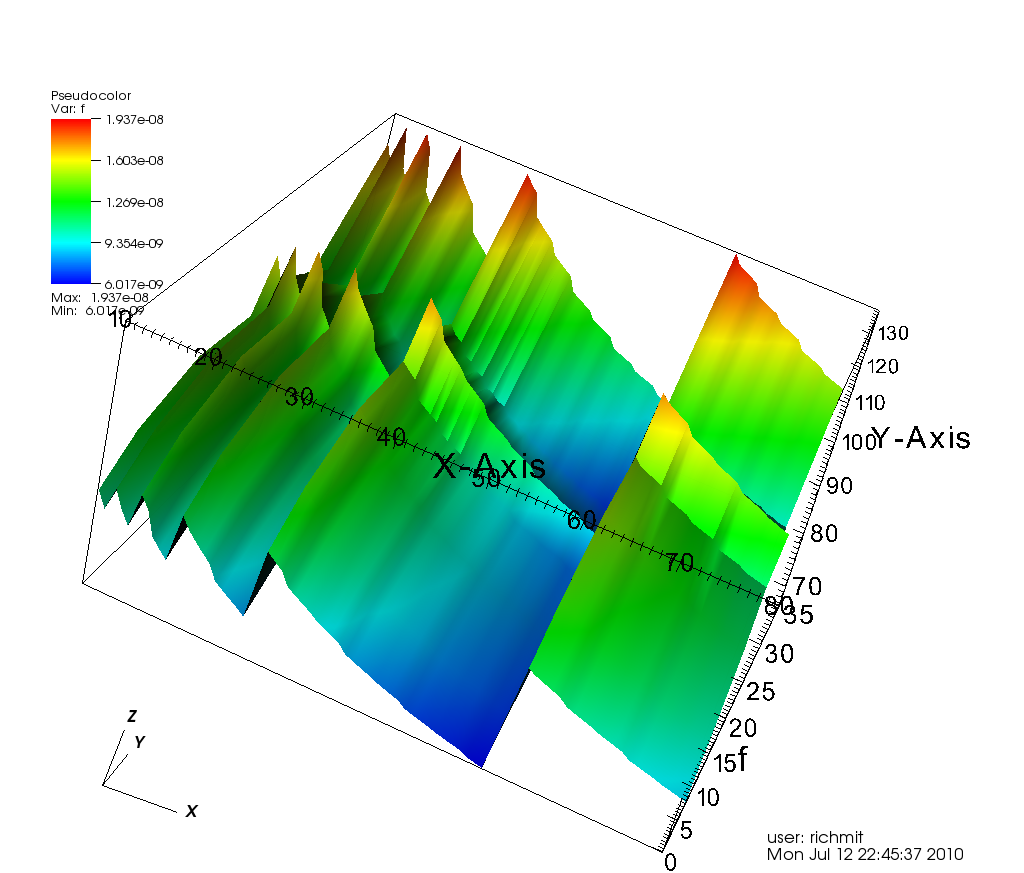

CPU Core Cost Graph CPU Utilization Graph

Differential Equations (Rendered via GNUPlot & VisIt)

Boat Chase Path Example Population Model Solution
Five Lobe 3 Body Solution Three Lobe 3 Body Solution

Optimization (Rendered via VisIt)

Opt Fun: Geo Opt Fun: Beale Opt Fun: Freudenstein-Roth Opt Fun: Banana

Ray Traced Visualization (Rendered via POV-Ray)

PovRay Graph: hdsPln PovRay Graph: hdsSpc PovRay Graph: crv PovRay Graph: knot PovRay Graph: ldswff PovRay Graph: ldswfc PovRay Graph: ldswfl PovRay Graph: wave

Mandelbrot Set Fractals (Rendered via direct image synthesis)

Mandelbrot Set: 2 Mandelbrot Set: 1 Mandelbrot Set Orbit: g Mandelbrot Set Orbit: gl

Newton Fractals (Rendered via direct image synthesis)

Newton Fractal: 1-1 Newton Fractal: 1-2 Newton Fractal: 2-1 Newton Fractal: 2-2 Newton Fractal: 2-3 Newton Fractal: 2-4

Mandelbrot Mountain Fractals (Rendered via VisIt or POV-Ray)

Mandelbrot Set Orbit 3D Mandelbrot Set 3D Visit Mandelbrot Set 3D Pov

Polynomial Interpolation (Rendered via GNUPlot)

Polynomial Interpolation: Runge Points Polynomial Interpolation: Rational Runge-like Points

Orthogonal Polynomials (Rendered via GNUPlot)

Orthogonal Polynomials: chebyshev Orthogonal Polynomials: hermite Orthogonal Polynomials: lagrange Orthogonal Polynomials: laguerre Orthogonal Polynomials: legendre

Random Stuff

Game of Life Central Limit Theorem


Support

Please feel free to contact me if you find a bug, have an idea for an improvement, or just want to chat about implementation details. I can't guarantee I'll be able to act on such feedback in a timely fashion, but I do try very hard to eventually read and respond to all of my mail.

Paid support

Sorry, I don't provide paid support for this product. I have previously accepted contracts for very specific enhancement requests; however, my acceptance has been most strongly influenced by just how interesting the project was and not the cash offer.

Contributed Patches

I hate to say it, but contributed patches are difficult to deal with because of the complexity of copyright and IP law. I would rather get a bug report or enhancement request in plain English than a patch file.

About Quality and Consistency

This code base is an organically growing and evolving project dynamically changing as my work and needs evolve. This has a couple implications. First, this code base will always contain various functions in the middle of being re-factored (i.e. broken) or in the process of being implemented. The second implication is that I freely change things as I recognize dumb API decisions and find opportunities to make the code work better. If you plan on including this code in a long term project, then my advice is to fork the code and then be very careful about updates.

Loading and using the Code in your REPL

The authoritative source for information regarding how to load the code into your LISP is found in the documentation string for the function MJR_META_HELP found in the :MJR_META package (in file lib-meta.lisp). What follows is a brief, perhaps out of date, account of what you can find documented in lib-meta.lisp.

The ASDF Way

If your LISP has a modern (post v3) version of ASDF installed and you have placed the source for *MJRCALC* into one of the places your ASDF looks for packages, then you can simply do the following:

      (load "/full/path/to/where/you/put/*MJRCALC*/sup-lm-asdf.lisp")

Of course you can use the file name, not the full path, if your LISP is in the directory with the *MJRCALC* source. The code in the sup-lm-asdf.lisp file is quite simple. In essence, it runs three functions:

      (require :asdf)
      (asdf:load-system :mjrcalc)
      (mjr_meta::mjr_meta_use-packages :BASE-PATH "/full/path/to/where/you/put/*MJRCALC*/")

The Meta Way

While most users will make use of ASDF, this not a requirement. The :MJR_META package can load the code (and do a whole lot more). If you just want to load everything up and do a use-package on everything, then the following will do the trick:

      (load "/full/path/to/where/you/put/*MJRCALC*/lib-meta.lisp")
      (mjr_meta::mjr_meta_load-packages :BASE-PATH "/full/path/to/where/you/put/*MJRCALC*/")
      (mjr_meta::mjr_meta_use-packages :BASE-PATH "/full/path/to/where/you/put/*MJRCALC*/")

If your LISP is in the directory with the *MJRCALC* code, then you can nix the :base-path argument, and use just the file name in the load call. In fact, if you are in the directory with the *MJRCALC*, then you could simply load up sup-lm-meta.lisp:

      (load "sup-lm-meta.lisp")

This last method is most like the load system used by *MJRCALC* before the conversion to ASDF. So if you have some old code looking for an equivalent to the historical load method, this is where to start.

The Hard Way

If you want to load the stuff up yourself then you will need to be careful of code dependencies. In the following graph the prefix of "MJR_" has been removed. Normal code is blue, and test code is pink. The arrows point in the direction of the dependency (here is a PDF version, and here is one with unit tests).

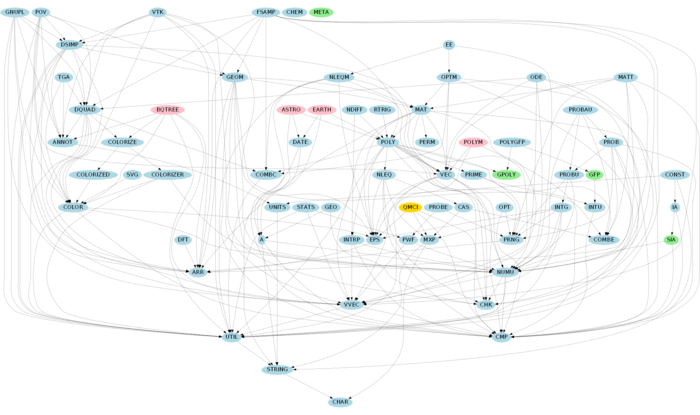

Code File Dependency Graph

Interactive Use

All the functions are contained in packages. All package names begin with the string "MJR_". Following this standard prefix is a tag describing the category of functionality and an underscore. Immediately after this second underscore, is a descriptive name for the function. For example, "MJR_MAT_NORM" is a matrix function computing a norm while "mjr_nleq_root-newton" is a function for "NonLinear EQuations" which finds roots via Newton's method.

Because of this naming structure, tab completion may be used to great advantage both as a way to save typing effort and a way to discover function names. SLIME shows the function argument names in the Emacs message window after the function name and a space are typed at the REPL prompt, so function arguments are somewhat systematically named across packages and are a bit more verbosely named than is usual for LISP code.

All the functions have a comment string, so you can use LISP's documentation system to learn about them. Most packages have a "help" function, mjr_nleq_help for example, which will dump its own documentation string when evaluated -- this string generally contains a description of the package and some information useful for understanding how to use the package. You can also take a look at the comment at the top of each file. The unit tests, linked in the download section below, can be a great help in understanding what the functions are intended to do. Finally, several examples linked below may be helpful in understanding how to use the library.

Legal Stuff

All materials available from this website is copyright protected © 1990-2015 by Mitch Richling.

This software, *MJRCALC*, is licensed under a BSD-like license. You can find it in the LICENSE.TXT file in the distribution. The content of that file is as follows:

/* -*- Mode:text; Coding:us-ascii-unix; fill-column:132 -*- */
The license for this software is as follows:

=======================================================================
Copyright (c) 1994-2015, Mitchell Jay Richling
All rights reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:

1. Redistributions of source code must retain the above copyright
   notice, this list of conditions, and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright
   notice, this list of conditions, and the following disclaimer in
   the documentation and/or other materials provided with the
   distribution.

3. Neither the name of the copyright holder nor the names of its
   contributors may be used to endorse or promote products derived
   from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
=======================================================================



Let me say it again... Under no circumstances and under no legal theory, whether in tort, contract, or otherwise, shall Mitch Richling be liable to you or to any other person for any indirect, special, incidental, or consequential damages of any character including, without limitation, damages for loss of goodwill, work stoppage, computer failure or malfunction, or for any and all other damages or losses.

If you do not agree with these terms, then you must not use the software.

Code Base

The source is on github (github zip file is here).
NOTE: See MANIFEST.txt for check-sums of all the files included in this release.

pre-*.lisp
lib-gfp.lisp (tst-gfp.lisp)
Interactive GF(p) library -- modular arithmatic.
lib-gpoly.lisp
Generate Polynomial Code For General Fields.
lib-meta.lisp
Meta package for working with *MJRCALC* packages.
lib-sia.lisp
Simple Interval Arithmetic (with guess).
use-a.lisp (tst-a.lisp)
Angle (and time-ish) utilities.
use-annot.lisp
Provide data annotation tools -- DSIMP and DQUAD.
use-arr.lisp (tst-arr.lisp)
Array utilities.
use-cas.lisp (tst-cas.lisp)
Very basic computer algebra on :MJR_MXP objects.
use-char.lisp (tst-char.lisp)
Character (ASCII & EBCIDIC) tools.@EOL
use-chem.lisp (tst-chem.lisp)
Chemical element data.
use-chk.lisp (tst-chk.lisp)
Floating point comparison: disaster prevention.
use-cmp.lisp (tst-cmp.lisp)
Floating point comparison: best guess.
use-colorized.lisp
Colorization of discrete spaces (Z_n).
use-colorize.lisp
Interface for :MJR_COLORIZED and :MJR_COLORIZER.
use-colorizer.lisp
Colorization of continuous spaces (R, C, R^2, R^3, C, I, I^2, and I^3).
use-color.lisp (tst-color.lisp)
Color theory (color space conversions and computations).
use-combc.lisp (tst-combc.lisp)
Constructive Combinatorics: Generating combinatorial objects.
use-combe.lisp (tst-combe.lisp)
Enumerative Combinatorics: Counting combinatorial objects.
use-const.lisp (tst-const.lisp)
Physical constants -- with units.
use-date.lisp (tst-date.lisp)
Handy date stuff.
use-dft.lisp (tst-dft.lisp)
DFT and inverse DFT.
use-dquad.lisp (tst-dquad.lisp)
Data sets on QUADrilateral (rectilinear) grids.
use-dsimp.lisp (tst-dsimp.lisp)
Data sets on SIMPlicial complexes.
use-ee.lisp
Electronics Engineering.
use-eps.lisp (tst-eps.lisp)
Floating point comparison: within EPSilon.
use-fsamp.lisp
Sample mathematical functions and create DQUADs and DSIMPs.
use-geo.lisp (tst-geo.lisp)
Geographic and cartographic computations.
use-geom.lisp (tst-geom.lisp)
Computational Geometry.
use-gnupl.lisp
Plotting dquads with GNUPlot.
use-ia.lisp
User interface wrapper for :MJR_SIA.
use-intg.lisp (tst-intg.lisp)
Numerical integration of univariate real functions.
use-intrp.lisp (tst-intrp.lisp)
Polynomial interpolation.
use-intu.lisp (tst-intu.lisp)
Handy integer utilities.
use-mat.lisp (tst-mat.lisp)
Matrix math library.
use-matt.lisp (tst-matt.lisp)
Generate and compute with various test matrices.
use-mxp.lisp (tst-mxp.lisp)
Mathematical eXPressions library.
use-ndiff.lisp (tst-ndiff.lisp)
Numerical differentiation.
use-nleq.lisp (tst-nleq.lisp)
Non-linear equation root finding.
use-nleqm.lisp (tst-nleqm.lisp)
Multiple Non-linear EQuation root location.
use-numu.lisp (tst-numu.lisp)
Numerical utilities.
use-ode.lisp (tst-ode.lisp)
ODE (Ordinary Differential Equation) IVP (Initial Value Problem) solvers.
use-opt.lisp
Univariate function optimization.
use-optm.lisp (tst-optm.lisp)
Multivariate function OPTimization.
use-perm.lisp (tst-perm.lisp)
Permutation group computation.
use-polygfp.lisp
Univariate polynomials over prime order fields -- i.e. GF(p)[x].
use-poly.lisp (tst-poly.lisp)
Polynomials over complex, real, rational, and integers.
use-pov.lisp (tst-pov.lisp)
Produce Povray files!
use-prime.lisp (tst-prime.lisp)
Computational Number Theory.
use-prng.lisp (tst-prng.lisp)
Uniform random deviate generators.
use-probau.lisp (tst-probau.lisp)
Balls And Urns probability distributions.
use-probe.lisp (tst-probe.lisp)
Empirical probability distriubtions.
use-prob.lisp (tst-prob.lisp)
Augments and supports :mjr_probau.
use-probu.lisp
Computations on PDFs (Probability Distribution Functions).
use-qmesh.lisp
Quadrilateral Mesh.
use-rtrig.lisp (tst-rtrig.lisp)
Rational Approximations For Irrational Functions.
use-stats.lisp (tst-stats.lisp)
Statistics: Averages, histograms, sub-samples, simple linear regression.
use-string.lisp (tst-string.lisp)
String utilities.
use-tga.lisp
Raster image stuff.
use-units.lisp (tst-units.lisp)
Unit conversion tool.
use-util.lisp (tst-util.lisp)
Utilities.
use-vec.lisp (tst-vec.lisp)
Mathematical vectors.
use-vtk.lisp
Write VTK files.
use-vvec.lisp (tst-vvec.lisp)
Virtual vectors.

Support Code

sup-lm-asdf.lisp
Load the code base using ASDF.
sup-lm-meta.lisp
Load the code base without ASDF.
sup-GO_gnuplot.sh
Create a FIFO for GNUPlot. Modify this script for your home directory and GNUPlot path.

Example Code

exp-BoatGo.lisp
Drug smuggler boat path
exp-ClassicOptBanana.lisp
Analysis of the classic Rosenbrock banana optimization test function.
exp-ClassicOptBeale.lisp
Analysis of the classic Beale optimization test function.
exp-ClassicOptFreudensteinRoth.lisp
Analysis of the classic Freudenstein-Roth optimization test function.
exp-CLT.lisp (exp-CLT-AUX-SMD.R exp-CLT-IN-SMD.csv)
Theoretical family of probability distributions of sums of an input PDF represented as a historgram.
exp-compareComplexFunction.lisp (exp-compareComplexFunction-AUX-maxima.session exp-compareComplexFunction-AUX-maxima.session.gui)
Compare the value of a function in Maxima vs on in *MJRCALC*.
exp-ComplexFunctionViz.lisp
Complex function visualization via VTK files.
exp-dXXXX.lisp
Example for :MJR_DQUAD.
exp-Euler.lisp
Solutions to Project Euler Problems.
exp-FixedPointItr.lisp
Some :MJR_NLEQ examples.
exp-Gravity2D.lisp
Demonstrate the danger of assuming everything is a sphere in gravity problems.
exp-Gravity3D.lisp
Difference between two gravitational systems with the same total mass.
exp-IntFactors.lisp
For the integers n in [1,72], list the first integer such that it has n unique divisors.
exp-IntrpMitch.lisp
Error Interpolating Runge's Function with Mitch Nodes of the First Kind vs Chebyshev Nodes.
exp-IntrpRunge.lisp
Demonstrate how adding more interpolation poitns may lead to worse fit.
exp-Kepler.lisp
Draw Newton-like fractal and output to a TGA file.
exp-Life.lisp (exp-Life-IN-gardenofeden.rle exp-Life-IN-max.rle exp-Life-IN-P110.rle exp-Life-IN-P177.rle
    exp-Life-IN.rle)
Read in a life RLE file, and iterate (dumping a TGA at each step) until the pattern cycles.
exp-MandelbrotOrbit.lisp (exp-MandelbrotOrbit-AUX.pov)
Compute Mandelbrot set, and dump it to a TGA file using unique coloring scheme.
exp-MandelbrotPot.lisp (exp-MandelbrotPot-AUX.pov)
Draw the potential of the mandelbrot set.
exp-MandelbrotTGA.lisp
Compute Mandelbrot set, and dump it to a TGA file using a nice pallet.
exp-MandelbrotVTK.lisp
Draw the Mandelbrot set, and save it as a VTK file.
exp-marsden-ch3sec3ex17.lisp
Solving a vector calculus problem.
exp-Newton2.lisp
Modified Newton's method fractals colored with the arg of the 20'th iterate.
exp-Newton.lisp
Draw Newton fractal and output to a TGA file.
exp-ODEalgCmp.lisp
Solve a simple ODE, and plot the results.
exp-ODEcannon.lisp (exp-ODEcannon-AUX-crv.session exp-ODEcannon-AUX-crv.session.gui)
Cannon shot simulation.
exp-ODEcircle.lisp (exp-ODEcircle-AUX.session exp-ODEcircle-AUX.session.gui)
Example of an ODE plot.
exp-ODElorenzDEQ.lisp (exp-ODElorenzDEQ-AUX.pov exp-ODElorenzDEQ-AUX.session exp-ODElorenzDEQ-AUX.session.gui)
Compute (with :MJR_ODE) and draw the Lorenz strange attracter.
exp-ODElorenzEuler.lisp
Compute and draw the Lorenz strange attracter without :MJR_ODE..
exp-ODEpopulationCompete.lisp (exp-ODEpopulationCompete-AUX.session exp-ODEpopulationCompete-AUX.session.gui)
Plot the direction field for an ODE of two competing populations.
exp-ODErossler.lisp
Compute the Rossler strange attracter.
exp-ODEthreeBody.lisp (exp-ODEthreeBody-AUX-FIVELOBE.session exp-ODEthreeBody-AUX-FIVELOBE.session.gui exp-ODEthreeBody-AUX-THREELOBE.session exp-ODEthreeBody-AUX-THREELOBE.session.gui)
A famous 3-body problem.
exp-OrthoPolys.lisp
Draw several sets of orthogonal polynomials.
exp-PiPrime.lisp
Find primes who's quotient approximates pi. We want the smallest primes for any given accuracy.
exp-PiRandom.lisp
Approximate pi with random numbrs.
exp-PolyLegendreRoots.lisp
Compute the nodes for Gauss-Legendre integration with high accuracy.
exp-PovGraphs.lisp (exp-PovGraphs-AUX-crv.pov exp-PovGraphs-AUX-hdsPln.pov exp-PovGraphs-AUX-hdsSpc.pov exp-PovGraphs-AUX-knot.pov
    exp-PovGraphs-AUX-ldswfc.pov exp-PovGraphs-AUX-ldswff.pov exp-PovGraphs-AUX-ldswfl.pov exp-PovGraphs-AUX-sphere.pov exp-PovGraphs-AUX-spiral.pov exp-PovGraphs-AUX-wacky.pov)
Some graphs with Povray -- using general p.pov-like code.
exp-PovMixRes.lisp (exp-PovMixRes-AUX.pov exp-PovMixRes-AUX.pov~)
How to draw a surface with a grid at one scale, and lines at another.
exp-PovWaveGraph.lisp (exp-PovWaveGraph-AUX.pov)
Generate a height field TGA and image map TGA file for a PovRay render.
exp-PrimePairs.lisp
Find composite numbers which are the product of two primes that are a distance of d apart where d in [1, 150].
exp-PrimePi.lisp
The prime counting function (pi) and a pair of bounding functions.
exp-ProbNeedle.lisp
Buffon's Needle Problem.
exp-ratTrig.lisp
exp-SwirlyGraph.lisp
Draw a nice and swirly image.
exp-VTKcolorSpace.lisp
Draw the RGB Cube and HSL sphere.

FAQ

I went without a FAQ for *MJRCALC* for a long time. Now that the user community has grown, it seems the time has come to start one up.

Do you really use this as your desktop calculator?
Yes. LISP has great numeric support (one of the best numeric type hierarchies ever developed in any language). I'm an old RPN guy, so prefix notation is very comfortable for me; however, I occasionally use the :MJR_MXP package to enter an expression using infix notation.
You have implemented several algorithms in *MJRCALC* for which better, or standard, implementations already exist. Why?
Any number of reasons.
  • I may have been reading about an algorithm new to me, and wanted to try and implement it. The :MJR_DEQ package is a good example -- the whole thing was written simply because I was reading some really good books on the numerical solution of differential equations!
  • I may have needed some kind of odd functionality not found in the standard algorithms. The :MJR_MAT package is a good example of this -- you don't find many matrix elimination routines capable of using Givens, Householder, and Gauss steps on the same matrix!
  • It could have just been my raging case of NIH Syndrome I mentioned near the top of this page. ;)
Could you integrate *MJRCALC* with MY-FAVORITE-PACKAGE?
I have a rule about strong coupling and dependencies on external code. I don't do it. This is mostly because of the level of effort required to keep up with external libraries -- I want *MJRCALC* to work any place I take it. I don't want to worry about trying to set up some complex environment just to get the code to run. On the other hand, loose coupling is very much a possibility. For example, the :MJR_PRNG allows one to plug in external libraries like the most excellent mt19937 package available via Quicklisp.
Some of the numerical methods are strangely general or non-standard (even at the cost of speed)?
This is very true. It is a feature!! One of the reasons I wrote this library was to provide a test bed for developing new algorithms in numerical analysis -- not just to implement well known algorithms. For example, the :MJR_DEQ library uses plugins for the step methods allowing one to easily test new RK methods. Another example is some of the generic code in :MJR_MAT allowing matrix elimination using a mix of Givens, Householder, and Gauss steps. When I need a standard solver and I care about performance or size, then I generally use one of the many high quality libraries available (NetLib is your friend!)
Can I use *MJRCALC* in a commercial product?
Sure so long as you follow the license agreement (see the file LICENSE.TXT in the distribution). That said, you should be careful. I don't manage *MJRCALC* like a commercial product with regard to backward compatibility. Note also I generally do not provide any form of commercial support. I have some advice about this in the section above about support.
How is *MJRCALC* licensed?
I use a BSD-like license. You can find it in the LICENSE.TXT file in the distribution. The content of that file is as follows:
/* -*- Mode:text; Coding:us-ascii-unix; fill-column:132 -*- */
The license for this software is as follows:

=======================================================================
Copyright (c) 1994-2015, Mitchell Jay Richling
All rights reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:

1. Redistributions of source code must retain the above copyright
   notice, this list of conditions, and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright
   notice, this list of conditions, and the following disclaimer in
   the documentation and/or other materials provided with the
   distribution.

3. Neither the name of the copyright holder nor the names of its
   contributors may be used to endorse or promote products derived
   from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
=======================================================================



Change Log

By popular request I have finally started publishing some change log excerpts. I think I will only keep the most recent few in this section, and archive the rest in the change log file in the source tree -- which is currently not in the distribution..

2015-11-04
This is the first github release!
2015-10-04
:MJR_ODE and :MJR_DQUAD are now integrated, and all of the ODE examples and unit tests have been updated to reflect the new API. :MJR_DQUAD now has working unit tests -- :MJR_DQUAD and :MJR_DSIMP are starting to resemble production worthy code.
2015-09-28
The most significant API change in this release is in :MJR_VVEC which now supports empty virtual vectors. This change allows direct support for empty products and sums -- i.e. no more special cases spread across the code base. Also new is the inclusion of the ASDF files (the .asd files) in the release tar-ball -- eliminating the need for end users to generate them via the :MJR_META package. Finally, several of the examples have been improved, and a couple new examples are in the works -- more on that in future releases.
2015-09-04
It has only been four days, but here is a new code drop. Quite a bit of cleanup in the code -- things like unused USEs, bad white space, documentation strings, etc. :MJR_PRIME is a bit faster now as I added some code making use of more modern results for prime proofs. The :MJR_NUMU code for encoding floating point numbers is far more sophisticated now -- it really makes sure that single floats are printed for some use cases like VTK. Several of the examples are improved including better RLE parse code for life files, and a new life demo. This is still relatively raw code, so keep an eye open for bugs.
2015-09-02
The big structured data refactor is complete, and now it is time to get out the bug spray!! This is all very fresh code, but I wanted to put it out for early adopters to play with. The experimental packages are still marked pre-: :MJR_DQUAD, :MJR_DSIMP, :MJR_ANNOT, :MJR_FSAMP and :MJR_GNUPL. Note that :MJR_IMG is gone, and the TGA code is now in :MJR_TGA -- most of the image processing stuff is gone, and replaced by the :MJR_DQUAD package. Also gone is the :MJR_PLOT package which has been replaced by the :MJR_GNUPL package. The :MJR_RIRT package has been replaced with :MJR_RTRIG, and this package is now promoted from experimental status. I finally have the new copyright message on all the files. At any rate, give it a go and let me know about the bugs you find.
2015-08-15
The :MJR_DQUAD and :MJR_DSIMP packages have been fleshed out -- almost production worthy. The :MJR_PLOT package has been replaced by :MJR_GNUPL. This new library simply graphs DQUAD objects. The :MJR_VTK and :MJR_POV packages are close to done, and have both been simplified down so that they only work with DQUAD and DSIMP objects. All of these packages worked with mathematical functions directly before, but now they consume DQUADs and DSIMPs. A new package links everything together with the older functionality: the :MJR_FSAMP package. This package samples mathematical functions and produces DQUAD and DSIMP objects. This makes visualization more modular, and exposes the visualization pipeline to the user -- opening up quite a bit of interesting functionality. A few changes outside of the refactor have occurred too. :USE_POLY has a new function: MJR_POLY_MAHLER-MEASURE, and has had a bug fixed in MJR_POLY_ROOT-SOLVE-SEARCH-DEFLATE. Lastly, quite a bit of code cleanup across numerous files -- new headers on some files, better doc strings, reformatted comments.
2015-07-18
Added integer partition functions to use-combc.lisp, and cleaned up a bit of code.
2015-07-16
Still making baby steps on the big "dsimp/dquad" refactor. Removed the old gndata interfaces. Added some combinatorial functions and tests.
2015-07-08
Decided to release this a bit early as I have had a few pull requests for the new VTK library. Quite a bit of code has been moved around in preparation for the big "dsimp/dquad" refactor. Povray and VTK support have been completely reworked, but the plot package is still not integrated. Some of the combined plotting examples no longer work -- I'll mop that up when I complete the plot library refactor. New in this update are some prototypes for a few rational approximations to transcendental functions -- useful for things like fast Kepler problem initial values and the like. I haven't fixed the API (or the approximation points) just yet.
2015-02-20
The major focus of this release has been on the development environment for *MJRCALC* more than the code itself. About six years ago I switched SCM systems from SCCS to RCS. About a year ago I started experimenting with git, and this release finally sees the switch over. This change will help in the development process (better change tracking, more sensible group commits, faster merges), and will enable me to eventually put the whole code base out on a public git server. On the down side, packages no longer have version numbers -- git doesn't have them, and I didn't like any of the hacks to fake them. In addition the version number for the entire library *MJRCALC* is now the POSIX time the ASDF files were generated. I still have a manifest file with an SHA1 for each file, but the version numbers are gone.

This release sees a bit of progress on the :MJR_DSIMP, :MJR_DQUAD, and :MJR_ANNOT packages -- they are still a work in progress, and the work to integrate them with :MJR_PLOT, :MJR_VTK, :MJR_POV, and :MJR_IMG has barely started.
2015-02-01
The big focus in this update has been adding ASDF and Quicklisp support. This has seen the creation of the :MJR_META package to do things with the packages in *MJRCALC* like generate ASDF files for packages, the dot code for the package dependency graphs, load tests, and load/use packages. We also see two new support files -- one to load the system using ASDF and one to load it without ADSF support. A bit more work has been done on the gridded and triangulated data packages, and it has become clear these two packages will play a major role for several older packages -- so look for incompatibilities in old code with :MJR_PLOT, :MJR_VTK, :MJR_POV, and :MJR_IMG in the next release.
2015-01-07
New to the package is some support for compiling the source. In addition I have added a better way to manage loading packages in early testing states (pre-production or beta packages). Also added is the beginning of the next "big idea" that will touch many packages -- a formal set of constructs for handling gridded and triangulated data sets. Look for more over the next few months..
2015-01-01
This update has been in the works for almost 6 months. The focus was a major refactoring of the overall design of the library. Some packages were broken into multiple packages while others were combined into one. Even packages that remained relatively untouched had the source file name changed. Of course this means the package dependency graph is completely different than before. Many functions have been moved and/or renamed as well. I expect a few of the example programs may be broken, so let me know if you find any bugs. While the primary focus was the refactor, some new functionality was added in the form of virtual vectors (:MJR_VVEC). This concept has managed to make its way into almost every aspect of the library and touches a great many packages -- with more to come.
© 2009 Mitch Richling
